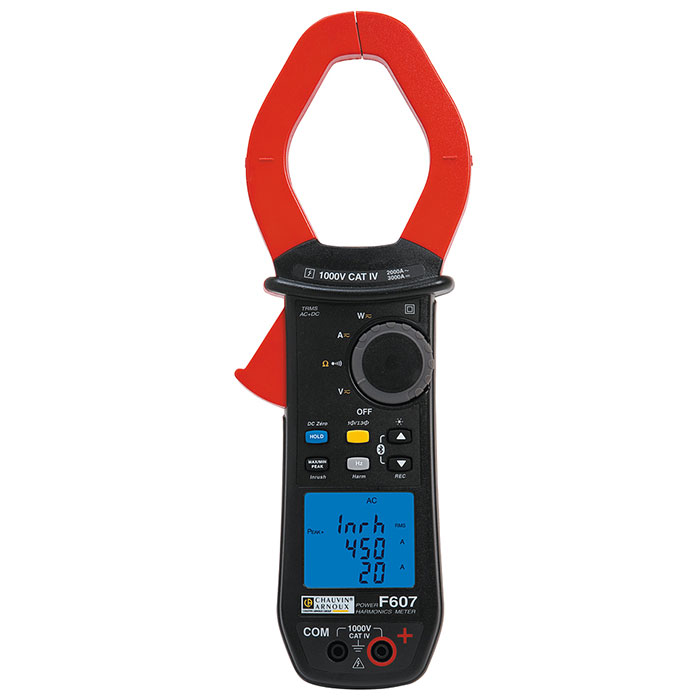

Chauvin Arnoux F607 Harmonic Clamp Meter

Be the first to review this product

  • True RMS Multifunctional clamp
  • Measures current, voltage, power values, harmonics to the 25th order & more
  • Records data, features Bluetooth connectivity

rrp £490.00

now £465.00 (Ex. VAT) £558.00 (Inc. VAT)

rrp £490.00

OR

Please select a free gift below.

"Multifunctional clamp with True RMS measurement and harmonics to the 25th order"

  • Description

    Chauvin Arnoux F607 Harmonic Clamp Meter

    Perfect for current and voltage measurement as well as power values, harmonics and more, the Chauvin Arnoux F607 Harmonic Clamp Meter is a truly versatile multifunctional clamp.

    With a 12-bit True RMS digital acquisition system, the Chauvin Arnoux F607 measures current levels to 2000A AC and 3000A DC, AC/DC voltage to 1000V, W/VA/var, pf and DPF power values, THD-f and THD-r, harmonics to the 25th order, resistance and continuity with audible tone and true InRush current.

    Featuring large 60mm jaws and CAT IV connection terminals, the F607 can be attached to a large range of conductors and is ideal for use on switchboards or for LV electricity production and distribution, industry, railways, etc. It is also suitable for lift/elevator technicians and other lifting and transport equipment specialists.

    Providing Automatic AC/DC detection, a large 10,000-count backlit display and a simple-to-use rotary switch for selecting functions, in addition to data recording and bluetooth interface / pc software, the IP54-rated F607 is a user-friendly instrument packed with features.

  • Specification

    • Current (RMS) AC: 2,000A, 1% ±3 pts (best accuracy)
    • Current (RMS) DC and AC+DC: 3,000 Apeak, 1% ±3 pts (best accuracy)
    • Voltage (RMS) AC: 200 mV to 1,000 V, 1% ±3 pts (best accuracy)
    • Voltage (RMS) DC and AC+DC: 200 mV to 1,000 V, 1% ±3 pts (best accuracy)
    • Auto AC/DC: Yes (V and A)
    • Ripple: Yes
    • Resistance: 100 kΩ
    • Continuity/buzzer: Yes (<40 Ω)
    • Power W, var, VA: Yes, single and total three-phase
    • Crest factor (CF): Yes
    • PF and cos ϕ (DPF): Yes / Yes
    • Auto-shutdown: Yes
    • “Hold” function: Yes
    • “Backlighting” function: Yes
    • “Min Max” key: Yes
    • “Peak” +/- function: Yes / Yes
    • True-Inrush function: Yes
    • THD-f / THD-r harmonics function: Yes / Yes
    • Breakdown into harmonic orders: Yes
    • “REC” recording function: Yes
    • Recordings (with Min Max): Up to 3,000 measurements
    • “BT” Bluetooth communication function: Yes
    • “Hz” function: Yes
    • Clamping diameter (mm): Ø 48
    • Mechanical protection: IP54
    • High electrical protection: IEC 61010 – 1,000 V CAT IV
    • Warranty: 3 years
  • Supplied Accessories

    • Chauvin Arnoux F607 Harmonic Clamp Meter
    • 1 Set of Red/Black Banana Leads
    • 1 Set of Red/Black Crocodile Clips
    • 1 Set of Red/Black Test Probes
    • PC Communication Software
    • Operating Manual
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux F407 & F607 Datasheet    Size: (3.07 MB)
