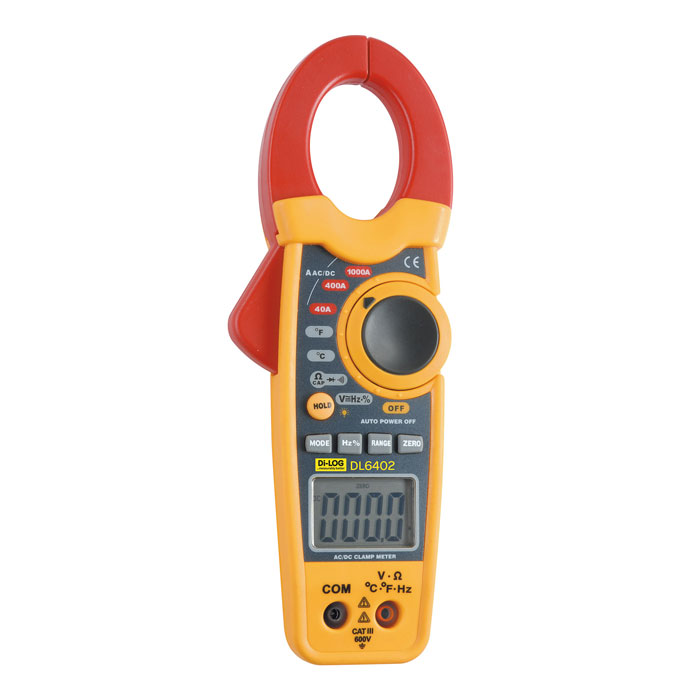

DiLOG DL6402 1000A AC/DC Clamp Meter

SKU: DILOGDL6402
  • Ideal for Solar PV applications
  • Measures AC/DC current to 1000A and AC/DC voltage up to 600V
  • DC current temperature and capacitance reading functionality
More Info
In Stock - Available Next Day

DiLOG DL6402 AC/DC Clamp Meter

Capable of AC/DC current reading to 1000A, the DiLOG DL6402 is a truly versatile all purpose clamp meter, featuring AC/DC voltage up to 600V, DC current temperature and capacitance readings. The DL6402 is often used for solar PV applications up to 1kV.

It’s lightweight and slender design, coupled with its tear-shaped jaws and backlit display, make it ideal for use smaller spaces.

Offering useful features including audible continuity, data hold and peak capture, the DiLOG DL6402 is a great option for anyone looking for a cost effective digital multipurpose clamp.

  • AD/DC current reading (>1000A) and voltage (>600V)
  • Measures DC current temperature and capacitance
  • Tear shaped jaw with 30mm opening
  • Audible continuity
  • Data hold and peak capture functionality
  • Electronic overload protection
  • Backlit display

What's In The Box?

  • Dilog DL6402 1000A AC/DC Clamp Meter
  • 9V battery PP3
Specification

AC voltage

  • Range: 0.1mV - 600V
  • Accuracy: 1.8% ± 3 dgts

DC voltage

  • Range: 0.1mV - 600V
  • Accuracy: 1.5% ± 3 dgts

AC current

  • Range: 0.01A - 1000A
  • Basic Accuracy: 3% ± 5 dgts

DC current

  • Range: 0.01A - 1000A
  • Basic Accuracy: 2.8% ± 5 dgts

Resistance

  • Range: 0.1Ω - 40MΩ
  • Accuracy: 1.5% ± 2 dgts

Capacitance

  • Range: 40.00nF – 100.0uF
  • Accuracy: 3% ± 5 dtgs

Frequency

  • Range: 0.001Hz – 100.0kHz
  • Accuracy: 1.2% ± 2 dgts

Temperature

  • Range: -20°C - 1000°C / -4°F - 1832°F
  • Accuracy: ±3.0 % of rdg ± 5 dgts / ±3.0 % of rdg ± 7 dgts

Diode test

  • 1.5V DC Typical

General

  • Power Supply: 1 x 9V battery PP3 (supplied)
  • Dimensions: 229 x 80 x 49 mm
  • Weight: 303g
