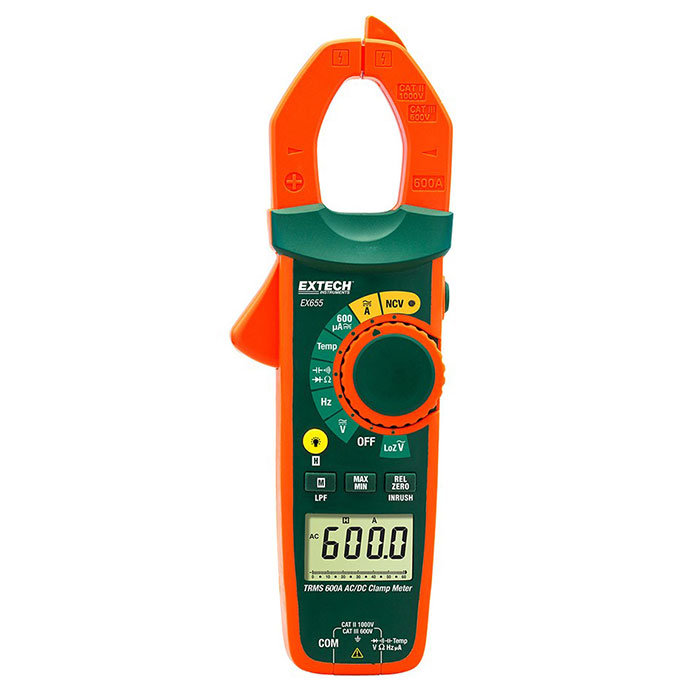

Extech EX655 True RMS 600A AC/DC Clamp Meter

SKU: EXTEEX655
  • True RMS AC current measurement up to 600A
  • Featuring Jaw opening up to 30mm
  • Measure voltage, capacitance, resistance, continuity and diode
More Info
In Stock - Available Next Day

Extech EX655 True RMS 600A AC/DC Clamp Meter

With highly accurate AC/DC current measurement across two ranges (60 and 600A), the Extech EX655 True RMS 600A AC/DC Clamp Meter features a 1.18”/30mm jaw, ideal for small to medium-sized conductors (up to 350MCM).

Also functioning as a basic digital multimeter, the Extech EX655 can measure AC/DC voltage, resistance, capacitance, frequency, temperature, continuity and diode, plus offers non-contact voltage detection - ideal for ensuring a circuit is dead before testing.

The other main differences between Extech's EX655 and the EX650 include an inrush current mode for capturing current surges during motor startup, low pass filter (LPF) for accurate measurements of variable frequency drive signals, DC zeroing mode and an LCD display with a trending bargraph.

Featuring a LoZ mode to prevent false readings caused by ghost voltages, μA function for HVAC flame rod current measurements, a built-in LED torch and a 6000 count backlit LCD display, the Extech EX655 is CAT IV 600V and CAT III 1000V safety rated, also offering data hold, MIN/MAX functions and automatic power off to conserve battery life.

Extech EX655 Key Features:

  • Measure AC and DC current to 600A
  • Low current mode to 600μA (AC/DC)
  • DC voltage measurements to 1000V
  • AC voltage measurements to 750V
  • Non-contact voltage detector built-in with range from 100 to 1000V
  • Resistance measurements to 60MΩ
  • Capacitance measurements to 60mF
  • Frequency measurements from 10Hz to 1MHz
  • Temperature measurements from -40 to 1000°C (-40 to 1832°F)
  • Continuity and diode testing
  • Low pass filter (LPF) for accurate measurements of variable frequency drive signals
  • Inrush current mode captures currents surges during motor startup
  • DC Zero mode
  • LCD screen with trending bargraph
  • True RMS - ensures accuracy when testing on AC waveforms
  • 1.18" (30mm) jaw size suitable for conductors up to 350MCM
  • LoZ (low impedance) function prevents false readings caused by ghost voltages
  • μA function is ideal for testing HVAC flame rod current
  • 6000 count backlit LCD display
  • Data hold function temporarily freezes current value on the display
  • MIN/MAX function captures highest and lowest readings taken
  • Relative function
  • Built-in LED worklight
  • Automatic power off when left idle

What's In The Box?

  • Extech EX655 True RMS 600A AC/DC Clamp Meter
  • Test Leads
  • General Purpose Bead Wire Temperature Probe
  • 3 x AAA Batteries
Specification
  • AC Current (Max Resolution): 6A, 60A, 600A (0.001A)
  • DC Voltage (Max Resolution): 1000V (0.1μA)
  • AC Voltage (Max Resolution): 750V (1mV)
  • Non-Contact Voltage: 100 to 1000V
  • Resistance (Max Resolution): 60MΩ (0.01nF)
  • Continuity/Diode Test: Yes
  • Dimensions: 228 x 77 x 41mm
  • Weight: 9.4oz (265g)
