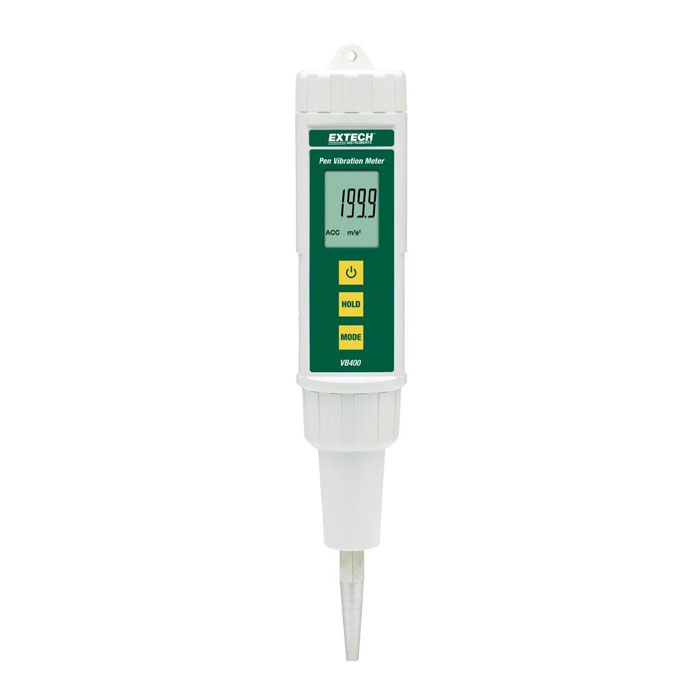

Extech VB400 Pen Vibration Meter

SKU: EXTEVB400
  • Capable of measuring RMS Acceleration and Velocity in imperial and metric units
  • Portable Handheld instrument ideal for environmental engineers
  • Acceleration range at 2 to 656ft/s2, Velocity range at 0.02 to 7.87inch/s
More Info
In Stock - Available Next Day

Extech VB400 Pen Vibration Meter

The VB400 is a lightweight Pen style vibration meter designed to provide simple, accurate velocity and acceleration measurements on various industrial machines. Common applications include vibration testing on motors, bearings, pumps, fans and rotating machines.

Despite being small the meter does not compromise on versatility. The VB400 is capable of measuring velocity in either cm/s, in/s or mm/s and can also measure acceleration in ft/s squared m/s squared and grams.

With clearly labelled function buttons and a single one touch mode button the tester is ready to use within seconds. The device also includes an easy to use zero out feature along with a data hold function button for temporary data recall.

Combine this with the VB400’s wide frequency range at 10 Hz to 1 KHz and a ± (5%+2 digits) basic accuracy makes it specifically suited to the industrial industry.

Extech VB400 Pen Vibration Meter Main Features

  • All in one pen type digital vibration meter
  • Acceleration, Velocity measurement, RMS measurement value
  • IP65 protection
  • Low battery indicator
  • Complete with the test pin and magnetic base
  • High accuracy and easy to read LCD display
  • Frequency range 10 Hz - 1 kHz, sensitivity designed to meet ISO 2954
  • Metric & Imperial display unit
  • Data Hold Function
  • Zero Out Function
  • Resolution of 1ft/s2; 0.01g; 0.1m/s2 and 0.02in/s; 0.01cm/s; 0.1mm/s
  • Ranges — Acceleration (RMS): 656ft/s2; 20.39g; 200m/s2, Velocity (RMS): 7.87in/s; 2.00cm/s; 200mm/s

What's In The Box?

  • Extech VB400 Pen Vibration Meter
  • Magnetic Base
  • Test Pin Tip
  • Pouch Case
  • 4 x AAA Batteries
Specification

General Specifications

  • Display: LCD, 20 mm x 28 mm.
  • Measurement:  Velocity, Acceleration. (RMS value).
  • Mode: Acceleration: g, m/s2, ft/s2

Velocity: mm/s, cm/s, inch/s

  • Frequency range: 10 Hz to 1 KHz
  • Sampling time: Approx. 1 second.
  • Operating temperature: 0 to 50°C (32 to 122°F ).
  • Operating humidity: < 80% RH.
  • Power supply: DC 1.5V battery (UM-4/AAA ) x 4 PCs.
  • Power consumption: Approx. DC 12 mA.
  • Weight: 240 g (0.53 lb).
  • Dimension Meter: 175 x 40 x 32 mm, (6.9 x 1.6 x 1.3 inch).

Sensing head: Round 9 mm Dia. x 30 mm.
