FLIR CM42 400A AC Digital True RMS Clamp Meter

SKU: FLIRCM42
  • Accu-Tip technology ensures accuracy in current measurements
  • Electrical field detection to check for presence and strength of voltage
  • Ergonomic and lightweight for easy transportation and use
More Info
Discontinued

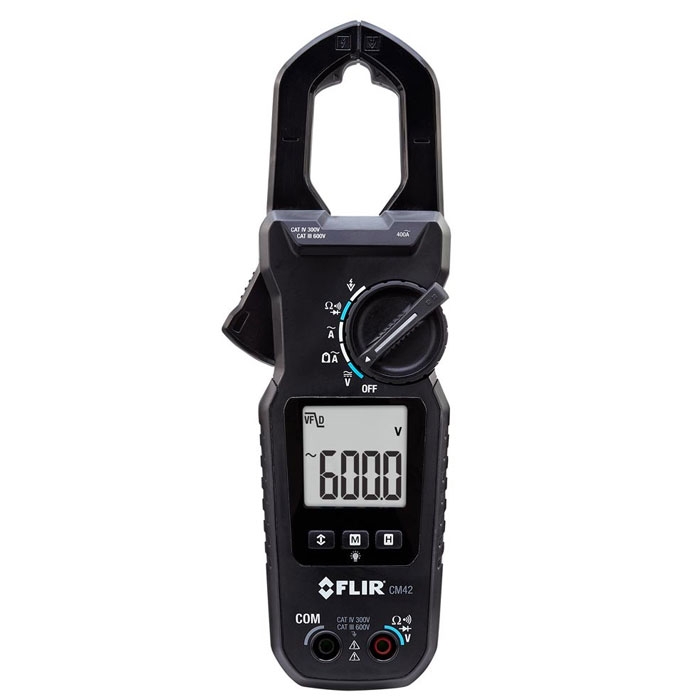

FLIR CM42 400A AC Digital True RMS Clamp Meter

Please note that this product has now been discontinued, replaced by the FLIR CM44 400A AC Digital True RMS Clamp Meter with Type K.

The FLIR CM42 400A AC Digital True RMS Clamp Meter is a well built, rugged clamp meter from FLIR’s CM4X range. This True RMS meter is designed for both residential and commercial electricians and it measures a whole range of electrical variables including voltage, AC current, frequency, resistance and diode. Its Accu-Tip™ technology helps measure current more accurately (±0.1 units) on thinner wires and it features data hold, zero function, and low pass filter for voltage measurement. Recording settings include MAX/MIN/AVG, frequency and diode so the CM42 is a truly versatile clamp meter. All results are clearly shown on the backlit LCD screen, a practical feature when working in dark places such as wiring cabinets.

The CM42 has automatic electrical field detection to discover voltage and determine its strength for safety reasons. The narrow 30mm opening of the jaw brings access to awkward wiring whilst the slimline form and lightweight construction allow it to sit happily in a toolbox and be carried around by hand. The over-moulded grips and ergonomic design mean that the device is comfortable to use and the user can have confidence in the product as the CM42 can withstand a 2-metre fall and comes with a limited lifetime warranty. Overall, it is an affordable, reliable clamp meter.

Key Features

  • AC/DC Voltage
  • AC current measured accurately with Accu-Tip™ technology
  • NCV electrical field detection
  • True RMS
  • Frequency
  • Resistance
  • Diode
  • Data hold, zero function, low pass filter
  • MAX/MIN/AVG, frequency, diode
  • Backlit LCD screen
  • 30mm jaw opening brings access to awkward wiring
  • Rugged design can withstand 2m drop
  • Limited lifetime warranty
Specification

Measurements

  • DC Voltage: 400V (accuracy: ±1%)
  • AC Voltage (Digital Low Pass Filter/VFD): 600V (accuracy: ±1%)
  • Clamp-On AC Current (50-100Hz; 100-400Hz): 400A (accuracy: ±1.8%; 2%)
  • Accu-Tip Clamp-On AC Current: 60A (accuracy: ±1.5%)
  • Frequency: 50-400Hz (accuracy 1%)
  • Resistance: 60kΩ (1%)
  • Diode: 2.0V (1.5%)

General Meter

  • Display: 1-5/6 digits 6000 counts
  • Operating Temperature: -10℃ to 50℃
  • Continuity: 10Ω< & <250Ω
  • Recording: Max/Min/Avg
  • Backlight LCD: Yes
  • Drop Test: 2m
  • Certifications: UL, CE
  • Category: Cat IV 300V / Cat III 600V
  • Jaw Opening: 30mm Max
  • NCV: Yes
  • Warranty: Limited Lifetime
  • Battery Type: 2 x AAA
