FLIR TA74 Universal Flexible Current Probe Accessory

Be the first to review this product

  • Longer clamp coil allows for simultaneous measurements, deeper access and double wrap
  • Choice of three measurement ranges: 30.00A, 300.0A, 3000A
  • Compatible with the majority of clamp meters regardless of brand
(Ex. VAT) £137.00 (Inc. VAT) £164.40
OR

Please select a free gift below.

"Brings greater reach and greater measurement range to most clamp meters"

  • Description

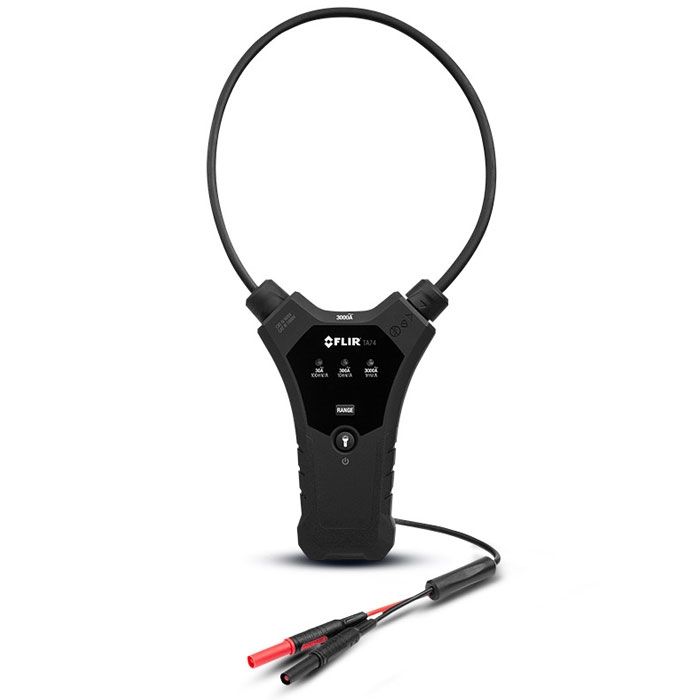

    FLIR TA74 Universal Flexible Current Probe Accessory

    Like the smaller TA72, the FLIR TA74 Universal Current Probe Accessory is a really useful way of adding versatility and range to your clamp meter. The distinctive feature of the TA74 is its 45cm flexible coil clamp which can be threaded through small gaps to gain access to tight wiring that might be out of the scope of a traditional hard-jaw clamp meter. The longer clamp coil makes the accessory suitable for measuring multiple conductors simultaneously as well as giving greater access.

    In addition, the AC current measurement range of a clamp meter will almost certainly be improved by the probe’s 3000A capacity. The user gains the choice of 30A, 300A and 3000A measurement ranges and measurements are accurate to within 3%. The AC voltage output and standard banana plug connectors mean that the TA74 is compatible with the majority of clamp meters.

    The user benefits from the probe’s lightweight, ergonomic design as well as the usual FLIR build quality which allows the TA74 to withstand a 3m drop. The probe is therefore suitable for use in difficult or hazardous working environments, especially considering the LED work lights for illuminating poorly lit environments. The limited lifetime warranty provides further peace of mind.

    FLIR part number: TA74

    Key features

    • 45cm flexible coil clamp
    • Standard banana plugs & AC voltage output
    • Compatible with most clamp meters
    • Choice of three measurement ranges
    • 3000A maximum AC current
    • Bright, dual LED lights
    • Rugged, lightweight and ergonomic
    • 1.9m connector cable
    • 3m drop test
    • Cat IV to 600V, Cat III to 1000V
    • Limited lifetime warranty
  • Specification

    Universal Flex Current Probe Accessory

    • Maximum AC current: 3000A
    • AC current ranges and resolution: 30.00A, 300.0A, 3000A
    • Basic AC current accuracy: ±3% + 5 digits
    • Measurement rate: 1.5 samples per second, nominal
    • AC current bandwidth: 45Hz - 500Hz (sine wave)
    • Positional error: ±1% at 35mm; 1.5% at 50mm; 2% at 60mm

    Meter Data

    • Minimum requirements for compatibility: AC voltage function, 4000 count display 1mV remote*
    • Max conductor diameter: 12cm
    • Flex coil length: 45cm
    • Flex coil diameter: 7.5mm
    • Flex coil tip diameter: 13mm
    • Cable length: 1.9m
    • Worklight: 2 white LEDs
    • Power supply: 2 x 2.5V AAA batteries
    • Drop test: 3m
    • Agency approvals: CE, UL
    • Safety rating: Cat IV 600V, Cat III 1000V
    • Standards: EN61010-1, EN61010-2-032, EN61326-1
    • Warranty: Limited liefetime with registration**

    *for more information on TA72 compatibility, please see www.flir.com/ta72-ta74

    **register within 60 days of purchase at www.flir.com/warranty
