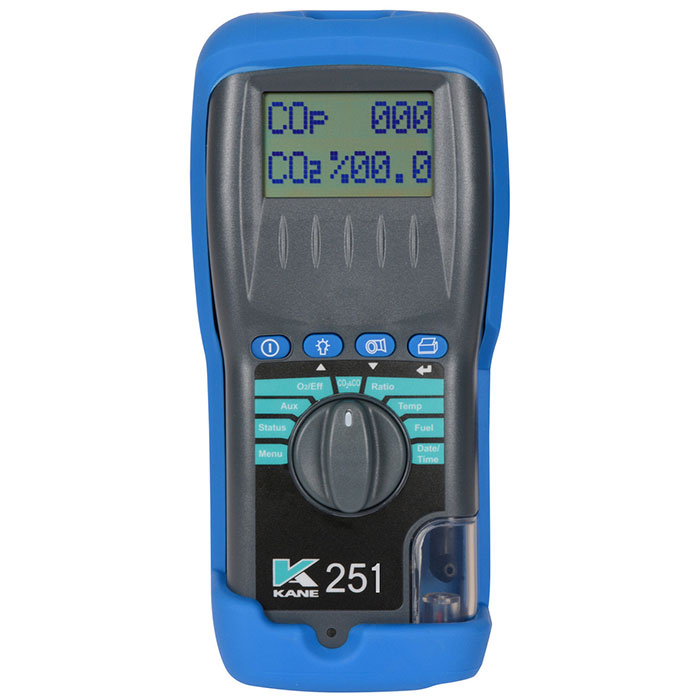

Kane 251 Combustion Flue Gas Analyser

SKU: KANE251
  • Combustion analyser featuring high range CO sensor (10,000ppm)
  • Multi-fuel operation - natural gas, light oil, propane, butane, LPG and wood pellets
  • Measures CO2, CO, flue temperature, calculated O2 and more
More Info
Discontinued

Kane 251 Combustion Flue Gas Analyser

This product has now been discontinued. Please find alternatives in our Flue Gas Analyser category.

<p>Please find alternatives in our <a href="https://www.test-meter.co.uk/flue-gas-analysers/">Flue Gas Analyser category.</a></p>

Designed for the installation or servicing of gas/oil boilers and biomass appliances, the Kane 251 Combustion Flue Gas Analyser is the ideal instrument for professional gas engineers.

Capable of measuring carbon dioxide (CO2), carbon monoxide (CO) and flue temperature, the Kane 251 can also calculate oxygen (O2), CO/CO2, ratio, losses, combustion efficiency (nett, gross or condensing) and excess air, with the carbon monoxide sensor also monitoring ambient CO levels in the air to ensure the user's safety. Similar to the Kane 255, the Kane 251 offers all the same functionality but comes with a higher range CO sensor (up to 10,000ppm).

Featuring an easy-to-use rotary dial and a magnet in the back of the unit allowing hands-free use, the Kane 251 Combustion Flue Gas Analyser is full of useful features.

With it’s large screen displaying 2 readings simultaneously, the Kane 251 can store up to 20 readings and allows data to be instantly printed out via infrared connection to Kane's optional printer.

The Kane 251 is also available as the KANE251NO, with this optional upgrade allowing the measurement of Nitric Oxide (NO) in addition to all standard features.

Kane 251 Combustion Analyser Key Features

  • High range CO (carbon monoxide) sensor - 10,000ppm
  • Multi-fuel operation - natural gas, light oil, propane, butane, LPG and wood pellets
  • Measures carbon dioxide (CO2), carbon monoxide (CO) and flue temperature
  • Calculates oxygen (O2), CO/CO2, ratio, losses, combustion efficiency (nett, gross or condensing) and excess air
  • Monitor ambient carbon monoxide levels
  • Store up to 20 results on internal memory
  • Long-life sensors
  • 6 year warranty (if serviced annually)
  • Data hold function
  • Infrared output to printer (sold separately)
  • Protective rubber cover with integrated magnet allowing hands-free use
  • Also available in NO model, allowing the measurement of Nitric Oxide (NO)

What's In The Box?

  • Kane 251 Combustion Flue Gas Analyser
  • Charger
  • Batteries
  • KMCP2
  • Test report
  • Manual
Specification

Flue Temperature

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Inlet Temperature (Internal Sensor)

  • Range: 0-50°C
  • Resolution: 0.1°C
  • Accuracy: ±1°C, ±0.3% reading

Inlet Temperature (External Sensor)

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Oxygen (Using dry gases at STP)

  • Range: 0.21%
  • Resolution: 0.1%
  • Accuracy: ±0.3%

Carbon Monoxide (H2 compensated)

  • Range: 0-20ppm, 21-4,000ppm nom, 4,001ppm-10,000ppm max, 20,000pm max for 15 mins
  • Resolution: 1ppm
  • Accuracy: ±3ppm, ±5% of reading, ±10% of reading

Carbon Dioxide (Using dry gases at STP)

  • Range: 0-20%
  • Resolution: 0.1%
  • Accuracy: ±0.3% volume

Calculated Efficiency (Net or Gross)

  • Range: 0-99.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Efficiency High (C)

  • Range: 0-119.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Excess Air

  • Range: 0-250%
  • Resolution: 0.1%
  • Accuracy: ±0.2% reading

Calculated CO/CO2 ratio

  • Range: 0-0.999
  • Resolution: 0.0001
  • Accuracy: ±5% reading

Nitric Oxide Low Range (NO model only)

  • Range: 1ppm
  • Resolution: ±2ppm < 30ppm (using dry gases at STP), ±5ppm > 30ppm
  • Accuracy: 0 to 100ppm

Nitric Oxide High Range (NO model only)

  • Range: 1ppm
  • Resolution: ±5ppm < 100ppm (using dry gases at STP), ±5% reading > 100ppm
  • Accuracy: 0-1000ppm

General

  • Pre-programme fuels: Natural gas, Light Oil, Propane, Butane, LPG, Wood Pellets.
  • Weight: 1kg / 2.2lb
  • Handset Dimensions: 200mm / 7.9" x 45mm / 1.8" x 90mm / 3.5"
  • Probe Dimensions: L300mm / 11.8" x Dia 6mm / 0.25" with 200mm / 7.8" long stainless steel shaft, type K thermocouple and 3m / 6ft long neoprene hose
  • Ambient Operating Range: ±0°C to ±40°C / 32-104°F, 10% to 90% RH non-condensing
  • Storage Capacity: 20 sets of test results in volatile memory
  • Battery Life: 4AA cells > 8 hours using Alkaline AA cells
  • Charger (optional): 110Vac/220 Vac nominal for NMiH batteries only, 12V in vehicle charger for NMiH batteries only
