Kane 251 Oil Fired Combustion Analyser Kit

Kane
SKU: KANE251OILKIT
  • Designed for oil-fired appliances, plus biomass, natural gas, propane etc
  • Includes KANEMSP smoke pump, compound pressure & vacuum gauge and more
  • Available with KANE251NO optional upgrade (for measuring Nitric Oxide)
More Info
Discontinued

Kane 251 Oil Fired Combustion Analyser Kit

This product has now been discontinued. Please find alternatives in our Flue Gas Analyser category.

Created with the servicing, commissioning and maintaining oil-fired appliances in mind, the Kane 251 Oil Fired Combustion Analyser Kit is perfect for measuring biomass appliances or any appliance burning heavy oil, natural gas, propane, butane, LPG or light oils, making it an incredibly versatile kit.

With it’s higher range CO sensor allowing measurement up to 10,000ppm, the KANE251 accurately measures O2, CO, temperature and can calculate CO2, CO/CO2 ratio and efficiency as well as being suitable to check CO levels in a room.

The Kane 251 Oil Fired Combustion Analyser Kit features a KANE MSP manual smoke pump, compound pressure and vacuum gauge, pressure gauge manifold and high pressure hoses, in addition to all the accessories from the base set (including KMIRP infrared printer, protective rubber casing and carry case).

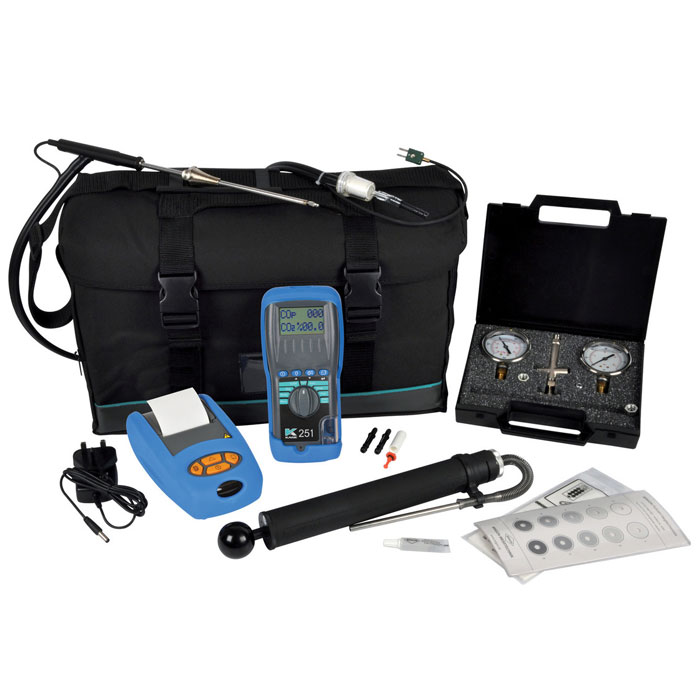

What's In The Box?

  • Kane 251 Oil Fired Combustion Analyser Kit
  • Charger
  • Batteries
  • KMCP2
  • Test Report
  • Manual
  • KANE IRP-2
  • KANE MSP manual smoke pump
  • 0-300 psi pressure gauge
  • Pressure gauge manifold
  • Compound gauge (pressure and vacuum)
  • High pressure hose and 2 adaptors
  • Large carry case
Specification

Flue Temperature

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Inlet Temperature (Internal Sensor)

  • Range: 0-50°C
  • Resolution: 0.1°C
  • Accuracy: ±1°C, ±0.3% reading

Inlet Temperature (External Sensor)

  • Range: 0-600°C
  • Resolution: 0.1°C
  • Accuracy: ±2°C, ±0.3% reading

Oxygen (Using dry gases at STP)

  • Range: 0.21%
  • Resolution: 0.1%
  • Accuracy: ±0.3%

Carbon Monoxide (H2 compensated)

  • Range: 0-20ppm, 21-4,000ppm nom, 4,001ppm-10,000ppm max, 20,000pm max for 15 mins
  • Resolution: 1ppm
  • Accuracy: ±3ppm, ±5% of reading, ±10% of reading

Carbon Dioxide (Using dry gases at STP)

  • Range: 0-20%
  • Resolution: 0.1%
  • Accuracy: ±0.3% volume

Calculated Efficiency (Net or Gross)

  • Range: 0-99.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Efficiency High (C)

  • Range: 0-119.9%
  • Resolution: 0.1%
  • Accuracy: ±1.0% reading

Calculated Excess Air

  • Range: 0-250%
  • Resolution: 0.1%
  • Accuracy: ±0.2% reading

Calculated CO/CO2 ratio

  • Range: 0-0.999
  • Resolution: 0.0001
  • Accuracy: ±5% reading

Nitric Oxide Low Range (NO model only)

  • Range: 1ppm
  • Resolution: ±2ppm < 30ppm (using dry gases at STP), ±5ppm > 30ppm
  • Accuracy: 0 to 100ppm

Nitric Oxide High Range (NO model only)

  • Range: 1ppm
  • Resolution: ±5ppm < 100ppm (using dry gases at STP), ±5% reading > 100ppm
  • Accuracy: 0-1000ppm

General

  • Pre-programme fuels: Natural gas, Light Oil, Propane, Butane, LPG, Wood Pellets.
  • Weight: 1kg / 2.2lb
  • Handset Dimensions: 200mm / 7.9" x 45mm / 1.8" x 90mm / 3.5"
  • Probe Dimensions: L300mm / 11.8" x Dia 6mm / 0.25" with 200mm / 7.8" long stainless steel shaft, type K thermocouple and 3m / 6ft long neoprene hose
  • Ambient Operating Range: ±0°C to ±40°C / 32-104°F, 10% to 90% RH non-condensing
  • Storage Capacity: 20 sets of test results in volatile memory
  • Battery Life: 4AA cells > 8 hours using Alkaline AA cells
  • Charger (optional): 110Vac/220 Vac nominal for NMiH batteries only, 12V in vehicle charger for NMiH batteries only
