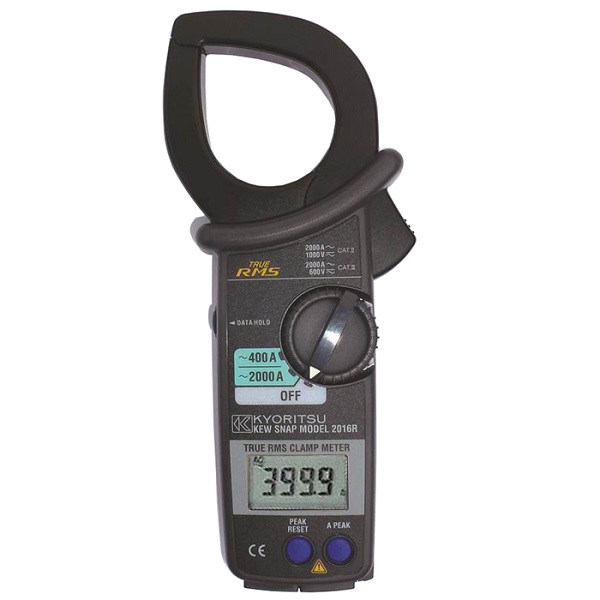

Kewtech KEW2016R 2000A TRMS High Current AC Clamp Meter

SKU: KEWTKEW2016R
High current TRMS 2000A AC clamp meter with a peak value capture, ideal for recording inrush currents
More Info
Typically ships in 1-3 working days

Kewtech KEW2016R 2000A TRMS High Current AC Clamp Meter

The Kewtech KEW2016R is a TRMS clamp meter capable of reading up to 2000A AC. Featuring jaws with a diameter of 55mm, the clamp is suitable for measuring large conductors designed to carry high current. Moreover, the KEW2016R clamp meter can capture a 'peak' value; ideal for measuring inrush currents on industrial electrical equipment.

Kewtech KEW2016R Clamp Meter key features:

  • Measures TRMS current up to 2000A AC
  • Fast 'peak value' mode, ideal for recording inrush currents
  • Complies to IEC61010-1 CAT. III 600V

What's In The Box?

  • Batteries
  • Output Plug
  • Carry Case
  • Instruction Manual
Specification

KEW2016R Specification:

400A range  +/-1.5% rdg, +/- 3dgt (45-65Hz), +/-2.5% rdg, +/- 3dgt (40Hz-1KHz)

2000A range (0-1500A) +/-2.0% rdg, +/- 5dgt (45-65Hz), +/-3.0% rdg, +/- 5dgt (40Hz-1KHz), (1501-2000A) +/-4.0% rdg (50Hz/60Hz)

Conductor size  55mm diameter max.

Withstand voltage 5550V AC for 1 minute

Output voltage AC400A (DC400mV), AC2000A (DC200mV)

Reading type TRMS

Crest factor 3 or less: accuracy 1% (45-65Hz), less than AC3000A/1200V peak

Safety standard  IEC61010-1, (JIS C 1010-1), CAT III (600V), CATIII (1000V), IEC61010-2-031, (JIS C 1010-2-31), IEC61010-2-032, (JIS C 1010-2-32), IEC61326-1

Power source R6P (AA) (1.5V) x2

Dimensions 247(L) x 105(W) x 49(D) mm

Weight 470g approx
