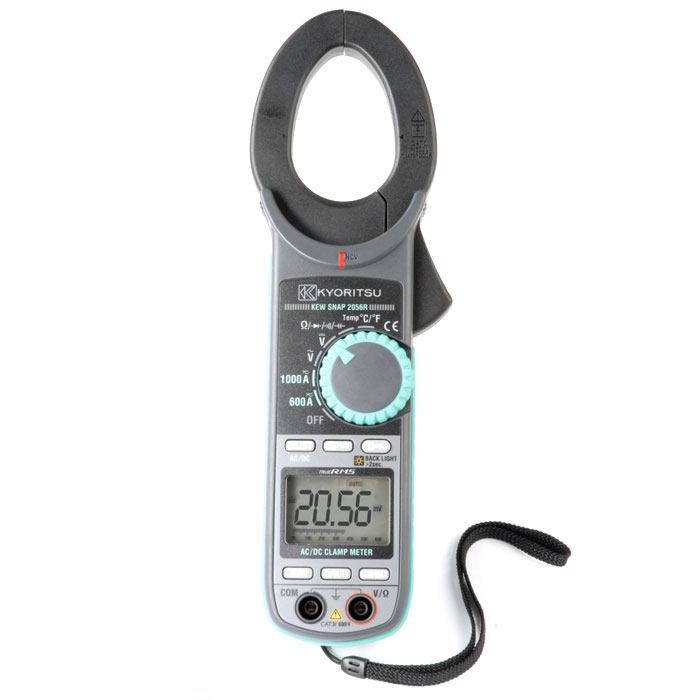

Kewtech KEW2056R True RMS 1000A AC/DC Clamp Meter

SKU: KEWTKEW2056R
Ideal CAT IV True RMS Clamp Meter for highly accurate AC/DC readings. Measures upto 1000 Amps AC/DC
More Info
In Stock - Available Next Day

Kewtech KEW2056R True RMS

  • True RMS for highly accurate readings
  • Measures both very low and high power circuits
  • Measures current up to 1000A AC/DC
  • Measures voltage up to 600V AC/DC
  • Min/Max for extended periods
  • PEAK Hold Function enables Peak value measurement of starting current. (only at ACA Range)
  • Continuity buzzer
  • Frequency
  • Capacitance
  • Temperature measurement (with KEW8216 temperature probe)
  • Non-contact voltage indicator
  • 40mm jaw size
  • LED Non contact voltage detection
  • Display: 6039 counts with bar graph
  • Lowest resolution 0.1A
  • Continuity & Diode Check Function
  • LCD Backlight function
  • Sleep Function to extend battery life
  • Complies to IEC61010-1 CAT. IV 600V

What's In The Box?

  • Test Leads
  • Batteries
  • Carry case
  • Instruction Manual
  • Certificate of Conformity
  • FREE Kewtech Kewstick
Specification
AC Current 0 ~ 1000.0A
±2.0%rdg±5dgt (50/60Hz)
±3.5%rdg±5dgt (40~500Hz)
DC Current 0 ~ 1000.0A
±1.5%rdg±5dgt
AC Voltage 6/60/600V
Auto Ranging
±1.5%rdg±4dgt (50/60Hz)
±3.5%rdg±5dgt (40~400Hz)
DC Voltage 600m/6/60/600V
Auto Ranging
±1.0%rdg±3dgt
Resistance 600/6k/60k/6MΩ (Auto Ranging)
±1%rdg±5dgt (600~6M Ω) / ±5%rdg±8dgt (60M Ω)
Continuity Buzzer Buzzer sounds at 100Ω
Frequency/Duty 10/100/1k/10kHz (Auto Ranging) / 0.1~99.9%
Temperature -50°C ~ +300% (With the use of Temperature probe 8216)
Conductor Size 44mm
Withstand Voltage 6880V AC for 5 seconds
Reading Type Averaging
Safety Standards IEC61010-1 CAT.IV 600V
IEC61010-031
IEC61010-2-032
IEC61326
Power Source R03(1.5V)(AAA) x 2
Dimensions 243(L) x 77(W) x 36(D)mm
Weight 300g
