Martindale TEK905 Decade Capacitance Box

SKU: MARTTEK905
A low cost, five decade capacitance calibration box from 100pF to 4.111mF with a 5% accuracy.
More Info
Out Of Stock

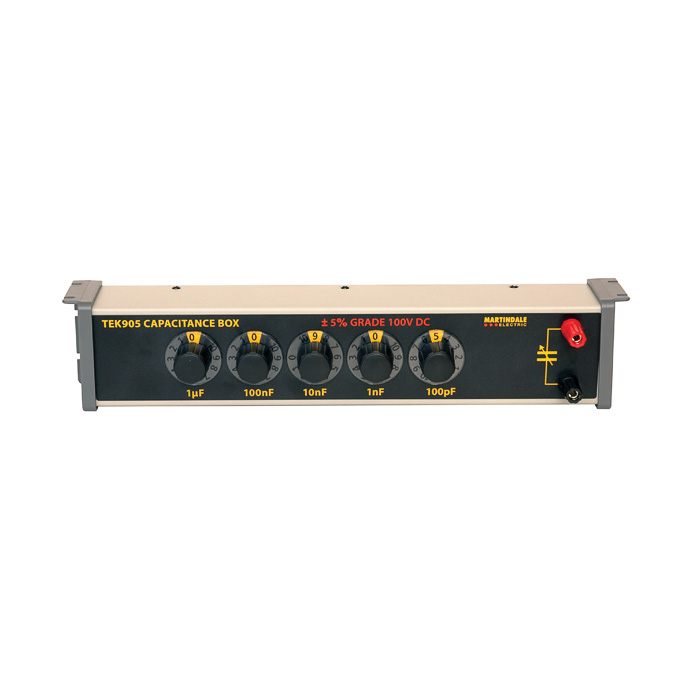

Martindale TEK905 Decade Capacitance Box

The Martindale TEK905 Decade Capacitance Box is a five decade capacitance box offering a practical range of variable capacitance values from 100pF up to 4.111µF with an accuracy of 5%. The Martindale TEK 905 is a fantastic and low cost capacitance calibration box ideal for use in the laboratory, for educational purposes and for the calibration of test equipment. The five variable decades of the TEK905 are 100pF, 1nF, 10nF, 100nF and 1µF

Specification
  • Range: 100pF - 4.111mF
  • Capacitance: 5% Grade 100V DC
  • Dimensions: 306 x 70 x 80mm
  • Weight: 425g
