Megger Torkel 930 Battery Load Unit

SKU: MEGGTORKEL930-CONF
  • Accurate load/discharge testing for determining actual battery capacity
  • Large current discharge range up to 220A
  • Easy data transfer and analysis using memory stick and Torkel viewer software
More Info

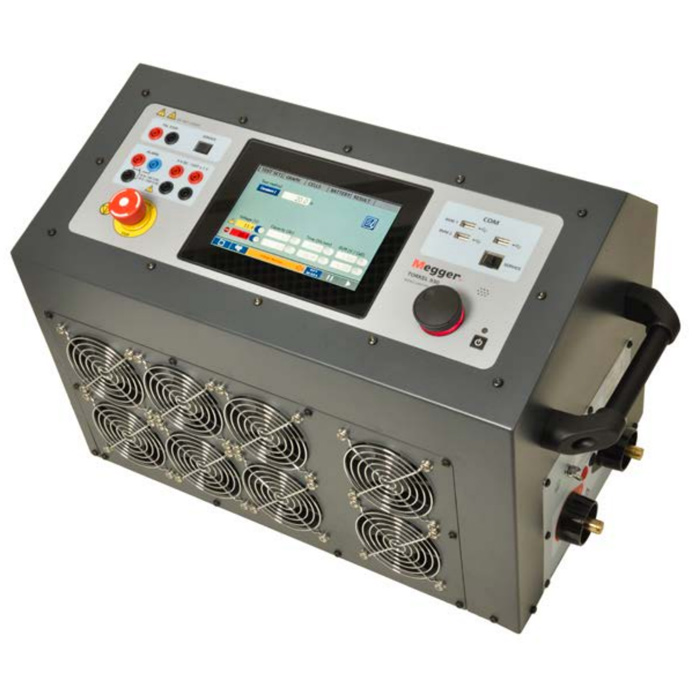

Megger Torkel 930 Battery Load Unit

The Megger Torkel 930 Battery Load Unit is suitable for use in high-voltage substations and other industrial environments. It performs load/discharge testing and therefore assesses actual capacity on battery systems measuring between 12 and 300V.

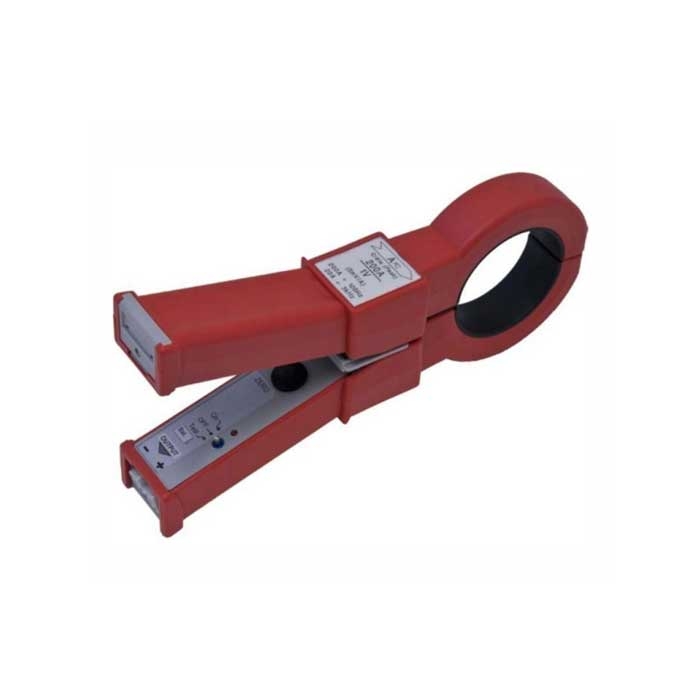

The Torkel 930 can discharge at up to 220A, thus shortening test time, and current can be increased even further by linking two Torkels or adding an additional TXL load unit. The user can choose from large constant output ranges over current, power, and resistance in addition to the option of pre-selected load profile. Battery systems can be negatively or positively grounded or free-floating and total battery current can be evaluated using a DC clamp probe (sold separately).

Batteries can be measured in service for added convenience and the user gets real-time readings on the 7” touch screen during testing. The Torkel 930 has the capacity for battery voltage monitoring (BVM, accessory sold separately) which allows automatic battery cell voltage logging during capacity tests. For greater accuracy, inputs for separate sensing cables overcome the problem of voltage drop caused by long current cables or high current.

The supplied Torkel Viewer software allows measurements to be collated and viewed on a computer after simple transfer by a USB stick (included) but results are also saved on the device if immediate data transfer is not practical.

Safety is a very important aspect of the Megger Torkel 930 as it features an input for an external alarm, an internal buzzer alarm and an emergency stop as well as automatic shutdown and airflow disruption detection. The alarm and auto-shutdown levels are adjustable and thermal cut out provides additional safety.

The Megger Torkel 930 is supplied with a cable set, a soft case for cables, Torkel Viewer software, a USB memory stick and a carry case. With BVM functionality in addition to data-report and safety features, it is an advanced, accurate load/discharge tester that can provide precise actual battery capacity readings over impressive ranges.

Key Features

  • Suitable for batteries between 12V and 300V
  • 220A max. discharge
  • Discharges at constant power, resistance, current, or pre-selected option
  • Batteries can be tested in service
  • Adjustable alarm and shutdown levels
  • Blocked airflow detection and emergency stop
  • Simple transfer to computer via supplied USB memory stick
  • EC61010-1:2010 / IEC61010-2-030 / IEC613626-1
  • 7” touch screen
  • BVM functionality
  • Data analysis with Torkel Viewer software

What's In The Box?

  • Megger Torkel 930 Battery Load Unit (CS-19391)
  • Megger Torkel 930 Battery Load Unit instructions
  • Mains cable
  • Cable set, 2 x 3m, 70mm2 (GA-09550)
  • Soft case for cables (GD-00360)
  • Torkel Viewer software (CS-8010X)
  • USB memory stick (HF-10020)
  • Transport case 670 x 400 x 51mm (GD-00955)
Specification

Temperature

  • Operating: 0℃ - +50℃, power derating over +35℃
  • Storage: -40℃ to +70℃
  • Humidity: 5% - 95% RH, non condensing

Shock/Vibration/Fall

  • Instrument only: ETSI EN 300 019-2-7 class 7M2
  • Instrument in transport case: ISTA 2A

Altitude

  • Operating: 3000m
  • Storage: 10000m
  • Encapsulation: 30m

CE-marking

  • LVD: IEC61010-1:2002 & IEC61010-2-030
  • EMC: IEC61326

General

  • Main voltage: 100-240V AC, 50/60 Hz
  • Power consumption: 200W (max)
  • Power interruption: 40ms (max)
  • Protection: Thermal cut-outs, automatic overload protection, emergency stop button
  • Dimensions: 519 x 315 x 375mm
  • Weight: 19.5kg
  • Display: 7" LCD, capacitive screen touch
  • Available languages: English, French, German, Spanish, Swedish

Current measurement

  • Display range: 0 to 2999.0A
  • Basic inaccuracy: ±(0.5% of reading +0.1A)

Internal current measurement

  • Range: 0 to 220A

Input for clamp-on probe

  • Range: 0 to 1000mV DC
  • Probe mV/A-ratio: 0.30 mv/A to 100.00mv/A
  • Input impedance: >1MΩ

Voltage measurement

  • Voltage: 0 to 300V DC
  • Inaccuracy: ±(0.5% of reading +0.1V DC)
  • Resolution: 0.1V
  • Sample rate: 10Hz, values are saved when change is >10mV

Time measurement

  • Inccuracy: ±0.1% of reading ±1 digit

Load section

  • Battery voltage: 7.5V to 300V
  • Power: 15kW (max)
  • Load patterns: Constant current, constant power, constant resistance, current or power profile

Maximum current at common battery voltages

Voltage Torkel 910 Torkel 930
48V 110A 220A
110V 110A 136A
220V 68A 68A


Constant I

  • Torkel 910: 0 to 110.0A
  • Torkel 930: 0 to 220.0A
  • Inaccuracy: ±(0.5% + 0.2A)
  • Resolution: 0.1A
  • Ripple: ±0.4A

Constant R

  • Range: 300mΩ to 3kΩ
  • Inaccuracy: ±0.5%
  • Resolution: 100mΩ

Constant P

  • Range: 0 to 15kW
  • Inaccuracy: ±1% + 50W
  • Resolution: 10W
  • Ripple: ±200W

Inputs

  • + 300V
  • - 0V
  • I EXT&≤ V: 1V DC, 300V DC to ground
  • Voltage sense: Impedance to the current terminals is > 1MΩ

Outputs

  • Alarm relay contact: 28V DC, 8A, 250V AC, 8A
  • Alarm 9 V DC: 9V DC, 100mA

Communication ports

  • BVM1 and BVM2: USB connection for BVM units
  • USB: USB connection for USB memory
  • Service: For service of the instrument
