Metrel OmegaPAT Plus PAT Kit A

Be the first to review this product

Great new PAT testing kit with barcode scanner, loads of labels and software. Tests portable RCDS and can do flash testing after repairs.

rrp £1,620.00

now £1,229.00 (Ex. VAT) £1,474.80 (Inc. VAT)

rrp £1,620.00

Please select a free gift below.

"PAT kit with software, portable RCD's and flash testing"

  • Description

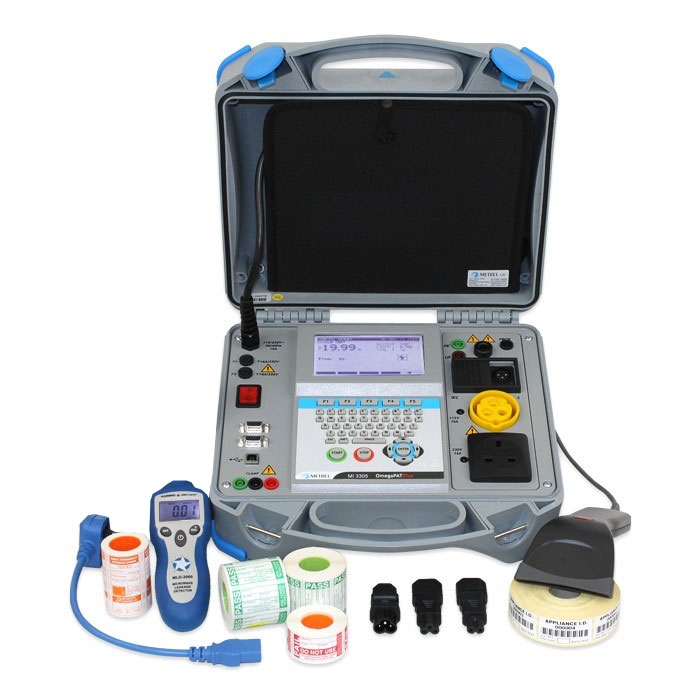

    Metrel OmegaPAT Plus PAT Testing Kit A

    The new Metrel OmegaPAT Plus MI3305 PAT Testing Kit A has the ability to test portable RCD's and can download PAT testing results via its built in USB or RS232 connections.

    Omega PAT MI3305 Key Features:

    • Rugged designed case stores all leads and flash test probe
    • Stores up to 6800 test results, download via USB or RS232
    • Comes with PATLInk software for download of test results
    • QWERTY keyboard for fast input of appliance details
    • Large backlit display with graphic and test help screens
    • Automatic or user defined pass / fail limits and test parameters
    • 230V and 110V test Sockets built in
    • Stores fail reasons for downloading to a PC
    • 230V IEC lead (cord) tester
    • Test facility for portable RCD's
    • Barcode Scanner and barcoded Appliance ID labels included
    • Accurate earth bond and leakage measurement even when multiple earth paths exist

    The MI3305 unit has a QWERTY keyboard for rapid entry of appliance numbers, sites, locations, addresses, notes etc. The appliance test results can be stored on this PAT testing equipment and then downloaded later onto Metrel's PATLink Pro Software that comes supplied FREE with the tester. The Metrel Omega PAT Plus has over 100 pre-programmed Auto Tests stored on the tester, making PAT testing much easier and quicker. You can also programme and customise and store your own Auto tests using the Metrel OmegaPAT Plus MI3305. This dual voltage PAT test meter has the ability to test 230V, 110V (including centre tapped) and IT appliances, optional adaptors allow it to test 415V, 16A, 32A.

    Metrel OmegaPAT Plus PAT Testing Kit A Includes:

    • Metrel MI3305 OmegaPAT Plus Tester
    • Metrel PATLink Pro PAT Software
    • Metrel Barcode Scanner
    • 1000 Barcode Appliance ID Labels
    • Metrel PAT Testing DVD
    • Microwave Leakage Detector
    • 150 Microwave Emission Labels
    • IEC Adaptor Kit
    • 230V Extension Lead Adaptor
    • 1000 Pass Labels
    • 200 Fail Labels
    • Earth Bond Lead
    • Portable RCD Test Probe
    • RS232 & USB Download Leads
    • Calibration Certificate
  • Specification

    Earth Bond Continuity

    • Currents: 100mA DC, 4A, 10A or 25A AC
    • Measuring Range: 0.00-19.9 ohms

    Insulation Test

    • Voltage: 250V or 500V DC
    • Measuring Range: 0.000 - 199.9 Mohms

    Substitute Leakage

    • Voltage: 40V
    • Measuring range: 0.00- 1.99 mA

    Touch Leakage

    • Measuring range: 0.00- 19.99 mA

    Differential Leakage

    • Measuring range: 0.00- 19.99 mA

    Flash Test

    • Voltage: 1500 Volts AC for Class 1 Appliances - 3000 Volts AC for Class II Appliances

    Load Test

    • Measuring range: 0 - 4 kVA

    Polarity

    • Output Voltage: 40V
    • Faults: open, short, crossed, multiple fault

    Portable RCD

    • Trip-out time readout: 0 ms - 1999 ms (½xI∆N) ±3 ms
    • Test currents: (I∆N)10 mA, 15 mA, 30 mA 0 ms - 300 ms (I∆N) ±3 ms
    • Test current multipliers ½,1, 2 and 5xI∆N 0 ms - 150 ms (2xI∆N) ±3 ms
    • Test modes: single, autotest 0 ms - 40 ms (5xI∆N) ±3 ms

    Trip out times

    • ½xI∆N: t∆ > 300ms
    • 1xI∆N: t∆ < 300ms
    • 5xI∆N: t∆ <40ms

    General

    • Dimensions: 335 x 160 x 335mm
    • Weight: 8.4kg
  • Supplied Accessories

    • Metrel MI3305 OmegaPAT Plus Tester
    • Metrel PATLink Pro PAT Software
    • Metrel Barcode Scanner
    • 1000 Barcode Appliance ID Labels
    • Metrel PAT Testing DVD
    • Microwave Leakage Detector
    • 150 Microwave Emission Labels
    • IEC Adaptor Kit
    • 230V Extension Lead Adaptor
    • 1000 Pass Labels
    • 200 Fail Labels
    • Earth Bond Lead
    • Portable RCD Test Probe
    • RS232 & USB Download Leads
    • Calibration Certificate
