Seaward Supernova Elite PAT Tester Kits (Choice of Kits)

Be the first to review this product

  • Choice Of Four Seaward Supernova Elite Kits
  • Kits include PATGuard Elite software and Printer/Scanner
  • The only PAT tester available within an inbuilt 110V transformer

rrp £1,981.00

now £989.00 (Ex. VAT) £1,186.80 (Inc. VAT)

rrp £1,981.00

* Required Fields

Please select a free gift below.

  • Description

    Seaward Supernova Elite PAT Tester Kit

    The Seaward Supernova Elite PAT tester is a dual voltage PAT Tester, it can be powered from both a 230V supply or 110V supply as found on building sites and in industrial areas. As the industry standard PAT tester for testing within a rugged working environment the Seaward Supernova Elite is well known for its robust build with a fold out QWERTY keyboard. The Seaward Supernova Elite is also the only PAT tester available with a 110V power transformer inbuilt which means that it conducts all tests (including those requiring mains power operation) while powered from either a 230V or 110V supply.
    Appliance information is easily entered using the QWERTY keyboard and help screens are available for less experienced users using the "Novice Mode". All information is stored on the Supernova and can be downloaded into Seaward PATGuard Elite 3 Software where reports can be generated and reminders set when re-testing is due.

    Using Seaward PATGuard Elite 3 users can also upload appliance information from the software back onto the upload memory of the Supernova Elite PAT tester. Using this feature in conjunction with the Desk Test n' Tag Printing and Barcode printing system. This helps speed up re-testing appliances by scanning the barcode previously applied which recognises the appliance information and allows a quicker re-test.

    Supernova Elite Key Features:

    • Dual voltage functionality for 230V and 110V equipment
    • Full range of PAT tests including flash testing
    • Large memory for test results, asset IDs and locations
    • Built-in 110V transformer for powering up 110V appliances
    • Full QWERTY keypad and large clear display

    The Seaward Supernova Elite carries out the following tests: Earth Continuity (100mA, 4A, 10A or 25A), Insulation Resistance Testing (250/500V), Earth Leakage Testing, Protective Conductor Current Testing, RCD Trip Time Testing, Flash Testing (1.5kV/3kV), Substitute Leakage Testing, Load Testing and a Polarity Test.

    Four different Seaward Supernova Elite Kits are available:

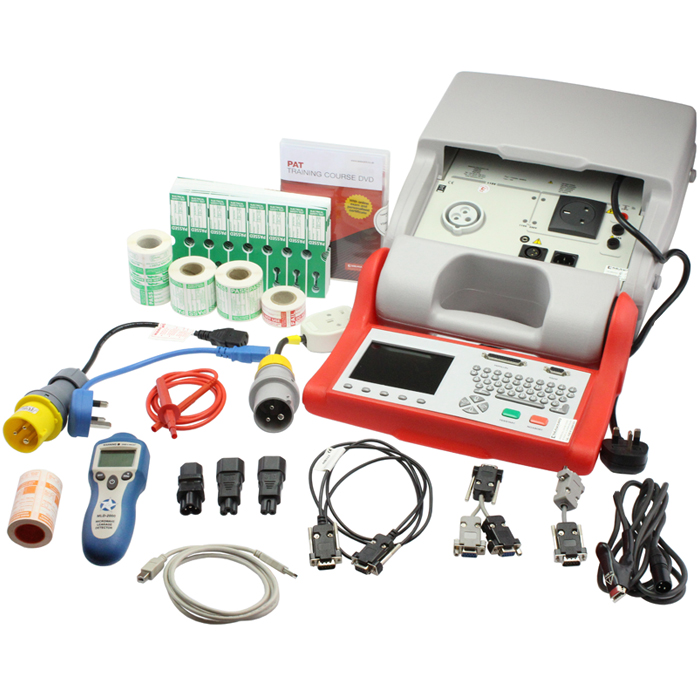

    Seaward Supernova Elite PAT Accessory Kit includes:

    • Seaward Supernova Elite PAT Tester + standard accessories
    • Seaward Online PAT Training Course with exam
    • Microwave Leakage Tester
    • 150 Microwave Emission Labels
    • IEC Clover Leaf Adaptor
    • 110V Extension Lead Adaptor
    • 230V Extension Lead Adaptor
    • 2 x Roll of 500 Pass Labels
    • Roll of 200 Fail Labels
    • Roll of 250 PassWrap (Cable Labels)
    • Pack of 250 Tuff Tags (Durable PAT Tags)

    Seaward Supernova PATGuard Elite Software Kit includes:

    • Seaward Supernova Elite PAT Tester + standard accessories
    • Seaward PATGuard Elite 3 with 1 Year License - Upgradable to Infinite License
    • IEC Clover Leaf Adaptor
    • 110V Extension Lead Adaptor
    • 230V Extension Lead Adaptor
    • 2 x Roll of 500 Pass Labels
    • Roll of 200 Fail Labels
    • Roll of 250 PassWrap (Cable Labels)
    • Pack of 250 Tuff Tags (Durable PAT Tags)
    • RS232 to USB Adaptor

    Seaward Supernova Elite Printer and Scanner Kit includes:

    • Seaward Supernova Elite PAT Tester + standard accessories
    • Seaward Test' n' Tag Desktop Printer
    • Barcode Scanner
    • IEC Clover Leaf Adaptor
    • 110V Extension Lead Adaptor
    • 230V Extension Lead Adaptor

    Seaward Supernova Elite Printer, Scanner and PATGuard Software Kit includes:

    • Seaward Supernova Elite PAT Tester + standard accessories
    • Seaward PATGuard Elite 3 with 1 Year License - Upgradable to Infinite License
    • Seaward Test' n' Tag Desktop Printer
    • Barcode Scanner
    • RS232 to USB Adaptor
    • IEC Clover Leaf Adaptor
    • 110V Extension Lead Adaptor
    • 230V Extension Lead Adaptor

    Seaward Supernova Elite Kit Comparisons

     PAT Accessory KitPATGuard Elite KitPrinter+Scanner KitPrinter+Scanner+Software Kit
    Seaward Supernova Elite PAT Tester

    Seaward PATGuard Elite 3 wih 1 Year License - Upgradable to Infinite License

       ✔
    Seaward Test'n'Tag Desktop Printer
    Barcode Label Scanner
    Seaward PAT Training DVD with online exam
    Microwave Leakage Detector + 150 x Microwave Emission Check Labels
    RS232 to USB Adaptor
    230V Extension Lead Adaptor
    110V Extension Lead Adaptor  ✔

    IEC PAT Adaptor Kit

     ✔
    1000 Pass Labels, 200 Fail Labels & 250 PassWrap Cable Labels
  • Specification

    Earth Continuity

    • Test Currents: 25A, 10A, 4A, AC
    • Display Range: 0.00ohms - 19.99ohms
    • Pass Value: User Defined
    • Measurement Technique: 4 Wire Measurement, Floating Earth

    Earth Screen Continuity

    • Test Current: 100mA
    • Display Range: 0.00ohms - 19.99ohms
    • Pass Value: User Defined
    • Measurement Technique: 4 Wire Measurement, Floating Earth

    Insulation Resistance

    • Test Voltage: 250V, 500V DC
    • Display Range: 0.1Mohms - 100Mohms
    • Pass Value: User Defined

    Flash

    • Test Voltage Class I: 1500V mns
    • Test Voltage Class II: 3000V rms
    • Display Range: 0.05mA- 2.5mA
    • Pass Value: User Defined

    Protective Conductor Current

    • Test Voltage: 230V/110V
    • Display Range: 0.1mA - 10mA
    • Pass Value: User Defined

    Touch Current

    • Test Voltage: 230V/110V User Selectable
    • Display Range: 0.1mA - 2.0mA
    • Pass Value: User Defined

    Substitute Leakage

    • Test Voltage: 40V AC Nominal
    • Display Range: 0.1mA - 2.0mA
    • Pass Value: User Defined

    Load Test

    • Display Range: 0kVA - 4.2kVA

    IEC Lead Polarity

    • Tests Performed: Live/Neutral Continuity and Polarity

    General

    • Voltage Range: 103V - 126V, 207V - 253V, 45Hz - 65Hz
    • Weight & Dimensions: 9.5Kg/400cm (l) x 32cm (w) x 16cm (d)
    • Keyboard: QWERTY
    • Display graphic: LCD -1/4 VGA (320x240 pixels)
    • Connectivity: RS232 Port Connection
  • Supplied Accessories

    The Seaward Supernova Elite comes with following accessories as standard:

    • Seaward Supernova Elite PAT Tester - 283A936
    • Earth Bond Continuity Test Lead with crocodile clip
    • Flash Test Probe
    • RS232 Download lead
    • 2 way Adapter for barcode scanners and printers
    • Instruction manual
    • 12 months manufacturers warranty
