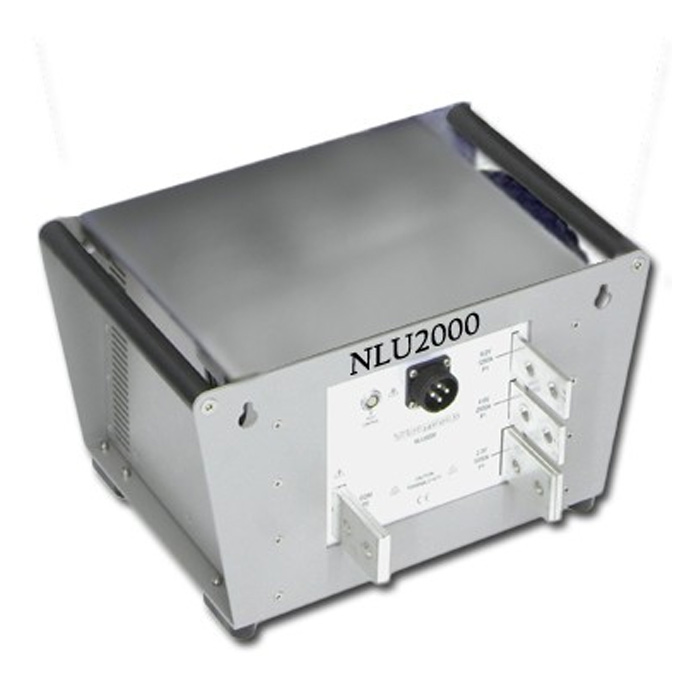

T&R NLU2000 Primary Current Injection Loading Unit

SKU: TANDRNLU2000
Loading unit for T&R PCU1-SP primary current injection test system. 600A continuous output, upto 2000A intermittent.
More Info
Available to order - contact for lead time

T&R NLU2000 Primary Current Injection Loading Unit

The T&R NLU2000 Primary Current Injection Loading Unit is to be used in conjunction with the T&R PCU1-SP Primary Current Injection System. It is a loading unit that provides the high current for PCI testing. The NLU2000 delivers a maximum output of 2000A with three output taps to allow for a wide range of load impedance.

Specification

Current Metering

Range Full scale Resolution Accuracy
10% 200A 0.1A ±0.5%rdg+5d
50% 1000A 1A ±0.5%rdg+5d
100% 2000A 1A ±0.5%rdg+5d
200% 4000A 1A ±1%rdg+5d

Intermittent Ratings

Output voltage Continuous 5mins 1mins 40s
3.5V 600A 1200A 1800A 2000A

6.9V

300A 600A 900A 1200A
13.8V 150A 300A 450A 500A
  • Dimensions: 450 x 275 x 370mm
  • Weight: 50kg
