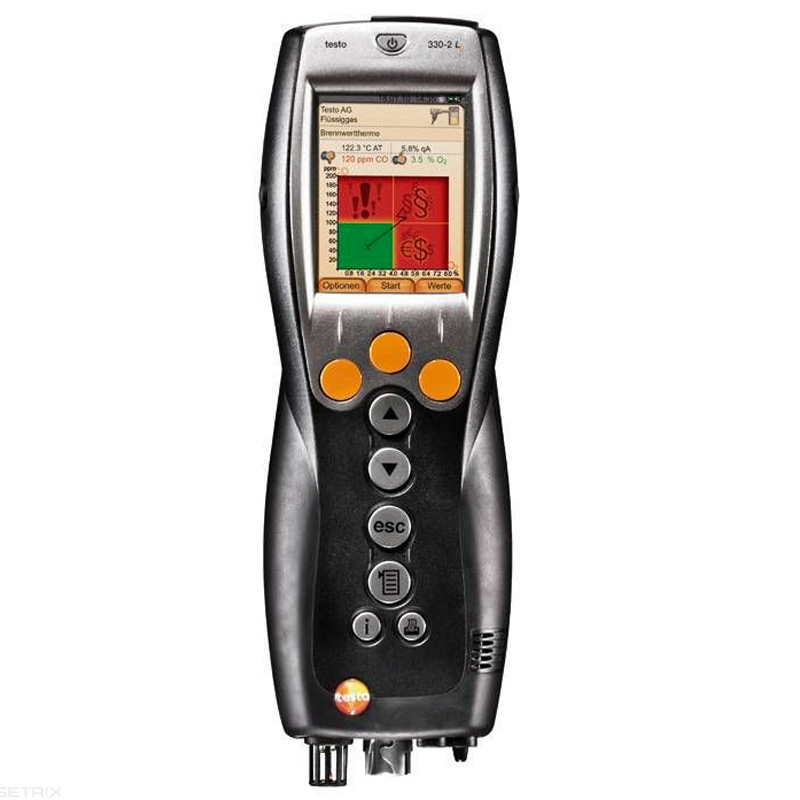

Testo 330-2 LL Flue Gas Analyser

SKU: TESTO3302LL-CONF
  • Probe can remain in the flue during zeroing
  • Measures an enormous range of variables with auto dilution for CO
  • Colour screen provides clear, speedy readings and analysis
More Info

Testo 330-2 LL Flue Gas Analyser

This product is discontinued, it has been replaced by the Testo 300 LL Smart Flue Gas Analyser Standard Kit.

The Testo 330-2 LL Flue Gas Analyser is an advanced, practical flue gas analyser capable of performing a range of tasks and then displaying them in a clear, concise manner on its 240 x 320 pixel colour display.

The 330-2 LL can measure variables such as temperature, CO, CO2, differential pressure, draught, exhaust gas loss, O2, and efficiency to a high degree of accuracy so it is incredibly versatile. In addition, there is a handy input for an NO probe (sold separately). CO measurement is aided by automatic dilution from 8,000ppm up to 30,000ppm.

Extended measurement menus allow the user to tailor the test to the appropriate system and fuel, thereby gaining a comprehensive picture of the performance of a system. The extensive series of measurements are then visualised in real time on the display and the ‘traffic light’ presentation lets the user gain an overall picture of a system’s health at a glance. Furthermore, the zeroing process lasts just 30 seconds and the probe can remain in the flue during zeroing which also saves time.

The 330-2 LL is a datalogging analyser with space for 500,000 readings so the user does not have to worry about using up the memory and he/she can track a long-term measurement curve. USB connectivity allows easy data transfer to a computer whilst IR wireless communication with printers, the Testo 308 Smoke Tester and PCs also comes as standard. The device is compatible with a Testo printer such as the one included in the 'Pro set with printer' kit.

The sensors can last up to 6 years with correct maintenance and probe filters are easily accessible for straightforward upkeep. The 330-2 LL is therefore a very practical, versatile measurement instrument with the capacity to take readings for a huge range of variables and then present them in a clear, simple way in order to quickly assess a system’s performance.

Key features

  • Temperature (-40 to +1200℃), CO (0 to 8000ppm), CO2 (0 to 10,000ppm), O2 (0 - 21%)
  • Draught (-9.99 to +40hPa), efficiency (0 to 120%), exhaust gas loss (0 to 99.9%), differential pressure (0 to 300mBar)
  • NO measurement with optional extra probe
  • Colour screen shows clear, real time readings and analysis
  • USB interface
  • Windows compatible software (sold separately)
  • Supplied with carry case and flue gas probe
  • Infrared connectivity
  • Compatible with Testo printer (optional)
Testo part number: 0563 3372 70 (Pro Set)
Testo part number: 0563 3372 71 (Pro Set with Printer)

Which kit is right for you?

  Pro Set Pro Set with Printer
Testo 330-2 LL Flue Gas Analyser
Long life gas sensors
H2 compensated CO sensor
Rechargeable Li-io battery
Calibration protocol
Flue gas probe (300mm x 8mm)
Carry case
IRDA Testo Printer
6 x printer rolls

What's In The Box?

Testo 330-2 LL Flue Gas Analyser Pro set

  • Testo 330-2 LL Flue gas Analyser
  • Long life gas sensors
  • H2 compensated CO sensor
  • Rechargeable battery
  • Calibration protocol
  • Flue gas probe (300mm x 8mm)
  • Carry case

Testo 330-2 LL Flue Gas Analyser Pro set with Bluetooth

  • Bluetooth enabled Testo 330-2 LL Flue Gas Analyser
  • Long life gas sensors
  • H2 compensated CO sensor
  • Rechargeable battery
  • Calibration protocol
  • Flue gas probe (300mm x 8mm)
  • Carry case

Testo 330-2 LL Flue Gas Analyser Pro set with printer

  • Testo 330-2 LL Flue gas Analyser
  • Long life gas sensors
  • Rechargeable battery
  • Calibration protocol
  • Flue gas probe (300mm x 8mm)
  • Carry case
  • Testo printer
  • 6 x printer rolls
Specification
  • Memory: 500,000 readings
  • Display: Colour graphic display with 240 x 320 Pixel
  • Storage temperature: -20 to +50 °C
  • Operating temperature: -5 to +45 °C
  • Weight: 600 g
  • Dimensions: 270 x 90 x 65 mm
  • Type K temperature meas. range: -40 to +1200 °C
  • Type K temperature resolution: 0.1 °C (-40 to 999.9 °C) / 1 °C (remaining range)
  • CO probe meas. range: 0 to 500 ppm
  • CO probe accuracy: ±5 ppm (0 to 100 ppm) / ±5% of mv (>100 ppm)
  • CO probe resolution: 1 ppm
  • CO probe response time: Approx. 35 s
  • CO2 probe meas. range: 0 to 1 Vol. % / 0 to 10.000 ppm
  • CO2 probe accuracy: ±(50 ppm ±2% of mv) / (0 to 5000 ppm)
  • CO2 probe response time: Approx. 35 s
  • Differential pressure probe meas. range: 0 to 300 hPa
  • Differential pressure probe accuracy: ±0.5 hPa (0.0 to 50.0 hPa) / ±1% of mv (50.1 to 100.0 hPa) / ±1.5 % of mv (remaining range)
  • Differential pressure probe resolution: 0.1 hPa
  • Draught sensor probe meas. range: -9.99 to +40 hPa
  • Draught sensor probe accuracy:;±0.02 hPa or ±5% of mv (-0.50 to +0.60 hPa) / ±0.03 hPa (+0.61 to +3.00 hPa) / ±1.5% of mv (+3.01 to +40.00 hPa)
  • Exhaust gas loss sensor probe meas. range: 0 to 99.9%
  • Exhaust gas loss sensor probe meas. resolution: 0.1%
  • CO sensor probe meas. range: 0 to 8000 ppm
  • CO sensor probe accuracy: ±10 ppm or ±10% of mv (0 to 200 ppm) / ±20 ppm or ±5% of mv (201 to 2000 ppm) / ±10% of mv (2001 to 8000 ppm)
  • CO sensor probe resolution: 1 ppm
  • NO sensor probe (only applicable with NO upgrade sensor as optional extra) meas. range: 0 to 3000 ppm
  • NO sensor probe accuracy: ±5 ppm (0 to 100 ppm) / ±5% of mv (101 to 2000 ppm) / ±10% of mv (2001 to 3000 ppm)
  • NO sensor probe resolution: 1 ppm
  • O2 sensor probe meas. range: 0 to 21 Vol. %
  • O2 sensor probe meas. accuracy: ±0.2 Vol. %
  • O2 sensor probe resolution: 0.1 Vol. %
  • Efficiency calculated probe meas. range: 0 to 120%
  • Efficiency calculated probe resolution: 0.1%
  • CO2 calculate probe meas. range: 0 to CO2 max
  • CO2 calculate probe accuracy:±0.2 Vol. %
  • CO2 calculate probe reaction time t90: < 40 s
