Amprobe ACD-14 Plus Clamp Multimeter

Amprobe ACD-14 Plus Clamp Multimeter

The Amprobe ACD-14 Plus Clamp Multimeter is a useful instrument that has measurement functions for both the electrical and HVAC sectors. It can measure AC/DC voltage up to 600V and AC current up to 600A via the 26mm jaw whilst microcurrent measurement between 0 and 2000µA via supplied test leads is ideal for testing smoke and flame detectors. Further capabilities include capacitance measurement up to 3000µF, resistance measurement up to 40MΩ, frequency measurement from 10Hz to 100kHz and continuity/diode testing. Finally, the supplied type-K thermocouple measures temperature between -20˚C and 537˚C.

Varying range and resolution options for each measurement parameter ensure that readings are very precise whilst the Amprobe ACD-14 Plus also provides standard basic accuracy of 0.3% for DC voltage. The innovative twin-screen display on this meter allows it to display readings for voltage and current simultaneously. The display hold function can freeze the current reading on screen and the max hold function remembers the highest reading recorded. Operation is undertaken through a simple slider and push-button interface.

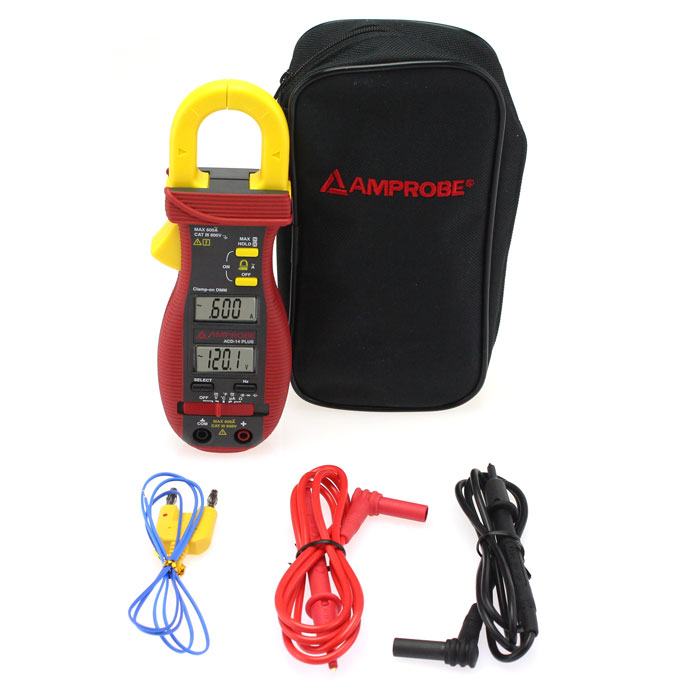

The compact, lightweight design of the Amprobe ACD-14 Plus means it is easy to manoeuvre in crowded cabinets and it is supplied with test leads, a thermocouple and a carry case for when it is not in use. Overall, it is a good-value, feature-rich clamp multimeter.

Amprobe part number: ACD-14 PLUS

Key Features

• AC/DC voltage range: 0 to 600V
• AC current range (via jaw): 0 to 600A
• AC/DC microcurrent range: 0 to 2000µA
• Resistance range: 0 to 40MΩ
• Capacitance range: 3000µF
• Frequency range: 10Hz to 100kHz
• Temperature range: -20˚C to 537˚C
• Continuity testing
• Diode testing
• Supplied with test leads and thermocouple
• Dual LCD screen display
• Data hold and max hold
• Cat III 600V
