Anton Sprint eVo 1 Flue Gas Analyser Kit

Anton
SKU: ANTONEVO1KIT
Flue gas analyser kit complete with pipe clamp temperature probes and an infra-red printer for producing personalised reports on location.
More Info
Discontinued

Anton Sprint eVo 1 Flue Gas Analyser Kit

This product has now been discontinued and replaced by the Anton Sprint Pro1 Flue Gas analyser kit.

The Anton Sprint eVo 1 Kit has been designed to provide engineers with accessories that they will use on a daily basis when performing flue gas analysis. This kit comes complete with pipe clamp temperature probes and an infrared printer that allows reports to be printed onsite and presented immediately to the client.

The Anton Sprint eVo 1 Flue Gas Analyser is a new generation of combustion analyser offering a range of new and enhanced features including updated software, auto zero purge structure for quick non-pumped testing and an improved high contrast backlit display.

Designed to simplify the day to day work of heating and service engineers, the Anton Sprint eVo1 is a more intuitive and technologically advanced analyser that meets the increasing number of responsibilities and legislation changes faced by HVAC, plumbing and gas professionals.

Complete with improved menu driven software, it provides flue gas analysis, flow and return temperature and CO build up measurements. With an internal memory that can store up to 200 results and an instant print facility, the eVo 1 can comfortably deal with the demands of a busy engineer.

The Anton eVo 1 gas analyser offers a choice of 10 separate reports that can be generated from the stored results and printed off onsite using the supplied infrared printer.

Anton Sprint eVo 1 Flue Gas Analyser Features

  • CO, CO2, CO/CO2 ratio, O2, XS air, temperature and efficiency with printout
  • Timed CO build up tests with appliance selection (BS 7967)
  • Flow and return temperature with printout
  • Simplified purge structure for quick use of non-pumped tests
  • Flue probe with split chamber moisture/filter protection
  • Instant print facility, without saving to memory
  • Internal memory for 200 readings
  • All previous logs can be recalled and viewed onscreen
  • Advanced software offers 10 different reports which can be personalised
  • Li-ion rechargeable batteries (no memory loss)
  • More ergonomic design with over moulded protection and magnets on the rear

Anton Sprint eVo Series Features

Standard Features Sprint eVo 1 Sprint eVo 2 Sprint eVo 3
Improved smaller ergonomic design with over moulded protection ✔ ✔ ✔
Enhanced simple to use, intuitive menu driven software ✔ ✔ ✔
CO CO2 CO/CO2 ratio, O2 XS air, temperature, efficiency with printout ✔ ✔ ✔
FreeVo flue probe with unique moisture extraction system (Patent pending 1207896.0)   ✔ ✔
Standard flue probe with split chamber moisture/filter protection ✔
Timed let by/tightness test (IGE/Up/1b) with printout (0.01 resolution up to 199.99 mBar)   ✔ ✔
Draught/differential pressure measurement with timer   ✔ ✔
Operating/working pressure report with printout   ✔ ✔
Timed CO build up tests (BS 7967) with appliance selection ✔ ✔ ✔
Flow & return temperature with printout ✔ ✔ ✔
Optional Gooseneck Gas Leak Detection with searchlight   Optional Optional
Li-ion rechargeable battery (no memory loss) ✔ ✔ ✔
Instant print facility, without saving to memory ✔ ✔ ✔
Internal memory stores over 200 readings ✔ ✔ ✔
All previous logs can be recalled & viewed on screen ✔ ✔ ✔
Personalised printouts with traceability & Engineer / Customer signature column ✔ ✔ ✔
Improved high contrast graphic screen, multi viewing angle and temperature compensated ✔ ✔ ✔
Simplified purge structure, enabling quick use of non pumped tests, saving time & battery life ✔ ✔ ✔
Software to enable USB/PC communication with personalised PDF reports   ✔ ✔
Bluetooth™ enabled communication     ✔
Five year limited warranty - BS7967: 2010 Parts 1to5 & EN50379: 2012 Parts 1&3 ✔ ✔ ✔

What's In The Box?

  • Anton Sprint eVo1 Analyser
  • Standard Flue Probe with Split Chamber Protection
  • Rechargeable Infrared Printer
  • Pipe Clamp Temperature Probes (15-28mm)
  • Moulded Protection with Integral Magnets
  • Spare Filter
  • Spare Printer Roll
  • Instruction Manual & Quick Start Guide
  • 240V Mains Charger
  • Laptop Style Carry Case
  • Calibration Certificate

Related Products

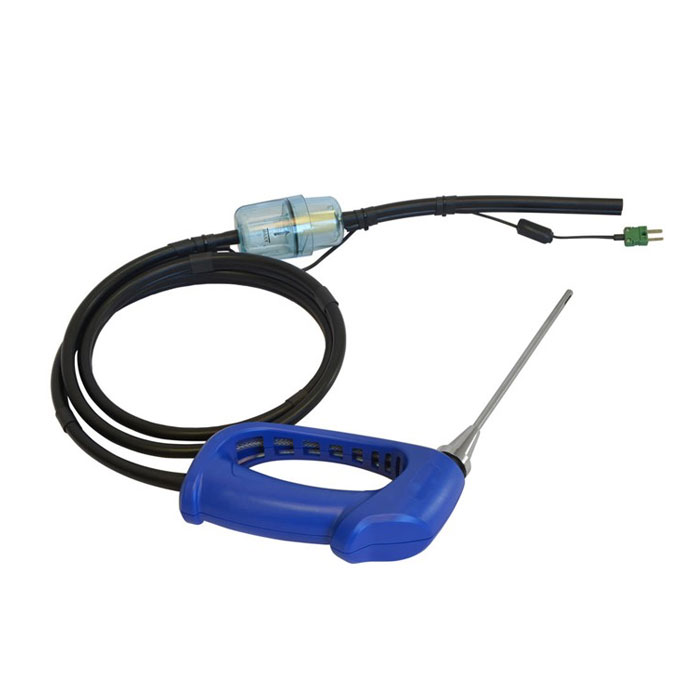

Anton FreeVo Flue Probe
