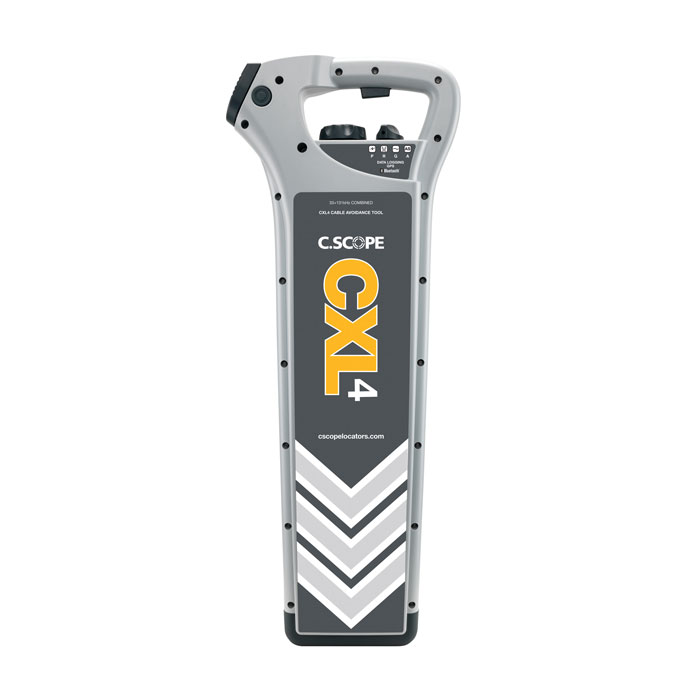

C.Scope CXL4-DBG Bluetooth Datalogging Cable Avoidance Tool

The C.Scope CXL4-DBG Cable Avoidance Tool is a datalogging, smart cable locator that features a large internal memory and Bluetooth® connectivity. It can detect even the most hidden metal cables and pipes and is therefore ideal for pre-excavation checks in the utilities, construction and rail industries.

As a standalone instrument, the C.Scope CXL4-DBG can operate in power or radio mode. The power mode detects the signal emitted by live electric current in subterranean cables whilst radio mode can pick up on radio-type signal emitted by metallic pipes or cables underground.

When used in conjunction with a signal generator, the C.Scope CXL4-DBG is capable of detecting a wide range of underground services. This is especially pertinent when using the SGV4 Signal Generator which can produce frequencies of 33kHz and 131kHz, the latter of which is useful for detecting thin, short or unearthed cables.

Finally, the AllScan mode can detect a very wide frequency range which allows it to perform comprehensive inspections and check the accuracy of findings in the other three modes.

The CXL4-DBG’s AlarmZone™ feature warns the user when shallow cables are detected. The trigger depth can be adjusted according to the user’s preference. The swing indicator helps avoid user error by warning if the locator is being swung excessively. An Auto Self Test function means that calibration is not required with this locator whilst Peak Hold ensures accuracy by freezing the strongest signal value detected.

Information from inspections is clearly displayed on the C.Scope CXL4-DBG’s backlit LCD screen. Readings are saved to the internal memory of the locator which has enough storage for roughly 12 months’ data. Data transfer can be carried out via Bluetooth® or USB with analysis available with the C.Scope PC Toolkit and the C.Scope Relay Android App. Integrated GPS can provide a physical location stamp and Bluetooth® connection to local GPS Survey equipment enables 'one-pass' underground utility surveys.

Weatherproof IP65-rated casing means that the C.Scope CXL4-DBG is ideal for use in challenging conditions and there is also a three-year manufacturer’s warranty. An SGA4 or an SGV4 Signal Generator can be added to this purchase by using the checkboxes above.

C.Scope part number: CXL4CAT-DBG

Key Features

  • Power, radio, generator or AllScan mode
  • Detects 131kHz frequency for small, thin or unearthed cables
  • Alarms warn of shallow pipes/cables
  • Swing indicator
  • Auto-test function
  • Backlit LCD screen
  • Datalogging with large memory
  • Data transfer via USB or Bluetooth
  • Three-year warranty



 CXL4CXL4-DCXL4-DBGDXL4-DDXL4-DBGMXL4-DMXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
– 33+131kHz
– 131kHz
– 33kHz
– 8kHz
– 512Hz
– 640Hz
All Scan Mode
Accurate Depth Identification
Signal Current Measurement
Data Logging
Data Logging Rate – once per second
2Gb Memory
Data Transfer via USB
Data Transfer via BluetoothTM  –
External Survey Level GPS via BluetoothTM
In-Built GPS position logging
Network Rail Approved
Specification
  • Controls: On/Off Switch: Spring loaded trigger switch under handle Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. All Scan Mode Sensitivity Control
  • Audible Indication: Removable and user replaceable loudspeaker module
  • Visual Indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; AlarmZoneTM; Battery Condition; Self Test Indicator
  • Self Test: Automatic Daily Self Test
  • Swing Indicator: Audio beep to indicate incorrect use of the Locator
  • Generator Mode Frequencies: Simultaneous 131,072Hz and 32,768Hz
  • Datalogging: Internal capacity for storing over 12 months of data (in normal use) logged once per second Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, Frequency, Depth, Signal Current Measurement, Self Test Result, Swing Indicator, GPS position
  • GPS: GPS/QZSS/GLONASS/SBAS
  • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
  • Weight: 2.65kg (5 lb 13 oz)
  • Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
  • Performance: Locate Accuracy: better than 10% of depth
  • Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery Life: 40 hours intermittent use at 20oC (68oF) using alkaline cells
  • IP Rating: 65
Label Type Size Download
pdf C.Scope CXL4 / DXL4 / SGA4 / SGV4 Datasheet pdf 1.2 MB Download
