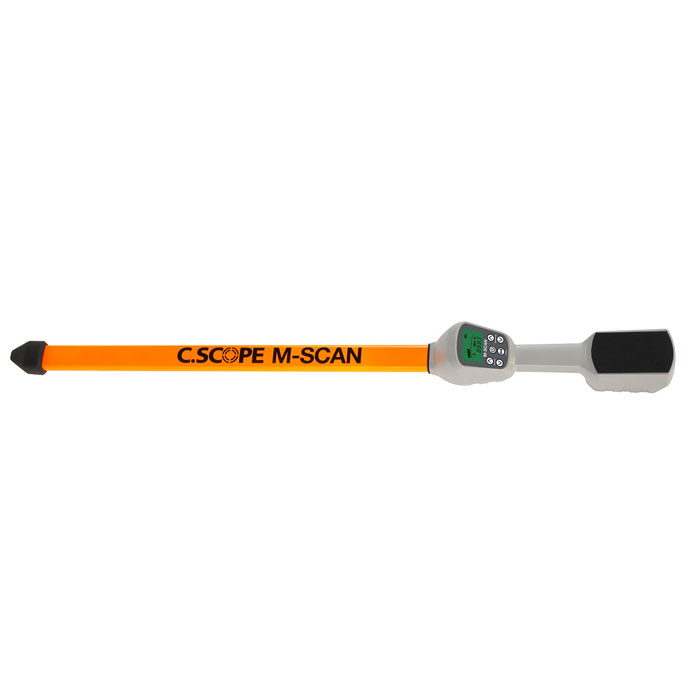

C.Scope M-Scan Magnetometer

Be the first to review this product

  • Twin sensor coils detect magnetic field strength up to 99.9µT
  • Suitable for finding buried ferrous metal up to 5m deep
  • Indicates polarity and signal strength as well as giving power cable warning

rrp £700.00

now £555.00 (Ex. VAT) £666.00 (Inc. VAT)

rrp £700.00

OR

Please select a free gift below.

"An ideal instrument for locating underground iron and steel objects"

  • Description

    C.Scope M-Scan Magnetometer

    The C.Scope M-Scan Magnetometer is a useful handheld instrument that detects ferrous objects below ground including manholes, septic tanks, valve boxes and cast iron piping for gas and water. As the detector only picks up on ferrous metals, there is no interference from non-ferrous obstacles and it can detect a magnetic field down to a depth of 5m through its twin sensor coils.

    Visual and audio indications are provided by the C.Scope M-Scan. A constant low frequency tone is given out when no ferrous objects are detected and the pitch raises when the magnetometer is brought over a compatible underground object. The LCD screen indicates signal strength with a resolution of 20nT, shows polarity direction and also displays a warning when a 50Hz-60Hz power cable is detected. An analogue bar graph across the top of the screen provides further information on the signal strength.

    Object depth can also be estimated with this detector whilst an erase function helps negate interference from nearby metal structures like fences and shipping containers. The maximum possible signal reading is 99.9µT and audio signals can be received either by the loudspeaker or through headphones.

    The C.Scope M-Scan is resistant to water and dust damage (IP65-rated) thanks to its epoxy sandwich coated aluminium sensor tube and heavy duty ABS case. The magnetometer weighs just 1.3kg and has a 100-hour battery life so it is extremely practical. A handy carry case is provided as standard and the detector constitutes a really useful way of locating iron-based obstructions buried up to 5m deep in earth, gravel or snow ahead of excavation.

    Key Features

    • Detects magnetic fields of buried ferrous metal
    • Maximum depth: 5m
    • Maximum signal: 99.9µT
    • Twin sensor coils
    • Audible tone indication
    • Visual indication signal strength and polarity
    • Detection of 50Hz to 60Hz power cables
    • IP65 dust and water resistance
    • Erase function for negating interference
    • 100-hour battery life
  • Specification

    • Part No.: M-SCAN
    • Detection Depth Range: 5 m (dependent on site conditions)
    • Mains/Line Detection: Visual warning of 50/60Hz electric field
    • Erase function: Background masking function allowing detection work near ferrous material
    • Sensitivity: 4 levels of adjustment
    • Detection Resolution: 20nT
    • Controls: Volume, Sensitivity, On/Off and Erase
    • Display: Numeric indication of signal amplitude, Multi segment bar graph, Polarity indicator, Zero field crossing indicators, Battery level and 50-60 Hz electric field warning
    • Sound: 8 volume levels, including mute. Frequency (pitch) varies with signal amplitude. In-built loudspeaker plus 3.5mm jack socket for standard headphones.
    • Sensor Spacing: 0.5m
    • Overall Length: 1.09m
    • Sensor Tube Length: 0.73m
    • Case Construction: Heavy duty impact ABS (Water and dust resistant to IP65)
    • Sensor Tube Construction: Epoxy sandwich coated aluminium (Waterproof and dust resistant to IP66)
    • Tip Protector Construction: Heavy duty thermoplastic elastomer
    • Batteries: Eight 1.5V Cells, type AA, LR6, or equivalent. Alkaline cells recommended. Compatible with NiMH rechargeable batteries. 100 hours battery life typical intermittent use. 4 segment visual bar Battery Indicator.
    • Weight: 1.3kg
    • Operating Temperature: -20˚C to 50˚C
    • Storage Temperature: -30 to +70oC (batteries should be removed for storage at extremes of temperature)
    • Carry bag: Protective shoulder carry case
