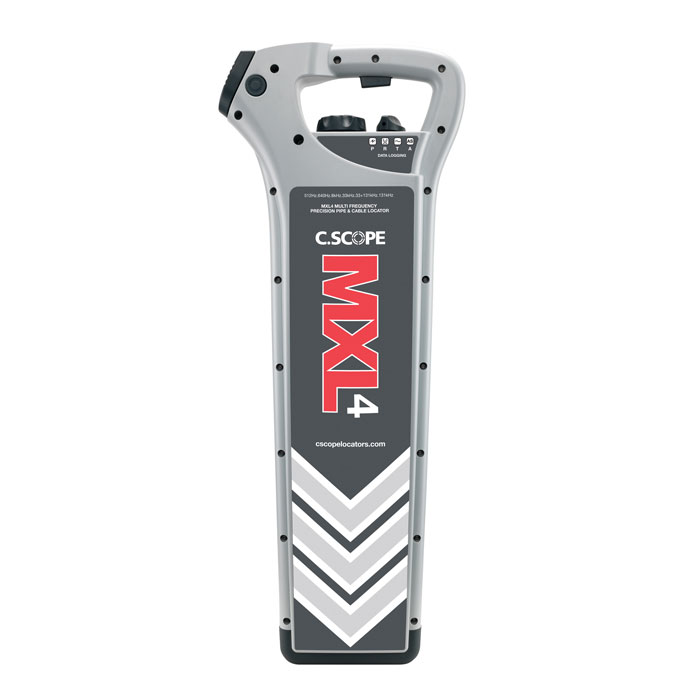

C.Scope MXL4-D Datalogging Multi Frequency Locator

Be the first to review this product

  • Detects transmitted signals from high 131kHz to ultra-low 512Hz
  • Works as standalone locator or with MXT4 Transmitter
  • Full datalogging function with 2GB internal memory

rrp £1,000.00

now £620.00 (Ex. VAT) £744.00 (Inc. VAT)

rrp £1,000.00

Please select a free gift below.

"A wide frequency range for blanket coverage"

  • Description

    C.Scope MXL4-D Datalogging Multi Frequency Locator

    The C.Scope MXL4-D Datalogging Multi Frequency Locator is a useful cable locator and tracer which stands out because of its large detection range for signal frequencies. Multiple detectable frequencies allow the locator to find and trace all sorts of underground pipes and cables, right the way from thin streetlight wiring to large utility pipes. The highly sensitive locator is also optimised for negating interference.

    In addition to an all purpose 33kHz signal, the C.Scope MXL4-D can also pick up a 131kHz signal which is suitable for locating or tracing short, thin or unearthed wires. The two frequencies can be simultaneously detected for utility avoidance. For tracing longer cables, the locator can pick up an 8kHz signal, whilst two ultra low frequency signals - 512Hz and 640Hz - are available for specialist applications such as locating blockages in metal pipes. This is all performed in conjunction with the C.Scope MXT4-D Transmitter.

    Other operating modes on the C.Scope MXL4-D offer excellent flexibility. As a standalone instrument, the locator works in power and radio mode which can detect signals from live electric current and radio-type signals from subterranean metal surfaces. AllScan mode is also available which detects signal frequencies which may lie outside the capabilities of other modes.

    Further to its multiple frequencies and operating modes, the C.Scope MXL4-D provides accurate depth indications from 0.1 to 9.99m with a resolution of just 0.1m. The locator’s peak hold function helps pinpoint pipe/cable location and trace the line of the utility by remembering where the signal is strongest. AlarmZone™ gives the user warning if obstacles are particularly close to the surface. The Swing Indicator sounds when the locator is swinging too much to take accurate readings.

    The datalogging functionality of the C.Scope MXL4-D means that it can store roughly 12-months’ worth of data on its 2GB internal memory. This information can be transferred by a USB cable to a PC for further analysis and storage with free C.Scope PC Toolkit software. Readings are displayed on the locator's clear LCD screen.

    An automatic daily self test helps ensure accuracy and the C.Scope MXL4-D had weatherproof, IP65-rated casing for use in challenging environments. A three-year warranty is provided by the manufacturer. To make the most of your purchase, you may wish to consider adding the C.Scope MXT4 Transmitter by clicking the checkbox above.

    Key Features

    • Radio, power, transmitter and AllScan modes
    • Picks up signals at 131kHz, 33kHz, 8kHz, 640Hz and 512Hz
    • Depth measurement between 0.1m and 9.99m
    • Depth measurement accuracy: ±5%
    • Depth measurement resolution: 0.1m
    • Peak Hold
    • AlarmZone™ for shallow obstacles
    • Swing indicator prevents incorrect use
    • Internal memory for datalogging
    • Data transfer via USB cable
    • Automatic daily self test
    • IP65 rated
    • Three-year warranty



     CXL4CXL4-DCXL4-DBGDXL4-DDXL4-DBGMXL4-DMXL4-DBG
    Power Mode
    Radio Mode
    Generator / Transmitter Mode
    – 33+131kHz
    – 131kHz
    – 33kHz
    – 8kHz
    – 512Hz
    – 640Hz
    All Scan Mode
    Accurate Depth Identification
    Signal Current Measurement
    Data Logging
    Data Logging Rate – once per second
    2Gb Memory
    Data Transfer via USB
    Data Transfer via BluetoothTM  –
    External Survey Level GPS via BluetoothTM
    In-Built GPS position logging
    Network Rail Approved
  • Specification

    • Audio indication: Removable and user replaceable loudspeaker module
    • Visual indication: Multi-segment Liquid Crystal Display indicating: Signal Strength; Mode selected; AlarmZoneTM; Battery Condition; Self Test Indicator In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
    • Datalogging: Internal capacity for storing over 12 months of data (in normal use) logged once per second Data logged includes Time/Date, Mode, Sensitivity Level, Received Signal Level, Frequency, Depth, Signal Current Measurement, Self Test Result, Swing Indicator
    • Data connector: Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
    • Self Test: Automatic Daily Self Test
    • Swing Indicator: Audio beep to indicate incorrect use of the Locator
    • Transmitter mode frequencies: Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
    • Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
    • Weight: 2.65kg
    • Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
    • Performance: Locate Accuracy: better than 10% of depth; Depth Accuracy: ±5% @ 1m (3’3”); Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’); Line Depth Resolution: 0.1m (0.4”); Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type; Sonde Depth Resolution: 0.1m (0.4”); Current Measurement: 0.01mA to 100mA
    • Battery type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
    • Battery life: 40 hours intermittent use at 20oC (68oF) using alkaline cells
    • IP rating: 65
    • Warranty: Three years
