Castle dBAir Class 1 Handheld Safety and Environmental Sound Monitoring System

Be the first to review this product

  • Accurately measures personal sound exposure and environmental noise
  • Wirelessly transfer data to Castle Cloud, three-year licence included
  • Sound level calibrator and electronic barometer improve accuracy
(Ex. VAT) £2,915.00 (Inc. VAT) £3,498.00

Please select a free gift below.

  • Description

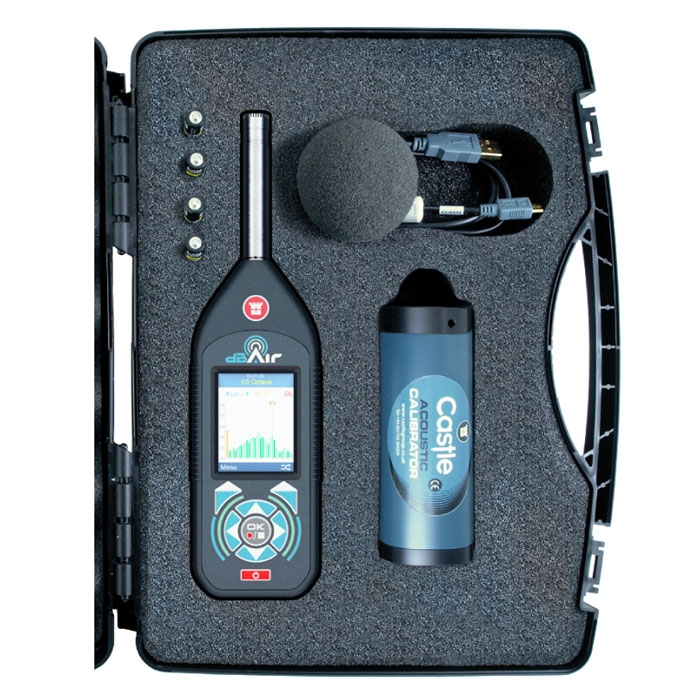

    Castle dBAir Class 1 Handheld Safety and Environmental Sound Monitoring System

    The Castle dBAir Handheld Safety and Environmental Sound Monitoring System is a comprehensive package designed for performing checks of environmental noise in addition to measuring personal sound exposure of staff members. The Castle dBAir Safety and Environmental Sound Level Meter is the main instrument of the system and is complemented by a GA607 Class 1 Calibrator, GA690 electronic barometer, pro account licence for Castle Cloud storage software, and a rubber case.

    Sound can be measured from 20dB to 140dB over two separate 95dB linear ranges by the Castle dBAir Sound Meter. The microphone detects sound between 10Hz and 20kHz with Class 1 accuracy and 0.1dB precision and frequency can have A, C or Z weighting. It is also possible to adjust the response time between 10ms and 24h and the meter can assess various parameters such as Lspl, Leq, Lmax, peak, personal dose, exposure points and percentiles.

    Results are shown on the Castle dBAir’s vibrant colour screen in both graphical and digital formats and the meter is easy to operate thanks to its intuitive push buttons and simple menus. Results are saved to the meter’s 16GB internal memory and can be automatically uploaded to the Castle Cloud online facility via the wireless Wi-Fi connectivity. A three-year pro account licence for Castle Cloud software is included within the set for up to five users, each with his/her own instrument.

    The Castle GA607 Class 1 Sound Calibrator included within the system transmits two tones within its half-inch cavity in order to accurately calibrate the sound meter before beginning checks. An electronic barometer - the GA690 - measures pressure from 0 to 1300mbar so the user can accurately adjust for different atmospheric conditions. A rubber case for the Castle dBAir sound meter is included as standard.

    Octave band analysis can be added to the purchase by clicking the checkbox above. The octave band version of the system also comes supplied with a protective carry case for the entire set.

    Castle part number: NK111 / NK112

    Key Features

    • Castle dBAir Class 1 Sound Meter
    • Minimum measurement: 20dB
    • Maximum measurement: 140dB
    • 2 x 95dB linear ranges
    • Lspl, Leq, Lmax, peak, personal dose, exposure points and percentiles
    • 16GB internal memory with wireless connectivity
    • Three-year Castle Cloud Pro Account (5 users)
    • Class 1 Sound Level Calibrator
    • Electronic Barometer
  • Specification

    • Applicable Standards: IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted)
    • IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
    • Microphone: Class 1 - ½” Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
    • Noise Floor (Typical): ‘A’ Weighting < 16.0dB; ’C’ Weighting < 15.0dB; ‘Z’ Weighting < 25.0dB
    • Measurement Ranges: 25 - 115dB (LOW); 50 – 140dB (HIGH)
    • Frequency Weightings: A, C or Z
    • Frequency Range: 1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
    • Time Weighting: Slow, Fast, Impulse
    • Octave Band Analysis: Where fitted 1/1 only
    • Display: 2.4” Full Colour TFT 240x320 pixels
    • Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings.
    • Measurement parameters: LSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Levening, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L5, L10, L20, L25, L50, L75, L90, L95, L90) plus LAF* for Noise act assessment.
    • Languages: English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
    • Time History: Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
    • Memory: 16GB
    • Input / Output Connection: Micro USB Type B
    • Batteries: 4 x AA (1.5V)
    • Battery Life: Up to 8 Hours continuous operation (screen settings dependent)
    • Dimensions Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D)
    • Dimensions Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
    • Weight: 305g
  • Supplied Accessories

    • Castle dBAir GA141SE Class Safety and Environmental Sound Level Meter (GA141SEO with Octave Band Analysis)
    • Castle GA607 Class 1 Sound Level Calibrator
    • Castle GA690 Electronic Barometer
    • 3-year Castle Cloud Pro Account for 5 Users
    • Rubber case
    • Protective System Carry Case (with Octave Band Analysis only)
