Castle dBAir Class 1 Safety and Environmental Noise Monitoring System

Castle Group
SKU: CASTNK114
  • Equally adept for safety and environment noise monitoring
  • Wirelessly upload results to Castle Cloud software (Pro account included)
  • Weatherproof cable, protective cover and tripod for outdoor use
More Info
Typically ships in 5-7 working days

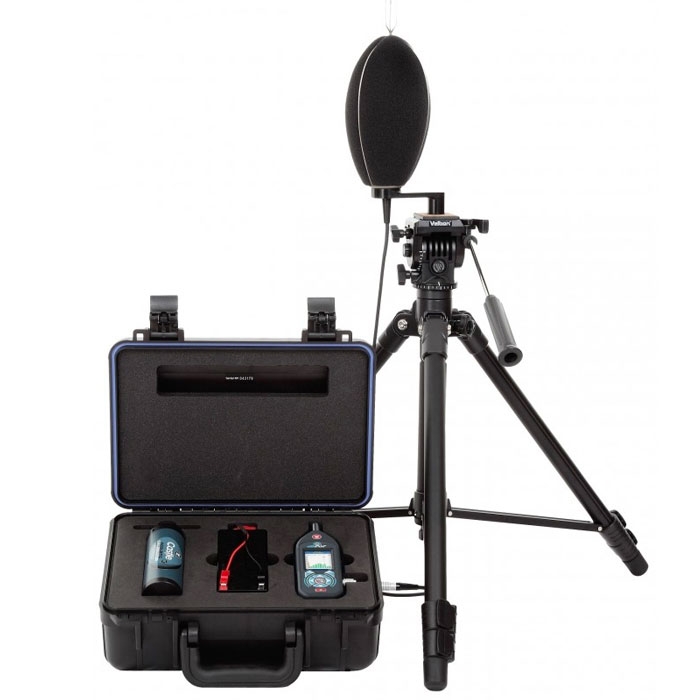

Castle dBAir Class 1 Safety and Environmental Noise Monitoring System

The Castle dBAir Class 1 Safety and Environmental Noise Monitoring System is based around the advanced Castle GA141SE Sound Level Meter combined with several useful accessories allowing the user to make the most of its advanced capabilities in outdoor conditions. The meter is supplemented by a software licence, calibrator, barometer, weatherproof protection and a tripod.

The Castle dBAir GA141SE Sound Level Meter measures sound from 20dB to 140dB over two distinct but overlapping 95dB linear ranges with Class 1 level accuracy and a precision of 0.1dB. Frequency can be set at A, C or Z weighting with fast and slow response times between 10ms and 24h. Various measurement parameters can be assessed with the sound meter including environment related factors like percentile measurement and safety-related factors like personal dose, exposure points and ear protection calculation.

The 16GB internal memory of the Castle dBAir GA141SE allows it to store thousands of readings which can then be recalled to the screen in a digital or graphical format. Alternatively, they can be downloaded to a PC via USB or wirelessly transferred to the Castle Cloud online storage facility via the instrument’s Wi-Fi connectivity. A three-year licence for Castle Cloud software is included in the kit for five people each using a separate meter.

The Castle GA607 Class 1 Sound Level Calibrator is also included. This instrument provides a 94dB and 104dB tone at 1kHz in its 1/2” cavity which allows the user to check the sound meter at two separate points within its range. The GA690 electronic barometer measures atmospheric pressure from 0 to 1300mbar, thus allowing the user to compensate for different atmospheric conditions.

Weatherproof housing for the microphone protects it from the elements when the system is placed outside to monitor environmental noise. There is a weatherproof case to house the entire system whilst a 3m weatherproof microphone cable allows the microphone to be placed at the optimum position for monitoring. A 1.6m heavy-duty tripod serves to keep the microphone elevated.

To add octave band analysis capability to your purchase, please click the checkbox above.

Castle part number: NK114

Key Features

  • Measurement ranges: 20dB to 115dB, 45dB to 140dB
  • Linear range: 95dB
  • Class 1 microphone
  • 16GB internal memory
  • Wi-Fi connectivity
  • Multiple safety and environmental measurement parameters
  • Class 1 sound level calibrator
  • Electronic barometer for atmospheric adjustment
  • 3-year Castle Cloud Pro account
  • Weather protection for microphone
  • 3m microphone cable
  • Case for all system components
  • Heavy duty tripod

What's In The Box?

  • Castle GA141SE dBAir Class 1 Safety and Environmental Sound Level Meter
  • Castle GA607 Class 1 Sound Level Calibrator
  • Castle GA690 Electronic Barometer
  • 3-year licence for Castle Cloud software pro account
  • Weatherproof microphone cover
  • Weatherproof 3m microphone cable
  • Weatherproof system carry case
  • Heavy duty tripod (1.6m)
Specification
  • Applicable Standards: IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted)
  • IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
  • Microphone: Class 1 - ½” Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
  • Noise Floor (Typical): ‘A’ Weighting < 16.0dB; ’C’ Weighting < 15.0dB; ‘Z’ Weighting < 25.0dB
  • Measurement Ranges: 25 - 115dB (LOW); 50 – 140dB (HIGH)
  • Frequency Weightings: A, C or Z
  • Frequency Range: 1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
  • Time Weighting: Slow, Fast, Impulse
  • Octave Band Analysis: Where fitted 1/1 only
  • Display: 2.4” Full Colour TFT 240x320 pixels
  • Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings.
  • Measurement parameters: LSPL, LE, LEQ, LMAX, LMIN, Peak, LEP’d, Exposure Points, Dose, Hearing Protector Calculator, Ltm3, Ltm5, Lday, Levening, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L5, L10, L20, L25, L50, L75, L90, L95, L90) plus LAF* for Noise act assessment.
  • Languages: English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
  • Time History: Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
  • Memory: 16GB
  • Input / Output Connection: Micro USB Type B
  • Batteries: 4 x AA (1.5V)
  • Battery Life: Up to 8 Hours continuous operation (screen settings dependent)
  • Dimensions Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D)
  • Dimensions Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
  • Weight: 305g
