Castle dBAir Safety Managers’ Noise System

Be the first to review this product

  • Everything the user needs to correctly execute statutory risk assessments
  • Measure sound between 20dB and 140dB for safety-specific parameters
  • Three-year Pro account licence for Castle Cloud software
(Ex. VAT) £2,420.00 (Inc. VAT) £2,904.00

* Required Fields

Please select a free gift below.

  • Description

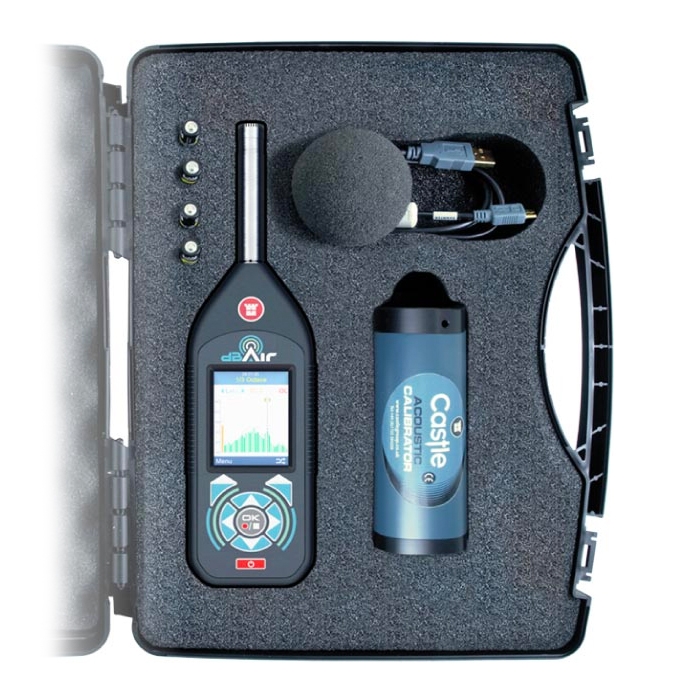

    Castle dBAir Safety Managers’ System

    The Castle dBAir Safety Managers’ System is a complete solution to ensure the safety of workers in terms of noise exposure. Excess noise can have damaging long-term effects on health so adequate monitoring is vital to ensuring the good health of employees and meeting regulations such as the Noise at Work Regulations 1989. The system uses the Class dBAir Safety Sound Level Meter as its main instrument and this is backed up by handy accessories including calibrator, Castle Cloud software licence, rubber casing and a carry case for entire system.

    The Castle dBAir Sound Meter can measure sound between 20dB and 140dB over two separate 95dB linear ranges. The user can set the frequency weighting to A, C or Z and the response time can be adjusted between 10ms and 24h. Several measurement parameters can be assessed using the meter including Lspl, Leq, Lmax, peak and exposure points, thus allowing the user to perform risk assessments in accordance with statutory requirements. Depending on the user’s choice of kit, the meter can be supplied with a Class 1 or Class 2 microphone and with or without octave band analysis.

    A large 16GB internal memory allows the Castle dBAir to store thousands of readings to its internal memory. Results can then be recalled to the screen in a graphical format, directly downloaded to a PC using the included cable, or wirelessly uploaded to the Castle Cloud online storage facility using the meter’s Wi-Fi connectivity. A three-year Castle Cloud pro account licence for five users is included which allows access to readings from anywhere in the world plus advanced reporting and analysing functions.

    A sound level calibrator is included with all kits and allows the user to check the meter’s accuracy. Class 1 kits are supplied with a Castle GA607 Class 1 Calibrator which can produce two tones (94dB, 104dB) in its half-inch microphone cavity. Class 2 kits come with a Castle GA601 Class 2 Calibrator that produces a single 94dB tone. In order to compensate for atmospheric pressure, a Castle GA690 electronic barometer - which measures between 0 and 1300mbar - is included with Class 1 kits.

    Protective rubber casing for the Castle dBAir Sound Meter helps it withstand the rigours of day-to-day use and all the components of the Safety Managers’ System are supplied in a single protective carry case.

    Castle part number: NK101 / NK102 / NK103 / NK104

    Key Features

    • Measure sound from 20dB to 140dB
    • 2 x 95dB linear ranges
    • Measure Lspl, Leq, Lmax, peak and exposure points
    • Assess appropriate ear protection level
    • 16GB internal memory
    • Automatic wireless upload to Castle Cloud
    • Three-year Castle Cloud Licence (5 users)
    • Calibrator ensures accuracy
    • Protective rubber casing
    • System carry case
      Class 1 System Class 1 System with Octaves Class 2 System Class 2 System with Octaves
    Castle GA141S Sound Meter
    Castle GA141SO Sound Meter
    Castle GA241S Sound Meter
    Castle GA241SO Sound Meter
    Octave Band Analysis
    GA607 Class 1 Calibrator
    GA601 Class 2 Calibrator
    GA690 Electronic Barometer
    3-Year Castle Cloud Pro Account 5 users 5 users 5 users 5 users
    Protective Rubber Casing
    System Carry Case
  • Specification

    • Applicable Standards: IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted)
    • IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
    • Microphone: Class 1 - ½” Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
    • Noise Floor (Typical): ‘A’ Weighting < 16.0dB; ’C’ Weighting < 15.0dB; ‘Z’ Weighting < 25.0dB
    • Measurement Ranges: 25 - 115dB (LOW); 50 – 140dB (HIGH)
    • Frequency Weightings: A, C or Z
    • Frequency Range: 1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
    • Time Weighting: Slow, Fast, Impulse
    • Octave Band Analysis: Where fitted 1/1 only
    • Display: 2.4” Full Colour TFT 240x320 pixels
    • Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings.
    • Measurement parameters: Lspl, Leq, Lmax, Lmin, Peak, Lep’d, Exposure Points,
    • Dose, Hearing Protector Calculator; 1/1 octaves
    • Languages: English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
    • Time History: Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
    • Memory: 16GB
    • Input / Output Connection: Micro USB Type B
    • Batteries: 4 x AA (1.5V)
    • Battery Life: Up to 8 Hours continuous operation (screen settings dependent)
    • Dimensions Including Pre-Amplifier: 210mm (H) x 70mm (W) x 30mm (D)
    • Dimensions Excluding Pre-Amplifier: 145mm (H) x 70mm (W) x 30mm (D)
    • Weight: 305g
  • Supplied Accessories

    • Castle dBAir Sound Level Meter
    • Castle Cloud Pro Account Licence (three years for five users)
    • Castle Sound Level Calibrator
    • Electronic Barometer (Class 1 kits only)
    • Protective system carry case
    • Protective rubber casing
