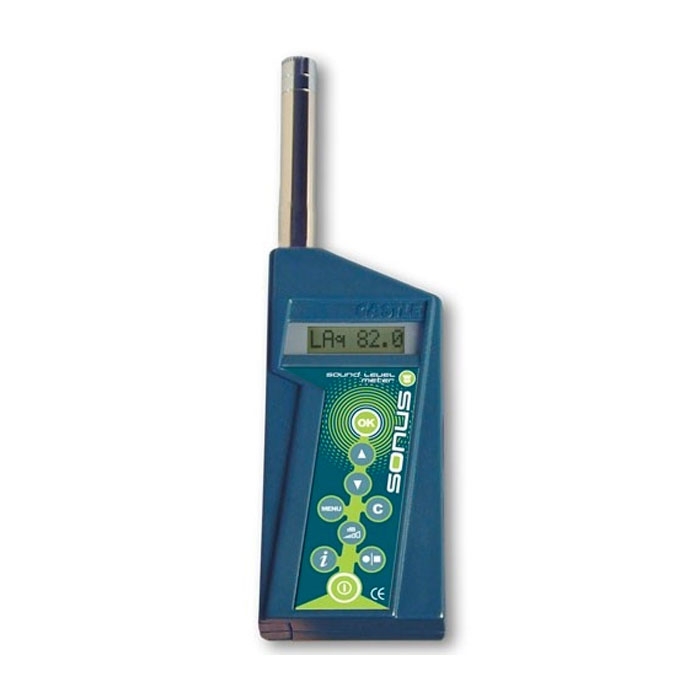

Castle GA116E SONUS Class 1 Environmental Datalogging Sound Level Meter

Be the first to review this product

  • Specifically designed for environmental monitoring with extremely low noise floor
  • Measure from 20dB to 130dB over three separate measurement ranges
  • Save up to 2100 downloadable readings to the internal memory

rrp £1,125.00

now £1,025.00 (Ex. VAT) £1,230.00 (Inc. VAT)

rrp £1,125.00

OR

Please select a free gift below.

  • Description

    Castle GA116E SONUS Class 1 Environmental Datalogging Sound Level Meter

    The Castle GA116E SONUS Class 1 Environmental Datalogging Sound Level Meter is a pocket-sized instrument specifically designed for environmental sound monitoring. It can measure sound between 20dB and 130dB over three separate ranges. Each range has linear operation over 70dB and the microphone boasts Class 1 level accuracy and precision readings down to 0.1dB.

    The Castle GA116E’s particular sensitivity to low sound levels is perfect for measuring low-volume ambient noise and it has numerous measurement options such as Lp, Leq, Lmax, peak and LE plus percentile measurement over three percentiles, one of which is user adjustable. The simultaneous measurement function allows two different parameters to be measured concurrently.

    There are options for A, C or Z frequency and peak weighting as well as the choice between slow, fast or impulse time weighting. Readings are shown in dB or Pa2h on the one-line digital display and operation is extremely easy thanks to the intuitive push buttons and menus, including a dedicated range button.

    As a datalogging meter, the Castle GA116E can save up to 2100 readings to its internal flash memory which can then recalled to the screen. Results are downloadable to a PC via a USB cable when used in conjunction with the dBdataLITE noise analysis software included alongside the sound meter.

    The Castle GA116E has tough plastic casing to help withstand the challenges of daily use and the battery provides roughly 12 hours’ continuous operation. It is an extremely compact and lightweight meter which allows the user to transport it easily around large industrial sites.

    Castle part number: GA116E

    Key Features

    • Max measurement: 130dB
    • Min measurement: 20dB
    • Linear range: 70dB
    • Measurement ranges: 20 to 90dB; 40 to 110dB; 60 to 130dB
    • Lp, Leq, Lmax, peak, and percentile measurement
    • A, C, and Z frequency and peak weighting
    • Internal storage for 2100 readings
    • Downloadable via USB cable and dBdataLITE
    • 12-hour battery life
  • Specification

    • Measurement ranges: 20dB to 90dB; 40dB to 110dB; 60dB to 130dB
    • Display ranges: 19dB to 93dB; 39dB to 113dB; 59dB to 133dB
    • Linear ranges: 22dB to 90dB; 40dB to 110dB; 50dB to 113dB
    • Peak ranges: 30dB to 93dB; 50dB to 113dB; 70dB to 133dB
    • Measuring Channels: Two
    • Parameters: Lp, Leq, Lmax, Apeak, Cpeak, Zpeak, LE, L10, L90, Ln (user selectable), Measurement Run Time, Overload, Interval Duration
    • Linear Operating Range: 70dB
    • Frequency Weighting:‘A’, ‘C’ and ‘Z’. Combinations of ‘A’, ‘A’&’C’ simultaneous or ‘A’&’Z’ simultaneous available for Lp, Leq and Lmax.
    • Time Weighting: ’Slow’, ’Fast’ and ‘Impulse’
    • Percentiles: L10, L90 and either L1 , L5 , L50 , L95 , L99
    • Memory: 2100 Data Intervals Maximum in one or multiple recordings
    • Microphone (Type Free Field): ACO 7146 pre-polarized ½” condenser microphone, 50mV/Pa
    • Microphone Preamplifier: Low Noise, Removable Preamplifier
    • Noise Floor: <12.0dB(A) , <12.0dBC , <14.5dB(Z)
    • Display: Alphanumeric LCD with Contrast Control, digit size 7mm x 5mm
    • Batteries: 1 x PP3 (9V) - Typically 12 hours continuous use
    • External Power: 12v - 18v via Multi Purpose I/O Socket
    • Connections: 9 Pin Multi Purpose I/O Socket for USB (Cable Supplied), AC Output, External Power
    • Temperature Operating Range: -10 to + 50ºC
    • Humidity: Up to 90% RH Non Condensing
    • Electromagnetic Compatibility: IEC 61672-1 : 2002
    • Case: High Impact ABS plastic with membrane keypad
