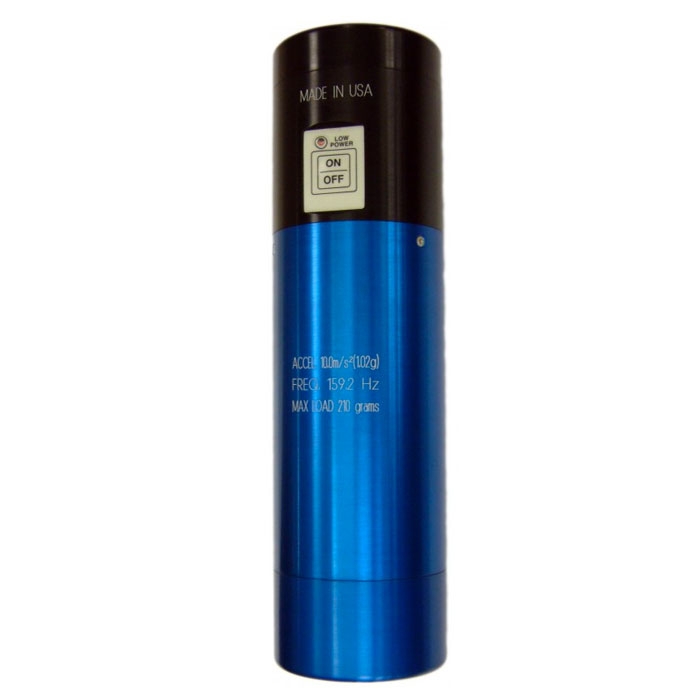

Castle GA606 Vibration Calibrator

Castle Group
SKU: CASTGA606
  • Suitable for calibration of accelerometers and other vibration monitoring systems
  • Produces 159.2Hz calibration vibration with 1g peak or RMS acceleration
  • PRoduces between 80 and 1600 cycles depending on accelerometer weight
More Info
Typically ships in 5-7 working days

Castle GA606 Vibration Calibrator

The Castle GA606 Vibration Calibrator is a portable 1g handheld shaker that allows the user to perform speedy checks on accelerometers and other vibration recording systems/devices. The calibrator produces user-adjustable calibration vibration for either RMS average or peak for accelerometers weighing anything up to 210g.

Calibration signal operates at 159.2Hz and the user can choose between a 1g RMS or 1g peak acceleration output. Depending on the weight of the accelerometer under calibration, the Castle GA606 can perform between 80 and 1600 cycles and there is manual override of the 1min 45s automatic shut-off point if required. Mechanical stops protect the internal suspension from overloads.

The Castle GA606 complies with CE standards and has a long battery life of 2 to 10 hours depending on load mass. It has a female thread for mounting and can also be adapted to run from an AC supply.

Castle part number: GA606

Key Features

  • Operating frequency: 159.2Hz
  • Acceleration output (peak & rms): 1g
  • Velocity output: 1g rms
  • Calibration cycles: 80 to 1600
Specification

Performance

  • Operating Frequency: 159.2Hz ±1%
  • Acceleration Output: 1.00g rms / 9.81ms-2 rms ±3%
  • Velocity Output: 9.81mms-1 rms
  • Displacement Output: 9.81 µs rms
  • Transverse Output: <3%
  • Distortion: 0-100g load - <2%, 100-210g load - <3%
  • Maximum Load: 7.4oz / 210g
  • Automatic Shut Off Time: 1.0-2.5 minutes

Calibration Cycles:

  • 2g Load: 320 cycles
  • 25g Load: 600 cycles
  • 50g Load: 1600 cycles
  • 100g Load: 400 cycles
  • 150g Load: 160 cycles
  • 210g Load: 80 cycles

Environmental

  • Temperature Range: +15 to +130°F / -10 to +55°C

Electrical

  • Ramp-Up Time: <3 sec
  • Internal Battery: AA x4
  • DC Power: 10VDC, 2.4A
  • Battery Life: 2g load 8 hours, 100g
  • Load 10 hours, 210g Load 2 hours

Physical

  • Size (Diameter x Height): 2.2in x 7.8in / 56mm x 200mm
  • Weight (with batteries): 31oz / 900g
  • Mounting Thread: 10-32 Female
  • Mounting Torque (maximum): 10inlb / 112 N-cm
