Castle Noise Legislation Starter Pack

Be the first to review this product

  • Includes a GA216I Sound Meter for measuring Leq, LEpd and Cpeak sound
  • Castle GA257B dosemeter measures personal exposure of employees
  • Accurate measurement of sound level pressure from 35dB to 140dB
(Ex. VAT) £1,394.00 (Inc. VAT) £1,672.80
OR

Please select a free gift below.

  • Description

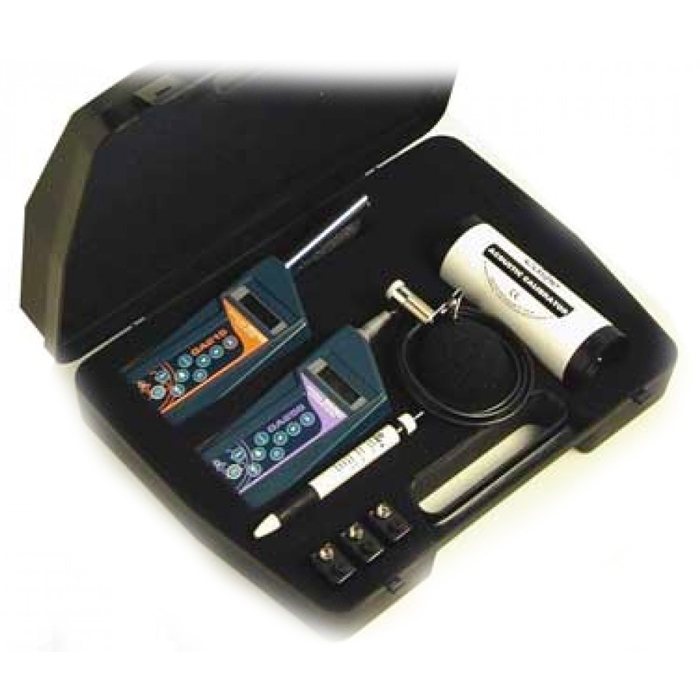

    Castle Noise Legislation Starter Pack

    The Castle Noise Legislation Starter Pack contains everything an employer might need to comply to the Control of Noise at Work Regulations 2005, thus safeguarding employees’ health and wellbeing against excess noise exposure at work. The pack contains a noise level meter, personal noise dosemeter, and calibrator.

    The Castle GA216I Integrating Sound Level Meter is a Class 2 instrument that can measure noise between 35dB and 140dB over three 65dB linear ranges. It detects sounds between 20Hz and 20kHz and allows the user to weight frequency to A or C. Various measurement parameters including Leq average level, LEpd personal exposure and Cpeak can be assessed using the Castle sound level meter.

    In addition to the Castle GA216I, the pack also contains a Castle GA257B personal noise dosemeter. This measures sound across a single range from 75dB to 140dB with focus on the 20Hz to 8kHz range that is potentially most damaging to human hearing. Results are shown on the dosemeter’s one-line LCD display in a range of units whilst it can also calculated projected dose across an eight-hour period.

    Alongside the Legislation Starter Pack’s two measurement instruments, there is also a Castle GA601 Class 2 sound level calibrator which produces a 94dB tone with a frequency of 1kHz. This enables the user to check each meter by inserting the microphone into the calibrator’s half-inch cavity before and after measurements.

    Finally, the noise meter, dosemeter, and calibrator are all supplied in handy carry case alongside useful accessories like a wind muffler and pocket clip.

    Castle part number: NK006

    Key Features

    • Castle GA216I Integrating Sound Level Meter
    • Measurement range: 35dB to 140dB
    • Three separate 65dB operating ranges
    • Measure Leq, LEpd, and Cpeak
    • Castle GA257B Dosemeter
    • Measure personal noise exposure
    • Class 2 calibrator included
    • Meet Noise at Work Regulations 1989
    • Small attaché case
  • Specification

    Castle GA216I Integrating Sound Level Meter

    • Applicable Standards: IEC 61672-1:2013 (Integrating, Sound Exposure and Sound Level Meters); IEC 60651:2001 (Sound Level Meters); IEC 60804:2000 (Integrating Function)
    • Display: Back-lit LCD panel (8x1 Characters) Alpha-Numeric display for measured results
    • Measuring Range: 35dB-140dB
    • Linear operating range (IEC61672-1): 65dB 3
    • Measurement Ranges (IEC61672-1): 35dB-100dB; 55dB-120dB; (Reference Range) 75dB-140dB
    • Noise Floor: Typical ’A’ Weighting <32 dB(A) rms; ’C’ Weighting <38 dB(C) rms
    • Frequency Weighting: ‘A’ and ’C’ to IEC 61672-1:2002 and IEC 60651:2001
    • Frequency Range: 12.5 Hz - 20 kHz (including microphone); 1 Hz - 20 kHz (electrical characteristics)
    • Time Weighting: Slow and Fast
    • Instrument Response: Simultaneous rms. and Peak
    • Measurement Response: Lp (Sound Pressure Level), Leq (Equivalent Sound Level), Lmax (maximum Level), Cpeak (Max. Peak Level), LEpd (Sound Exposure Level), LAE (Single Event Sound Exposure Level)
    • Other Displays: Elapsed time, Overload, Battery Life
    • Calibration: Software controlled 91.0 to 120.0 dB (1kHz) in 0.1 dB steps
    • Processing: A to D Converter, 12-bit Controller, 8MHz, micro-controller
    • Output: AC Output = 16.4mVrms at 94dB (un-weighted and not affected by range) DC Output = 40mV/dB (weighted and ranged)
    • Power Requirement: Batteries: 1 x 6LR61 (size PP3), Life: >12 hours (alkaline batteries, continuous operation)
    • Size: 60mm (width) x 30mm (depth excluding pocket clip) x 135mm (height without microphone) or 210mm (height with microphone)
    • Weight: 200g (without battery)

    Castle GA257B Personal Noise Dosemeter

    APPLICABLE STANDARDS

    • IEC 61252-1:1993 (Personal Sound Exposure Meters)

    MICROPHONE AND PREAMPLIFIER

    • Type 2 Pre-Polarised ½” (13.2 mm) Electret Free-Field, Electret Condenser Microphone, 20Hz – 8KHz ± 2dB; –32 dB ± 3 dB re 1V/Pa Custom pre-amplifier design.

    DISPLAY

    • Back-lit LCD panel (8x1 Characters)
    • Alpha-Numeric display for measured results

    LEVEL RANGE

    • Measuring Range: 75-140
    • Linear operating range (IEC61672-1): 67dB

    NOISE FLOOR

    • Typical ’A’ Weighting <32 dB(A) rms.

    FREQUENCY WEIGHTING

    • ‘A’ to IEC 61672-1:2002 and IEC 60651:1979+A1+A2

    FREQUENCY RANGE

    • 20 Hz - 8 kHz (including microphone)
    • 1 Hz - 20 kHz (electrical characteristics)

    INSTRUMENT RESPONSE

    • Simultaneous Peak and rms

    MEASUREMENT PARAMETERS

    • LEpd (Sound Exposure Level), PLEpd (Projected LEpd over 8 hours), DOSE% (LEpd compared to criterion level as %) PDOSE% (Projected DOSE% over 8 hours, DOHR (DOSE% per hour), Pa2h (LEpd displayed in Pascal units), Dose per hour, Zpeak (Max. Peak Level).
    • Other Displays: Elapsed time, Overload, Battery Life

    CRITERION LEVEL

    • The level at which the 8 hour DOSE% = 100%. User selectable between: 80dB, 85dB and 90dB

    EXCHANGE RATE

    • The rate at which the DOSE% doubles. User selectable between: 3dB and 5dB

    CALIBRATION

    • Software controlled 91.0 to 120.0 dB (1kHz) in 0.1 dB steps

    PROCESSING

    • A to D Converter: 12-bit
    • Controller: 8MHz, micro-controller

    POWER REQUIREMENTS

    • Batteries: 1 x 6LR61 (size PP3)
    • Life: >12 hours (alkaline batteries, continuous operation).

    SIZE AND WEIGHT

    • Dimensions: 60mm (width) x 35mm (depth excluding pocket clip) x 135mm (height)
    • Microphone cable length: 800mm (including rubber sleeve and microphone)
    • Weight: 220gms (including battery)
  • Supplied Accessories

    • Castle GA216I Integrating Sound Level Meter
    • Castle GA257B Personal Noise Dosemeter
    • Castle GA601 Class 2 Sound Level Calibrator
    • Small attaché case
    • Wind muffler
    • dBdataLITE software
