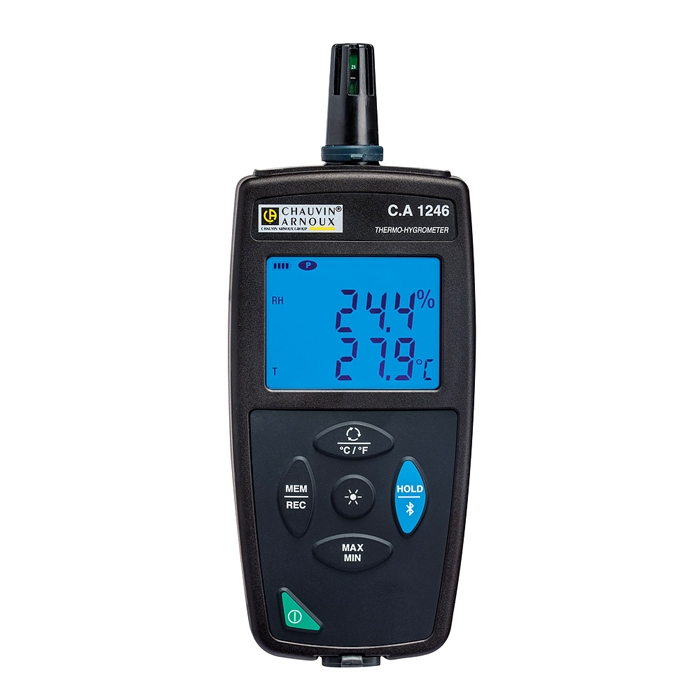

Chauvin Arnoux CA1246 Thermohygrometer

Chauvin Arnoux
SKU: CHAUCA1246
  • Measures air temperature and humidity and calculates dew point
  • Suitable for both long-term, programmed monitoring and spot measurement
  • Saves up to 1 million values to internal memory
More Info
Typically ships in 5-7 working days

Chauvin Arnoux CA1246 Thermohygrometer

The Chauvin Arnoux CA1246 Thermohygrometer measures air temperature from -10˚C to 60˚C with a resolution of 0.1˚C and an accuracy of ±0.5˚C whilst the humidity range goes from 3 to 98% with 0.1% resolution and ±2% accuracy. It is also capable of calculating dew point and displaying this on screen.

A wide backlit display shows readings for both humidity and temperature simultaneously in addition to dew point. The user can set various alarms and the Chauvin Arnoux CA1246 has minimum and maximum recording as well as data hold.

The Chauvin Arnoux CA1246’s internal memory saves up to 1 million measurements and the user can save spot measurements or set a recording programme. The thermohygrometer has a magnetic attachment and can run off the mains so it is suitable for longer-term measurement.

It has both USB and Bluetooth wireless connectivity for performing data transfers and a Chauvin Arnoux Data Logger Transfer software package is available as a free download from the Chauvin Arnoux website. This software will enable data transfers and automatic report generation.

The Chauvin Arnoux CA1246 is very compact and unobtrusive and it has a maximum battery life of three years. The IP54 casing is resistant to water and dust ingress and Chauvin Arnoux provide a two-year manufacturer’s warranty.

Chauvin Arnoux part number: P01654246

Key Features

  • Air temperature range: -10˚C to 60˚C
  • Air temperature accuracy: ±0.5˚C
  • Air temperature resolution: 0.1˚C
  • Humidity range: 3 to 98%
  • Humidity accuracy: ±2%
  • Humidity resolution: 0.1% RH
  • Dew point calculation
  • Backlit dual display
  • Long-term or spot measurement
  • Internal storage for 1 million readings
  • USB and Bluetooth connectivity
  • 2-year warranty

What's In The Box?

  • Chauvin Arnoux CA1246 Thermohygrometer
  • Carry case
  • 3 x 1.5V AA batteries
  • USB cable
  • Test report
  • Quick start guide

(Full manual and data transfer software available online from Chauvin Arnoux website)

Specification

Humidity

  • Type: Capacitive sensor
  • Measurement range: 3 to 98%
  • Resolution: 0.1% RH
  • Accuracy: 10 to 90 %RH: ± (2 %RH ± 1 ct), outside that range: ± (4 %RH ± 1 ct)
  • Response time: 60s

Temperature

  • Type of sensor: Semiconductor
  • Measurement range: -10˚C to 60˚C
  • Resolution: 0.1˚C
  • Accuracy: 10 to 40°C: ± (0.5°C ± 1 ct); outside that range: ± (0.032 x (T-25) ± 1 ct) / T= temperature in °C
  • Response time: 30s

Dew Point

  • Measurement range: -20˚C to 60˚C
  • Resolution: 0.1˚C

Functions

  • Recording: Manual Start / Stop on the product short press for MEM spot recording / Long press for REC recording at the rate of the current mode Programmed recording: start date, recording interval (1 minute to 2 hours) and end date de ned using the PC software
  • Alarms: Alarm thresholds settable in the software / Recording can be triggered on an alarm threshold
  • Data storage: >1 million points
  • Min-Max-Hold: Yes
  • Units: ˚C or ˚F / RH
  • Backlighting: Yes
  • Auto power off: Yes (configurable)

Power supply

  • Type: 3 x 1.5V AA / LR6 alkaline batteries; connection to the mains possible with the mains / micro-USB adapter offered as an accessory
  • Battery life: 1,000 hrs (portable mode) / 3 years of recording (15-minute measurement interval)

Physical Specification

  • Interfaces: 2 possible communication modes: Bluetooth wireless link and USB
  • Mounting: Casing equipped with a magnet, a wall-mount system and a slot for suspending the product Compatible with the Multi x accessory.
  • Dimensions / Weight: 187 x 72 x 32 mm / 260 g with batteries
Ingress protection: IP54
  • Product operating ranges: -10˚C to 60˚C / 10 to 90% RH
  • Compliance: IEC61010-1 / IEC 61326-1

General

  • Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form; Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory

  • Warranty: 2 years
