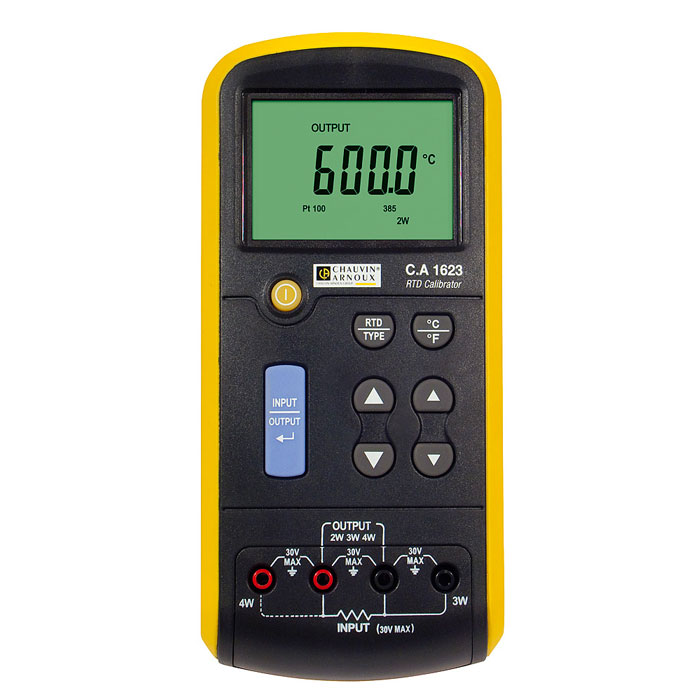

Chauvin Arnoux CA1623 RTD Temperature Calibrator

Be the first to review this product

  • Suitable for calibrating RTD platinum temperature probes and resistors
  • Calibrates temperature (-200˚C to 800˚C) and resistance (0 to 3200Ω)
  • Portable and battery-powered for easy use on site

rrp £680.00

now £629.00 (Ex. VAT) £754.80 (Inc. VAT)

rrp £680.00

OR

Please select a free gift below.

"Handy calibration in on-site conditions"

  • Description

    Chauvin Arnoux CA1623 RTD Temperature Calibrator

    The Chauvin Arnoux CA1623 RTD Temperature Calibrator can be used for the calibration of RTD platinum probes of the following types: Pt 10, Pt 50, Pt 100, Pt 200, Pt 500, Pt 1000 and Pt 100(JIS). It uses both simulation and measurement to measure, generate and simulate both temperature (-200˚C to 800˚C max) and resistance (0 to 3200Ω), thus also allowing the calibration of resistors. Both simulation and measurement are extremely accurate and precise so the user can have confidence when calibrating.

    Weighing just 472g, the Chauvin Arnoux CA1623 is portable and easy to use so it is ideal for work on site. This has a twin advantage because it saves time and also allows calibration in the conditions in which a probe is used. The large battery life is very practical and the calibrator can also work straight off the mains for longer periods of use. Operation is carried out through a straightforward push-button interface and information is clearly displayed on the digital screen.

    Supplied accessories include a pair of test wires, a crocodile clip, 6 x AAA batteries and a carry bag. The Chauvin Arnoux CA1623 is provided with a 12-month warranty and constitutes an excellent calibrator for use in the field.

    Chauvin Arnoux part number: P01654623

    Key Features

    • Suitable for RTD platinum probes and resistors
    • Temperature calibration: -200˚C to 800˚C
    • Resistance calibration: 0 to 3200Ω
    • Accurate and precise
    • Portable and battery-powered
    • Clear screen
    • Push-button interface
    • 12-month warranty
  • Specification

    Resistance calibration

    • Range: 0.00 Ω to 400.00 Ω / 400.0 Ω to 1,500.0 Ω / 1,500.0 Ω to 3,200.0 Ω
    • 4-wire measurement accuracy ± Ω: 0.1 / 0.5 / 1, 2
    • Simulation accuracy ± Ω: 0.1, 0.15 / 0.5 / 1
    • Acceptable excitation in mA: 0.1 to 0.5, 0.5 to 3.0 / 0.05 to 0.8

    Temperature Calibration (Mode / Range / Accuracy - 4-wire input (˚C) / Accuracy - 2-wire or 3-wire input (˚C) / Accuracy Output (˚C) / Excitation in mA)

    • Pt10 385 / - 200 to + 800 °C / - / - / - / 0.1 to 3.0
    • Pt50 385 / - 200 to + 800 °C / 0.7 / 1.0 / 0.7 / 0.1 to 3,0
    • Pt100 385 / - 200 to + 800 °C / 0.33 / 0.5 / 0.33 / 0.1 to 3.0
    • Pt200 385 / - 200 to + 250 °C; +250 to + 630 °C / 0.2; 0.8 / 0.3; 1.6 / 0.2; 0.8 / 0.1 to 3.0
    • Pt500 385 / - 200 to + 500 °C; +500 to + 630 °C / 0.3; 0.9 / 0.4; 0.3 / 0.6; 0.4 / 0.05 to 3.0
    • Pt1000 385 / - 200 to + 100 °C; +100 to + 630 °C / 0.2; 0.5 / 0.2 ; 0.2 / 0.4; 0.2 / 0.1 to 3.0
    • Pt100 JIS / +200 to + 630 °C / 0.2 / 0.5 / 0.3 / 0.1 to 3.0

    General

    • Unit: °C or °F
    • Power supply: 6 x 1.5 V
    • Dimension: 205 x 97 x 45 mm
    • Weight: 472 g (batteries included)
    • Mains power supply Input: 100 V – 240 VAC, 50–60 Hz 1.8 A / Output: 12 VDC, 2 A MAX
  • Supplied Accessories

    • Chauvin Arnoux CA1623 RTD Temperature Calibrator
    • 2 pairs of test wires and crocodile clip
    • 6 AAA 1.5 V batteries,
    • 1 operating manual in 5 languages
    • 1 carrying bag
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux Calibrator Datasheet    Size: (2.57 MB)
