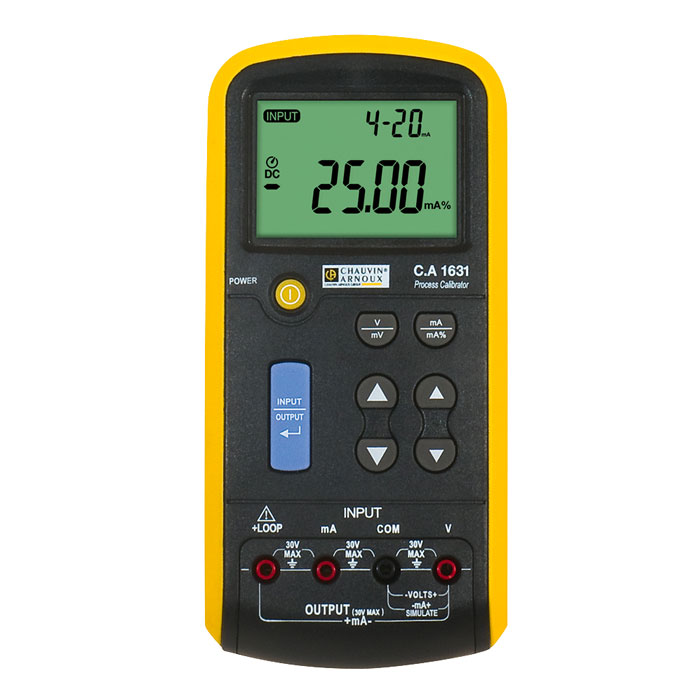

Chauvin Arnoux CA1631 Voltage/Current Process Calibrator

Be the first to review this product

  • Generates DC current loop (0 to 24mA) and DC voltage (0 to 20V)
  • Battery-powered for use in onsite conditions, thus improving accuracy
  • Can use both simulation and measurement calibration methods

rrp £580.00

now £559.00 (Ex. VAT) £670.80 (Inc. VAT)

rrp £580.00


Please select a free gift below.

  • Description

    Chauvin Arnoux CA1631 Voltage/Current Process Calibrator

    The Chauvin Arnoux CA1631 Voltage/Current Process Calibrator is a process-signal calibrator that can be used for calibrating instruments that measure current or voltage. It produces a DC current loop of between 0 and 24mA as well as DC voltage between 0 to 20V whilst the measurement method is also possible with this calibrator. High accuracy (±0.02% + 3) means that calibration is very reliable and the option between current/voltage generation and measurement gives the user greater flexibility on site.

    The straightforward push-button interface on the Chauvin Arnoux CA1631 is very easy to use and information is provided to the user on the clear digital screen. The calibrator is powered by six AAA batteries and is light and portable, thus allowing calibration on site. This not only saves time but is also more accurate because testers are calibrated in real-world conditions. Futhermore, it is possible to power the instrument through the mains for extended periods of use.

    The Chauvin Arnoux CA1631 benefits from a 12-month manufacturer’s warranty and comes supplied with test leads, crocodile clips and a carry case.

    Chauvin Arnoux part number: P01654402

    Key Features

    • Simulation or measurement method
    • DC current loop generation: 0 to 24mA
    • DC voltage generation: 0 to 20V
    • Accuracy: ±(0.02% + 3)
    • Simple interface
    • Clear digital screen
    • Light and portable
    • Battery-operated
    • 12-month warranty
  • Specification

    DC voltage input

    • Range: 100 mV
    • Resolution: 0.01 mV
    • Accuracy: ±0.02 % + 3

    DC voltage output

    • Range: 20 V
    • Resolution: 0.001 V
    • Accuracy: ±0.02 % + 3
    • Input impedance: 2 MΩ (rated value), < 100 pF
    • Protection against overvoltage: 30 V
    • Current delivered by rated voltage: 1 mA

    DC current input and output specifications

    • Range: 24 mA
    • Resolution: 0.001 mA
    • Accuracy: ±0.015 % + 3
    • Protection against overloads: 125 mA/250 V quick-response fuse
    • Display as percentage: 0 % = 4 mA, 100 % = 20 mA
    • Source mode: 1,000 Ω load at 20 mA for battery voltage ≥ 6.8 V, (700 Ω at 20 mA for a battery voltage between 5.8 and 6.8 V)
    • Simulation: external loop voltage condition: 24 V (rated value), 30 V maximum, 12 V minimum.
    • Loop voltage supply: 24 V ± 10 %
    • Power supply: 6 x 1.5 V
    • Dimension: 205 x 97 x 45 mm
    • Weight: 472 g (batteries included)
    • Mains power supply Input: 100 V – 240 VAC, 50–60 Hz 1.8 A / Output: 12 VDC, 2 A MAX
  • Supplied Accessories

    • Chauvin Arnoux CA1631 Voltage/Current Process Calibrator
    • 2 pairs of test wires and crocodile clip
    • 6 AAA 1.5 V batteries
    • 1 operating manual in 5 languages
    • 1 carrying bag
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux Calibrator Datasheet    Size: (2.57 MB)
