Chauvin Arnoux CA1823 Single-Channel Resistance Thermometer

Be the first to review this product

  • Measures temperature from -100˚C to 400˚C using accurate Pt100 sensor
  • Large internal memory with enough space for 1 million readings
  • Capable of spot and pre-programmed measurement sequences

rrp £195.00

now £171.00 (Ex. VAT) £205.20 (Inc. VAT)

rrp £195.00

OR

Please select a free gift below.

  • Description

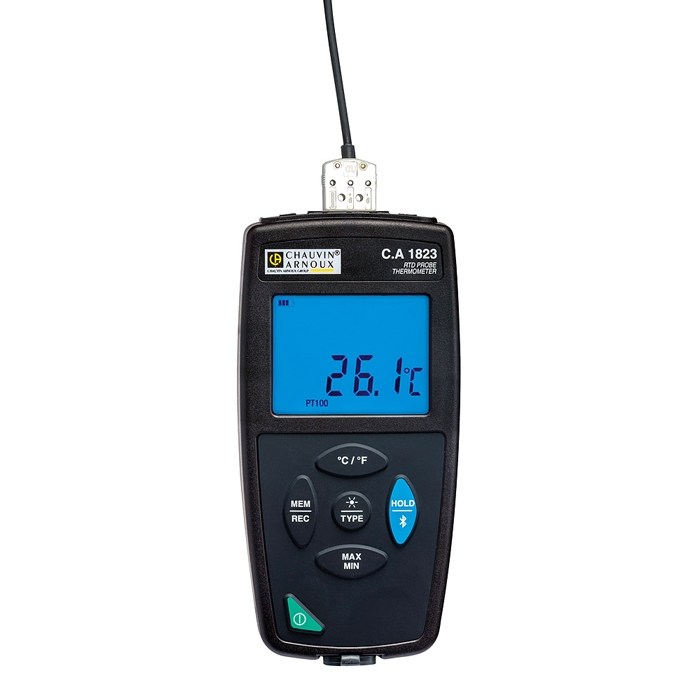

    Chauvin Arnoux CA1823 Single-Channel Resistance Thermometer

    The Chauvin Arnoux CA1823 Single-Channel Resistance Thermometer can work with a Pt100 or Pt1000 temperature probe to measure temperature from -100˚C to 400˚C with a resolution of 0.1˚C and accuracy of ±0.4%. Pt100 and Pt1000 probes offer greater accuracy and repeatability than traditional thermocouples. Please note that probes are not provided as standard with the thermometer.

    The wide backlit display on the Chauvin Arnoux CA1823 clearly shows temperature readouts and the thermometer also boasts min/max recording and data hold which freezes the displayed value on screen. The user can set personalised alarms and any instance when an alarm is triggered will be recorded to the internal memory.

    The Chauvin Arnoux CA1823 has a large internal memory with enough space for up to 1 million values. The thermometer has both Bluetooth and USB connectivity so it is easy to download information to both a PC and Bluetooth-enabled smart device. Navigating the memory and functions is very easy thanks to the simple push-button interface and the user can perform both spot and pre-programmed measurement sequences.

    A long battery life of 1000 hours (3 years in long-term mode) means that the Chauvin Arnoux 1823 is suitable for temperature monitoring. Data Logger Transfer software is available for free from the Chauvin Arnoux website and will facilitate data downland and automatic report generation. The casing is IP54 rated and has a two-year warranty.

    Chauvin Arnoux part number: P01654823

    Key Features

    • Thermocouple compatibility: Pt100, Pt1000
    • Range: -100˚C to 400˚C
    • Resolution: 0.1˚C
    • Accuracy: ±0.4%
    • Min/max recording, data hold
    • Internal memory: 1,000,000 points
    • Bluetooth/USB interfaces
    • Pre-programmed or spot monitoring
    • 1000-hour battery life
    • Two-year warranty
  • Specification

    Temperature

    • Measurement range: -100˚C to 400˚C
    • Resolution: 0.1˚C
    • Intrinsic uncertainty: ±0.4%

    Functions

    • Recording: Manual start/stop on the product, short press on MEM: spot recording / Long press on REC: recording at the rate of the current mode; Programmed recording, start date, recording rate (interval from 1 minute to 2 hours) and end date can be customised with the PC software
    • Alarms: Alarm thresholds set using the software. Visual alert on the product in the event of an overrun Recording can be triggered on alarm thresholds
    • Data storage: >1,000,000 values
    • Min/Max/Hold: Yes
    • Units: ˚C or ˚F
    • Backlighting: Yes
    • Auto power off: Yes (configurable)

    Power Supply

    • Type: 3 x 1.5V AA / LR6 alkaline batteries; mains connection possible with the mains / micro USB adapter proposed as an accessory
    • Battery life: : 1,000 hrs (portable mode); 3 years for recording (15-minute measurement interval)

    Physical Specifications

    • Interfaces: Bluetooth/USB
    • Fixations: Casing equipped with a magnet, a wall-mount system and a slot for suspension of the product. Compatible with the Multi x accessory. Sheath available as an accessory.
    • Connections: Compensated miniature female connector
    • Dimensions: 150 x 72 x 32mm
    • Weight: 260g
    • Ingress protection: IP54
    • Product operating ranges: -10˚C to 60˚C; 10 to 95% RH

    General Specifications

    • Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form; Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory

    • Warranty: 2 years
  • Supplied Accessories

    • Chauvin Arnoux CA1823 Resistance Thermometer
    • Carry case
    • 3 x 1.5V AA batteries
    • USB cable
    • Test report
    • Quick start up guide

    (Full manual and data transfer software available online from Chauvin Arnoux website)
