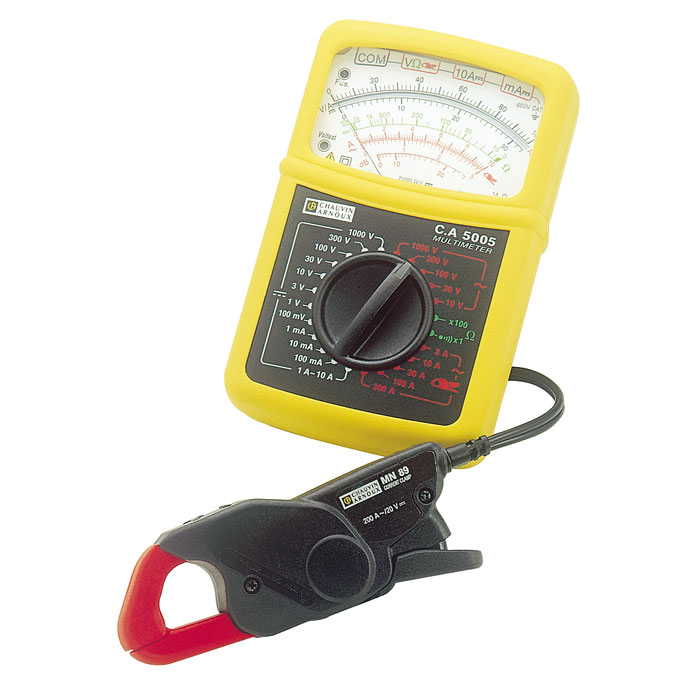

Chauvin Arnoux CA5005 Analogue Multimeter

SKU: CHAUCA5005
  • Extended AC current range to 300A using the included MN 89 mini clamp
  • Choice of ranges for parameters including voltage, current and resistance
  • Articulated Multistand™ allows device to sit vertically in various situations
More Info
Typically ships in 5-7 working days

Chauvin Arnoux CA5005 Analogue Multimeter

The Chauvin Arnoux CA5005 Analogue Multimeter is a versatile analogue multimeter which is capable of measuring AC/DC voltage up to 600V, DC current up to 10A and resistance up to 1MΩ. It is supplied with an additional current clamp which allows measurement of AC current from 3A to 300A. Further functions include continuity testing with an audible buzzer whilst ohmmeter mode boasts two additional features: a ‘Voltest’ voltage warning light and automatic zeroing. A special HBF fuse test allows continuity tests to be carried out on fuses.

The needle-based analogue display provides instantaneous readings to the user and quickly responds to fluctuations in outputs. A choice of ranges on the Chauvin Arnoux CA5005 allow the user to take very precise measurements - even down to µA for DC current - and overall basic accuracy is just 1.5%.

An innovative articulated Multistand™ allows the user to keep the Chauvin Arnoux CA5005 stood vertically on uneven surfaces or wall hangings so it can sit very near to connections and remain visible when the operator is working on a circuit. It is double-insulated and conforms to 600V Cat III standard whilst the IP53-standard protective casing also helps protect from knocks and scrapes. The instrument is operated very simply through a dial system so poses little challenge to the user.

The user benefits from the Chauvin Arnoux C.A 5005’s three-year manufacturer’s warranty and the 9V battery provides enough energy for 10,000 different measurements. It comes supplied with test leads and test probes in addition to an MN 89 mini current clamp.

Chauvin Arnoux part number: P01196523E

C.A 5005 Key Features

  • AC/DC voltage range: 600V
  • DC current range: 10A
  • AC current range (via MN clamp): 300A
  • Continuity and resistance testing
  • ‘Voltest’ voltage warning light in ohmmeter mode
  • Automatic zeroing in resistance test
  • Different range options for each parameter
  • IP53 weatherproof rating
  • HBC fuse test
  • Articulated Multistand™
  • Three year warranty

What's In The Box?

  • Chauvin Arnoux CA5005 Analogue Multimeter
  • Chauvin Arnoux MN 89
  • Test leads
  • Test probes
  • 1.5V battery
  • Instruction manual
Specification
  • DC voltage: 8 ranges 100 mV /../ 1,000 V (6)
  • AC voltage: 5 ranges 10 V /../ 1,000 V (6)
  • Internal resistance: 20 kΩ/V
  • Working frequency: 10 Hz ...100 kHz depending on range
  • DC current: 6 ranges 50 µA /../ 10 A
  • AC current: 5 ranges 3 A /../ 300 A
  • Resistance 2 ranges 10 kΩ and 1 MΩ
  • Audible continuity test: R < 50 Ω
  • Scale in dB for V AC: 0 ... +22 dB
  • Typical accuracy: 1.5 % on V • 2.5 % on V~ and A • 10 % on Ω
  • Power supply: 1.5 V battery 9 V battery
  • Battery life: 10,000 measurements of 10 s
  • Electrical safety: IEC / EN 61010-1 Edition 2 • 600 V Cat III-2
  • Protection: HRC fuses 1 A and 10 A
  • Degree of watertightness: IP 53
  • Environmental conditions: -10 °C ... +55 °C and RH < 90 %
  • Dimensions / Weight: 160 x 105 x 56 mm / 500 g
