Chauvin Arnoux CA5233 True RMS Digital Multimeter

SKU: CHAUCA5233
  • Measures current, voltage, temperature, capacitance, resistance & frequency
  • Large, clear screen with blue backlight and analogue bar graph
  • Non-contact voltage detection mode with red glow to indicate presence
More Info
Typically ships in 5-7 working days

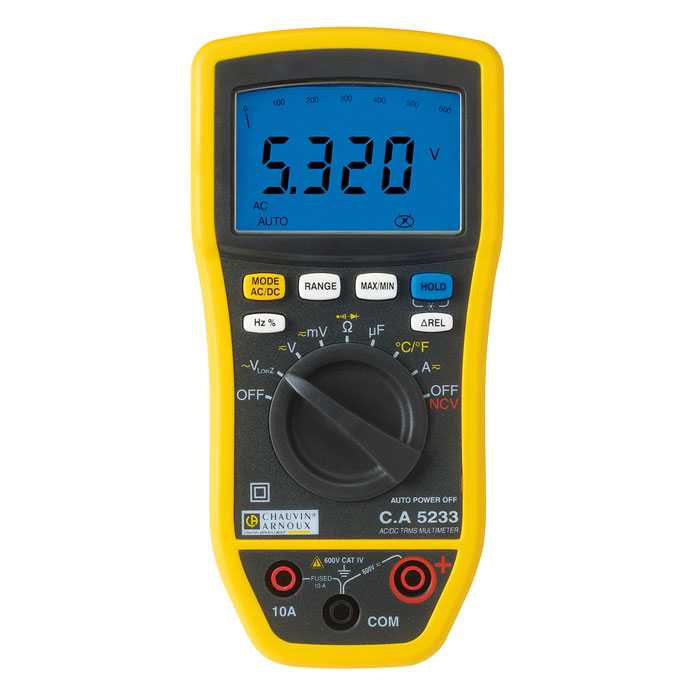

Chauvin Arnoux CA5233 True RMS Digital Multimeter

The Chauvin Arnoux CA 5233 True RMS Digital Multimeter is a versatile instrument which offers measurement for AC/DC voltage (600V), AC/DC current (10A), resistance (60MΩ), frequency (3kHz), capacitance (1000µF) and temperature (-20˚C to 760˚C). It can also perform continuity tests, diode testing, and testing for duty ratio. LowZ AC voltage measurement helps negate problems related to disturbance voltage and True RMS means that it can be used on non-linear wave patterns.

Several different ranges apply to each parameter and these can be set to self-select automatically or be selected by the user depending on his/her requirements. High resolution aids precision and basic accuracy is just 0.2% so the user can have confidence in readings from the Chauvin Arnoux CA5233. Furthermore, Max/Min recording and relative mode add extra clarity to the user’s picture of system performance.

Readings for each of the many different measurement values are shown on the Chauvin Arnoux CA5233’s large, blue screen. It is very clear indeed, features data hold, and also has an analogue bar graph display alongside the large digital value. An audible buzzer sounds during continuity testing whilst the screen is also useful in non-contact voltage detection mode as it glows bright red if it senses voltage. Operation is carried out through the simple dial which feature two OFF positions for speed and simplicity.

The Chauvin Arnoux CA 5233 has an articulated Multistand™ which allows it to sit vertically on a range of surfaces whilst its shock-proof casing contributes to an IP rating of IP54. It can withstand overloads up to 8000V and is safety rated as Cat III 600V and Cat IV 600V so it is very safe.

Supplied accessories include a thermocouple, test leads, test probes and a battery, and the Chauvin Arnoux CA5233 constitutes an extremely clear, adaptable addition to any toolbox.

Chauvin Arnoux part number: P01196733

Key Features

  • AC/DC voltage measurement to 600V
  • AC/DC current measurement to 10A
  • Resistance measurement to 60MΩ
  • Frequency measurement to 3kHz
  • Capacitance measurement to 1000µF
  • Temperature measurement from -20˚C to 760˚C
  • Continuity/diode test
  • LowZ AC voltage
  • Large, backlit screen with bar graph
  • Non-contact voltage detection
  • Display hold
  • Relative mode
  • Min/Max recording
  • IP54 rated
  • Cat III 600V, Cat IV 600V
  • Articulated stand

What's In The Box?

  • Chauvin Arnoux CA5233 True RMS Digital Multimeter
  • 5 language instruction manual for Chauvin Arnoux C.A 5233 True RMS Digital Multimeter
  • Type K thermocouple
  • Test leads
  • Test probes
  • 9V battery
Specification
  • Display: 6,000-count backlit display + 61-segment bargraph
  • Acquisition: True RMS
  • Autorange or manual: Yes
  • Bandwidth: 3 kHz (V) / 1 kHz (A)
  • Best accuracy: 0.2 %
  • AC voltage: 6 calibres - 600 V - Resolution: 0.01 mV
  • AC LowZ voltage: 4 calibres - 600 V - Resolution: 0.001 V
  • DC voltage: 6 calibres - 600 V - Resolution: 0.01 mV
  • AC current / DC current: 2 calibres - 10 A Resolution: 0.001 A
  • Resistance measurement: 6 calibres - 60 MΩ - Resolution: 0.1 Ω
  • Audible continuity / Diode test: Yes / Yes
  • Frequency / Duty ratio: 3 calibres: up to 3 kHz / Yes
  • Capacitance: 6 calibres – 1,000 µF - Resolution: 0.01 nF
  • Temperature: 1 calibre (with external K thermocouple) -20 °C to +760 °C / -4 °F to +1,400 °F Resolution: 1°
  • No-contact voltage detection (NCV): Yes
  • Display Hold function: Yes
  • Relative mode: Yes
  • Min-Max: Yes
  • Power supply: 9 V alkaline battery (6LF22)
  • Leakproofing: IP54
  • Dimensions: 155 x 75 x 75 mm
  • Weight: 320 g
  • Electrical safety (IEC 61010): 600 V CAT IV / 600 V CAT III
