Chauvin Arnoux CA6116N Multifunction Tester

Be the first to review this product

  • A wide range of different features including harmonics and power calculation
  • Contextual help provided to help user make correct connections
  • ICT and DataView® software provided for speedy analysis and reporting

rrp £1,400.00

now £1,280.00 (Ex. VAT) £1,536.00 (Inc. VAT)

rrp £1,400.00

Please select a free gift below.

"Harmonics analysis and power calculation for in-depth assessment"

  • Description

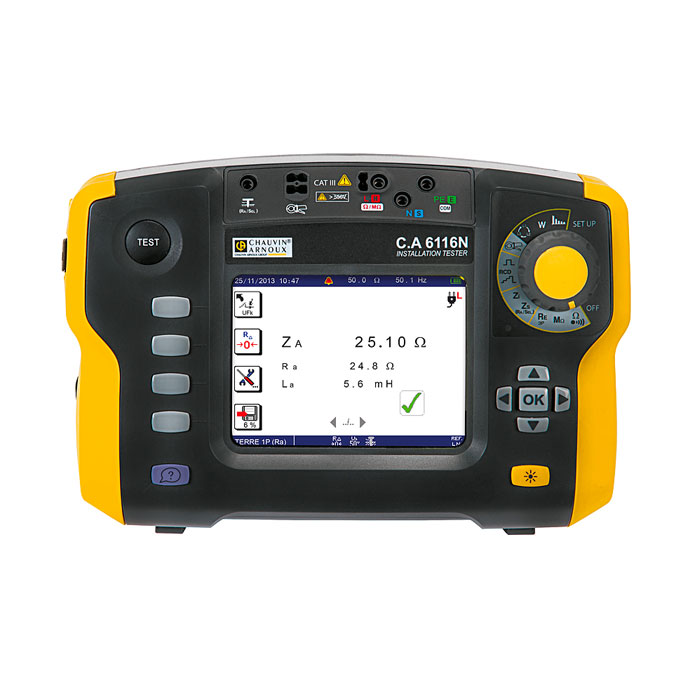

    Chauvin Arnoux CA6116N Multifunction Tester

    The Chauvin Arnoux CA6116N Multifunction Tester is a comprehensive instrument that can verify whether installations (TT, TN or IT) meet all relevant national and international requirements thanks to a comprehensive list of measurement functions. These include basic MFT functions such as voltage and frequency measurement, resistance measurement, continuity testing, insulation tests, earth tests, loop testing (1mΩ resolution), line testing, RCD testing, and phase sequence indication. Furthermore, the CA6116N also has advanced features for more in-depth inspection of system performance and status such as power calculation and harmonics analysis for straightforward troubleshooting. Current can be measured through an optional current clamp.

    In addition to this extremely large range of different measurement functions, the Chauvin Arnoux CA6116N has several other practical features. Firstly, contextual information aids both experts and beginners when making connections whilst a supplied mains cable also helps in this area. Operation is easy thanks to the simple dial function selector, push button interface and intuitive menus which are displayed on a large colour screen. The LCD display shows dynamic, graphical representations of system outputs in order to give the user as much information as possible at a glance.

    Three-level data storage on the Chauvin Arnoux CA6116N helps the user organise findings and data transfer can be carried out simply via a supplied USB cable. Furthermore, two free sets of software ease the analysis process. Firstly, the tester itself contains its own custom software for carrying out analysis on the device whilst Chauvin Arnoux DataView® software for PC contains report templates and helps transfer data over from the tester to a computer.

    The Chauvin Arnoux CA6116N comes provided with a range of different accessories to help the user get on with the job straightaway. A fully-charged battery powers the instrument for 30 hours and it is safety rated as Cat III 600V whilst voltage presence indication helps protect the user from hazardous voltage.

    Chauvin Arnoux part number: P01145455A

    Key Features

    • Measures voltage, frequency, and resistance
    • Tests continuity, loop, line, insulation, earth and RCDs
    • Phase rotation indication
    • Harmonics analysis and power calculation
    • Current measurement through optional clamp
    • Dynamic, colour LCD screen
    • ICT and DataView® analysis software
    • Contextual help to assist the user
    • Dial and push button interface
    • Cat III 600V
    • Hazardous voltage indication
    • 30-hour battery life
  • Specification

    CONTINUITY / RESISTANCE

    • I rated / Range / Resolution: I > 200 mA / 39.99 Ω/ 0.01Ω / ± (1.5% of measurement + 2 cts)
    • 12 mA / 39.99 Ω & 399.9 Ω / 0.01 & 0.1 Ω /± (1.5% of measurement + 5 cts) with beep
    • Range / Resolution / Accuracy: 4 kΩ/ 1 Ω / ±(1.5 % of measurement + 5 cts) 40 kΩ - 400 kΩ/ 10 Ω - 100 Ω / ±(1.5 % of measurement + 2 cts)

    INSULATION

    • Rated voltage Utest: 50 /100 / 250 / 500 / 1,000 V DC
    • Range / Resolution / Accuracy: 0.01 MΩ to 2 GΩ / 10 kΩ to 1 MΩ / ±(5 % of measurement + 3 cts)
    • Short-circuit current: ≤ 3 mA

    EARTH

    • 3P EARTH Range / Resolution / Accuracy: 0.50 Ω to 40 Ω/ 0.01 Ω / ±(2 % of measurement + 10 cts) 40 Ω to 15 kΩ / 0.1 Ω to 1 Ω / ±(2 % of measurement + 2 cts ) - 15 kΩ to 40 kΩ / 10 Ω/ ±(10 % of measurement + 2 cts )
    • Others: Measurement of resistance of auxiliary stakes RH & RS (up to 40 kΩ)
    • Ufk: Complies with SEV 3569
    • 1P SELECTIVE EARTH Range / Resolution / Accuracy: 0.20 Ω to 39.99 Ω - 40 Ω to 399.9 Ω / 0.01 Ω – 0.1 Ω / ±(10 % of measurement + 10 cts) (ISel via clamp)

    LOOP IMPEDANCE (Zs (L-PE) and Zi (L-N or L-L)) – 1P LIVE EARTH

    • LIVE EARTH Installation voltage / Freq.: 90 to 500 V / 15.8 to 17.5 Hz - 45 to 65 Hz
    • High-current mode with TRIP Zs (L-PE) & Zi (L-N or L-L) Range / Resolution / Accuracy: Max. test current 7.5 A - (0.050) 0.100 Ω to 0.5 Ω / 0.001 Ω/ ±(10% of measurement + 20 cts) • 0.5 Ω to 3.999 Ω / 0.001 Ω/ ±(5 % of measurement + 20 cts) 3.999 to 39.99 Ω/ 0.01Ω / ±(5% of measurement + 2 cts) • 39.99 Ω to 399.99 Ω / 0.1 Ω/ ±(5 % of measurement + 2 cts)
    • NO TRIP mode (Zs (L-PE) only): Test current - 6 mA – 9 mA – 12 mA (as required) 0.20 Ω to 0.99 Ω / 0.01 Ω / ±(15 % of measurement + 10 cts) - 1.00 to 1.99 Ω / 0.01 Ω / ±(15 % of measurement + 3 cts) 2.00 to 39.99 Ω / 0.01 Ω / ±(10 % of measurement + 3 cts) - 40.00 Ω to 399.9 Ω / 0.1 Ω / ±(5 % of measurement + 2 cts) 400 to 3999 Ω / 1 Ω / ±(5 % of measurement + 2 cts)
    • Calculation of Ik short-circuit current (PFC (Zs)), I Sc PSCC (Zi): Fault current and short-circuit current - 0.1 A to 20 kA
    • Others: Measurement of the resistive and inductive components of the Zs and Zi impedances

    AC and A-type RCDs

    • Installation voltage / Frequency: 90 V to 500 V / 15.8 Hz to 17.5 Hz and 45 Hz to 65 Hz
    • I∆n: 10/30/100/300/500/650/1,000 mA (90 V – 280 V) or variable - 10/30/100/300/500 mA (280-550 V) or variable - Ramp and pulse test
    • No-trip test: At ½ I∆n – Duration: 1,000 ms or 2,000 ms
    • Ramp mode: 0.2 to 0.5 x I∆n (Uf) / 0.3 x I∆n to 1.06 x I∆n in increments of 3.3 % x I∆n
    • Trip time measurement - Range / Resolution / Accuracy: 0.2 to 0.5 x I∆n (Uf) / 0.5 x I∆n / 2 x I∆n (selective) / 5 x I∆n - Pulse: 0 to 500 ms / 0.1 and 1 ms / 2 ms, Ramp mode: 0 to 200 ms / 0.1 ms / 2 ms

    OTHER MEASUREMENTS

    • Current by clamps: 5.0 mA to 199.9 A (C177A)
    • Current by clamp MN77: (1 mA*) 5.0 mA to 19.99 A
    • Voltage: 0 to 550 VAC/DC / DC and 15.8 to 500 Hz
    • Frequency: 10 to 500 Hz
    • Phase rotation: 20 to 500 VAC
    • Active power: 0 to 110 kW single-phase - 0 to 330 kW three-phase / Simultaneous display of voltage and current waveforms
    • Harmonics: Voltage and current / up to 50th order / THD-F /THD-R

    GENERAL SPECIFICATIONS

    • Display: Large 5.7” backlit graphic colour LCD screen, 320 x 240 points
    • Storage/Communication: Via USB for data transfer and report creation
    • Power supply: Lithium-ion 10.8 V rated 5.8 Ah
    • Battery life: Up to 30 hours
    • Dimensions / weight: 280 x 190 x 128 mm / 2.2 kg
    • Protection: IP 53 / IK04
    • EMC: IEC 61326-1
    • Electrical safety: IEC 61010 -1 – 600 V CAT III – 300 V CAT IV – IEC 61557
  • Supplied Accessories

    • Chauvin Arnoux CA6116N Multifunction Tester
    • 1 x carrying bag
    • 1 x type-2 mains power pack / charger
    • 1 x Li-Ion battery pack
    • 1 x USB A/B cable, 1.80 m, with ferrite
    • 1 x three-point cable
    • 3 x safety leads (red, blue and green)
    • 3 x test probes, Ø 4 mm (red, blue and green)
    • 3 x crocodile clips (red, blue and green)
    • 2 x elbowed-straight safety leads 3 m (red and black)
    • 1 x three-point GB mains cable
    • 1 x 2P GB mains cable
    • 1 x remote-control probe
    • 1 x wrist strap
    • 1 x scratch-proof film mounted on the instrument
    • 1 x 4-point hands-free strap
    • ICT data export software on CD-ROM
    • 6 operating manuals on CD (one per language)
    • 1 safety datasheet in 20 languages
