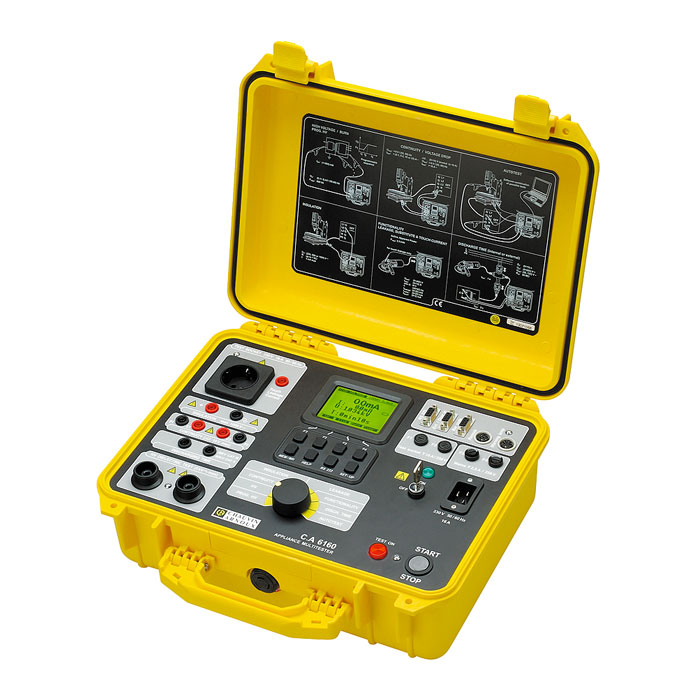

Chauvin Arnoux CA6160 Electrical Safety and Machinery Tester

Be the first to review this product

  • An all-in-one tester to ensure machinery meets EU electrical safety regulations
  • Dielectric, discharge time, continuity, insulation and leakage current tests
  • Functional tests: apparent/active power, power factor, voltage, current, frequency

rrp £3,311.00

now £3,010.00 (Ex. VAT) £3,612.00 (Inc. VAT)

rrp £3,311.00

Please note that this product has now been discontinued. The nearest current equivalent is the Chauvin Arnoux CA6155 Multifunction Equipment Tester.

Please select a free gift below.

"An all-in-one tester for assessing compliance with EU electrical safety regulations"

  • Description

    Chauvin Arnoux CA6160 Electrical Safety and Machinery Tester

    Please note that this product has now been discontinued. The nearest current equivalent is the Chauvin Arnoux CA6155 Multifunction Equipment Tester.

    The Chauvin Arnoux CA6160 Electrical Safety and Machinery Tester is the ideal, all-in-one instrument for ensuring that machinery meets a full range of European standards in terms of electrical safety. It can perform several different tests including dielectric testing, voltage drop and continuity testing, insulation resistance measurement, leakage current measurement, discharge timing and functional testing.

    Dielectric testing with the Chauvin Arnoux CA6160 can be undertaken using standard or programmed modes and features max. current threshold adjustment, timed or untimed tests, real voltage and current display, and floating HV outputs for increased user safety. Insulation testing meanwhile benefits from three test voltages (250V, 500V or 1000V) and a resistance measurement range of 0.001 to 999MΩ. Both internal and external discharge time can be measured either at the mains socket or at component level.

    Continuity and voltage drop testing features adjustable alarms whilst leakage current functions include leakage current measurement (0 to 20mA), residual leakage current measurement (0 to 20mA) and contact current (0 to 2mA). Finally, the Chauvin Arnoux CA6160’s functional test measures active power, apparent power, power factor, voltage, current and frequency to acquire an in-depth picture of electrical safety performance.

    An autotest function allows the user to start off an automatic sequence of measurements which will test to see if a machine meets all pertinent standards. The test sequence can be programmed through optional software which also permits downloading readings from the Chauvin Arnoux CA6160’s 1600-measurement internal memory and the creation of test reports. Readings are displayed on the clear, backlit LCD screen and data transfer can be carried out via an RS232 cable.

    A sturdy plastic case helps the Chauvin Arnoux CA6160 withstand the rigours of regular use in the field thanks to an IP50 ingress protection rating. It is overvoltage-rated as Cat III 300V and comes supplied with all necessary accessories including two pistol-grip dielectric testers. The manufacturer’s warranty for this tester lasts for 12 months.

    Chauvin Arnoux part number: P01145701A

    Key Features

    • Tests machinery to all European electrical safety standards
    • Dielectric testing (standard/programmed mode)
    • Insulation testing (0.001MΩ to 999MΩ @ 250V, 500V, 1000V)
    • Voltage drop and continuity testing
    • Leakage current measurement (0 to 20mA)
    • Function tests: apparent/active power, power factor, voltage, current, frequency
    • Discharge time test (external or internal)
    • Autotest function for comprehensive test sequence
    • Data download via optional software and RS232 cable
    • Internal memory for 1600 readings
    • Clear, backlit LCD screen
    • IP50-rated outer casing
    • Cat III 300V
    • 12-month warranty
  • Specification

    WITHSTANDING TEST (PROG. HV AND HV POSITION)

    • Nominal test voltage : adjustable (100/5000) V (50,60) Hz at Umains = 230V, Pload = 500VA
    • Open circuit test voltage : Un (nominal test voltage) (-1% / +10%) at Umains = 230V
    • Output differential : 2HV plugs
    • Voltage shape: sinusoidal

    Test voltage readout (Range (kV) Resolution (kV) Accuracy)

    • 0.100 - 0.999 / 0.001 / ±(2 % of reading + 5 dig.)
    • 1.000 - 5.000 / 0.001 / ±(3 % of reading + 5 dig.)

    Two different voltage procedure modes :

    • Standard voltage mode
    • Programmable voltage mode (parameters t1, t2, t3, U1, U2)
    • Trip-out out test current for nominal test voltages up to 1000 V adjustable to 0.5, 1.0, 1.5 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400, 450, 500 mA.
    • For test voltages greater than 1000 V, maximum current limit depends on max high voltage power characteristic (500 VA = max power).
    • Accuracy of trip-out test current: .......................... ±10 % of set value.

    Test current readout (sin wave) (Range (mA) Resolution (mA) Accuracy)

    • 0.0 - 500.0 / 0.1 / ±(5 % of reading + 5 digit) absolute value
    • 0.0 - 500.0 / 0.1 / ±(30 % of reading +10 digit) resistive or capacitive value**

    ** not displayed at ‘Trip out ’ STOP

    • Trip out time: < 30 ms after break through.
    • Timer: adjustable 1 s - 9 min 59 s with resolution of 1 s. Timer OFF function available.

    BURN OUT (HV POSITION)

    • Selectable voltage : (100 - 5000) V
    • Minimum burnout time before overheating: 10 s
    • I max.: (50 - 60) mA

    LOW RESISTANCE (CONTINUITY POSITION)

    Resistance readout for current 10 A and 25 A (Range R (Ω)* Resolution (Ω) Accuracy)

    • 0.000 - 0.999 / 0.001 / ±(3 % of reading + 3 dig.)
    • 1.000 - 2.000 / 0.001 / ±(3 % of reading + 10 dig.)
    • 2.001 - 9.999 / 0.001 / indicator only

    *autoranging

    Resistance readout for current 0.10 A (Range R (Ω)* Resolution (Ω) Accuracy)

    • 0.00- 9.99 / 0.01 / ±(5 % of reading + 12 dig.)
    • 10.0- 100.0 / 0.1 / ±(5 % of reading + 6 dig.)

    * autoranging

    Resistance readout for current 0.20 A (Range R (Ω)* Resolution (Ω) Accuracy)

    • 0.00 - 9.99 / 0.01 / ±(5 % of reading + 6 dig.)
    • 10.0- 100.0 / 0.1 / ±(5 % of reading + 6 dig.)

    * autoranging

    • Max. output voltage: <6 V∼

    Measuring curr. (electronically stabilized). selectable 100 mA, 200 mA, 10 A, 25 A
    - 10 mA at R < 50 Ω (Umains : 230 V, original test leads)
    - 200 mA at R < 8 Ω (Umains : 230 V, original test leads)
    - 10 A at R < 0.5 Ω (Umains : 230 V, original test leads)
    - 25 A at R < 0.2 Ω (Umains : 230 V, original test leads)

    • Current shape: sinusoidal
    • Threshold value adjustable: 10 mΩ - 1.0 Ω (in steps of 10 mΩ ), 1.0 Ω - 2.0 Ω (in steps of 100 mΩ), or ignored (*** Ω sign is selected)
    • Timer: adjustable 1 s - 59 s, resolution 1 s
    • Connection system: 4 wire, safety connectors, electrically separated

    Test voltage readout with current 10A and 25A (Range (V) Resolution (V) Accuracy)

    • 0.000 – 10.000 / 0.001 / ±(3 % of reading + 0.05 V)

    Test voltage readout with current 0.1 A and 0.2 A (Range (V) Resolution (V) Accuracy)

    • 0.000 – 10.000 / 0.001 / ±(5 % of reading + 0.1 V)

    Test current readout 10 A and 25 A (Range (A) Resolution (A) Accuracy)

    • 0.0 – 30.0 / 0.1 / ±(3 % of reading + 5 dig.)

    Test current readout 0.1A and 0.2A (Range (A) Resolution (A) Accuracy)

    • 0.000 – 1.000 0.001 ±(5 % of reading + 5 dig.)


    VOLTAGE DROP SCALED TO 10 A~ (OPTION IN CONTINUITY POSITION)

    • Voltage drop readout (scaled to 10A~) (Range ∆U (V) Resolution (V) Accuracy)
    • 0.00 – 10.00 0.01 ±(3 % of reading + 3 dig.)
    • 10.00 – 99.99 0.01 indicator only

    Test current readout (Range (A) Resolution (A) Accuracy)

    • 0.0 – 30.0 0.1 ±(3 % of reading + 3 dig.)

    Threshold value of voltage drop versus wire section (Wire section (mm2) Threshold voltage drop (V))

    • 0.5 / 5.0
    • 0.75 / 5.0
    • 1 / 3.3
    • 1.5 / 2.6
    • 2.5 / 1.9
    • 4 / 1.4
    • ≥6 / 1.0

    Any of the wire sections in the previous table can be selected in order to evaluate voltage drop result.

    • Max. output voltage: .................................. 10 V∼
    • Electronically stabilized current
    • Current shape: .......................................... sinusoidal
    • Measuring current (external resist. of (0 - 0.5) Ω connected to original test
    • cable : ....................................................... >10 A∼
    • Timer: ........................................................ adjustable (1 - 59) s, resolution 1 s
    • Connection system: .................................. 4 wire, safety connectors, electrically separated

    INSULATION RESISTANCE

    Nominal voltage 250 V, 500 V, 1000 V

    Insulation resistance readout (Range* (MΩ) Resolution ** (MΩ) Accuracy)

    • 0.000 - 1.999 / 0.001 / ±(5 % of reading + 10 dig.)
    • 2.000 – 199.9 / 0.001, 0.01, 0.1 / ±(3 % of reading + 3 dig.)
    • 200 - 999 / 1 / ±(10 % of reading + 10 dig.)

    * autoranging, depends on test voltage
    ** depends on test voltage

    • Measuring range (stable and accurate result even with capacitive load): ............................................... typ. @ 250 V 5 µF // 1.4 MΩ ; @ 500 V & 1000V 5 µF // 4.2 MΩ
    • Nominal voltage: ................... (250, 500, 1000) V (+30 % / - 0 %)
    • Short circuit current: ............... 3.5 mA max.
    • Measuring current: ................ 1 mA min. at (250, 500, 1000) kΩ load
    • Settable limits: ....................... (0.2 - 200.0) MΩ (resolution 0.1 MΩ), no limit (*** MΩ sign is selected)
    • Timer: ..................................... adjustable 1 s - 9 min 59 s with resolution of 1 s, Timer OFF function available.
    • Subresult:............................... measuring voltage
    • Output: ................................... 2 safety plugs, grounded
    • Auto-discharge after test.

    LEAKAGE CURRENT

    Leakage current readout: (Range (mA) Resolution (mA) Accuracy)

    • 0.00 – 3.99 / 0.01 / ±(5 % of reading + 3 dig.)
    • 4.0 – 20.0 / 0.1 / ±(5 % of reading + 3 dig.)
    • Settable limits: .......................................... (0.1 – 20.0) mA (in step of 0.1 mA)
    • Output: ...................................................... 16 A power test socket
    • Timer: ........................................................ adjustable 1 s - 9 min 59 s with resolution 1 s Timer OFF function available.

    TOUCH LEAKAGE CURRENT

    Touch leakage current readout: Range (mA) Resolution (mA) Accuracy

    • 0.00 – 2.00 0.01 ±(5% of reading + 3digit)
    • Settable limits:………………. (0.1 – 2.0) mA (in step of 0.1 mA)
    • Output: ……………………….16 A power test socket + TOUCH safety plug
    • RAmeter: 2 kΩ

    SUBSTITUTE LEAKAGE CURRENT

    Substitute leakage current readout: Range (mA) Resolution (mA) Accuracy

    • 0.00 –20.0 / 0.01 / ±(5% of reading + 3digit)
    • Settable limits: …………………… (0.1 – 20.0) mA (in step of 0.1 mA)
    • Short circuit current:……………… < 30 mA
    • Open circuit voltage :……………. 40 V
    • Output: …………………………….16 A power test socket
    • Displayed current is calculated to 230 V

    FUNCTIONAL TEST
    Active Power, Apparent Power, Voltage, Current and Frequency monitoring on the test socket :

    Active Power, Apparent Power (Range (W) Resolution (W) Accuracy)

    • 0 – 199.9 / 0.1 / ±(5 % of reading + 10 digit)
    • 200 – 3500 / 1 / ±(5 % of reading + 3 digit)

    Test voltage readout (Range (V) Resolution (V) Accuracy)

    • 0 – 400 V / 1 / ±(2 % of reading + 2 digit)

    Test current readout (Range (A) Resolution (A) Accuracy)

    • 0 – 0.999 / 0.001 / ±(3 % of reading + 5 dig.)
    • 1.00 – 15.99 / 0.01 / ±(5 % of reading + 5 dig.)

    Cos ϕ readout (Range Resolution Accuracy)

    • 0 – 1.00 / 0.01 / ±(3 % of reading + 3 dig.)

    Frequency readout (Range (Hz) Resolution (Hz) Accuracy)

    • 45.00 – 65.00 / 0.01 / ±(0.1% of reading +3 dig.)
    • Threshold Apparent Power: ................................. adjustable (10 - 3500) VA, (10 - 100) VA (resolution 1 VA), (100 - 3500) VA (resolution 10 VA)
    • Output: ................................................................. 16 A power test socket
    • Timer: ................................................................... adjustable 1 s - 9 min 59 s with resolution 1 s Timer OFF function available.

    DISCHARGE TIME (DISC.TIME POSITION)

    • Discharge time on power plug (external)
    • Max. working voltage ....................................................... 600 V p
    • Min. working voltage ........................................................ (60, 120) V p
    • Measuring range ............................................................. (0 - 10) s
    • Resolution ....................................................................... 0.1 s
    • Threshold of discharging time ......................................... 1 s
    • Accuracy .......................................................................... ±(2 % of reading + 0.2 s)
    • Safe voltage level ............................................................ 60 V, 120 V
    • Internal resistance of input .............................................. 96 MΩ
    • Discharge time on internal electronic components (internal)
    • Max. working voltage ....................................................... 600 V p
    • Min. working voltage ........................................................ (60,120) V p
    • Measuring range ............................................................. (0 - 10) s
    • Resolution ....................................................................... 0.1 s
    • Threshold of discharging time ......................................... 5 s
    • Accuracy .......................................................................... ±(2% of reading + 0.2 s)
    • Safe voltage level ............................................................ 60 V, 120 V
    • Internal resistance of input .............................................. 96 MΩ

    GENERAL

    • Mains voltage: ................................................................. 230 V (-10 % - +6 %) / (50,60) Hz
    • Max. power consumption: ................................................ 660 VA (without load on TEST SOCKET)
    • Display: ............................................................................ LCD dot matrix, (160 x 116) dots with cont. backlight
    • RS232 interface: .............................................................. 1 start bit, 8 data bits, 1 stop bit
    • RS232 baud rate adjustable: .......................................... 9600, 19200, 38400 Baud
    • Memories: ........................................................................ 1638 memory locations
    • Remote control signals: ................................................... START / STOP, SAVE
    • EXT/ Door in signals: ....................................................... Next test, Good / Bad result, External input, Door in
    • Bar code reader: .............................................................. EAN13
    • Bar code baud rate adjustable: ....................................... 2400, 4800 or 9600 Baud
    • Measurement circuitry protection:
    • F3 .................................................................................. F 2.5 A / 250 V (5 × 20) mm (general protection of the instrument)
    • F4 .................................................................................. F 2.5 A / 250 V (5 × 20) mm (general protection of the instrument)
    • Case: ............................................................................... shock proof plastic / portable
    • Dimensions (w × h × d): ................................................... (410 × 175 × 370) mm
    • Mass (without accessories): ............................................ 13.5 kg
    • Pollution degree: ............................................................. 2
    • Degree of protection (at closed cover): ........................... IP 50
    • Overvoltage category: ..................................................... Cat III / 300V, Cat II / 600V
    • Protection classification: .................................................. I
    • Working temp. range:....................................................... (0 - +40) ˚C
    • Ref. temp. range: .............................................................. (+5 - +35) ˚C
    • Ref. humidity range: ......................................................... (+40 - +70) % RH
    • Storage temp. range: ....................................................... (-10 - +60) ˚C
    • Max. working humidity: .................................................... 85% RH (0 - +40) ˚C
    • Max. storage humidity: ..................................................... 90% RH (-10 - +40) ˚C 80% RH (+40 - +60) ˚C
  • Supplied Accessories

    • Chauvin Arnoux CA6160 Machinery Tester
    • 1 mains cable (EURO or GB)
    • 2 pistol-grip dielectrical testers with 2 metre-long wire
    • 2 insulation test wires, 3 metres long (1 red, 1 black)
    • 4 alligator clamps (2 red, 2 black)
    • 2 test probes (1 red, 1 black)
    • 4 continuity test cables, 2.5 metres long (2 red, 2 black)
    • 1 discharge time cable (EURO or GB)
    • 5 instruction manuals (5 languages)
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux CA6150/6160 Datsheet    Size: (674.66 KB)
  • Product Questions

    Please Sign in or Create an account to post a question.

    There are no entries.

  • Reviews

    There are currently no reviews for this product. If you have previously purchased it please leave a review using our quick and easy form to the right.

    Write Your Own Review

    Only registered users can write reviews. Please, log in or register

  • Delivery Information

    At Test-Meter.co.uk we understand the importance of a reliable delivery service when shopping online. Especially when the goods are often essential to your working day. If your goods are required by a certain date please feel free to contact us for an honest and realistic indication whether this can be met. We aim to process all orders we receive within 1 to 3 working days, however from time to time we do have an increased demand for certain products or there might be delays from the manufacturer. In such cases delivery of your equipment may be subject to a minor delay.

    We use DPD/Interlink for all larger items and Royal Mail for smaller items and accessories. With DPD/Interlink you will receive a 1 hour delivery window on the day of delivery via e-mail/text and a notification 15 minutes before arrival so you will not have to wait around all day. You can even manage your booking online and re-arrange delivery for another date or arrange the goods to be left with a neighbour of your choice.

    We also offer delivery options for goods required urgently on certain products, all which are sent by DPD/Interlink.

    Our charges for UK deliveries:

    • FREE Delivery (on select products only): typically 3-5 working days*
    • Standard Delivery at £4.95: 2-3 working days
    • Next Working Day Delivery (on select products only) at £7.50
    • Pre-Noon Next Working Day Delivery (on select products only) at £9.50*
    • Pre-10.30am Next Working Day Delivery (on select products only) at £18.50*
    • Saturday Pre-Noon Delivery (on select products only) at £14.50*
    • Sunday Pre-Noon Delivery (on select products only) at £14.50*

    *UK mainland only

    NOTE! For next working day or Saturday/Sunday delivery options the order MUST be placed no later than 3pm on the working day before delivery is required. After 3pm, please arrange with our staff before selecting a priority delivery service. Priority services are available to UK mainland residents only (this might exclude certain areas in the north of Scotland).

    Customers outside the UK:

    Test-Meter.co.uk exports to many countries all over the world. Prices for shipping vary on location and weight/dimensions. Costs are calculated for certain countries at the checkout. If your country is not included in this list please e-mail admin@test-meter.co.uk with your name, address and the items you would like to order for an accurate shipping quote or go to http://www.test-meter.co.uk/test-equipment-export for more information.

    For more information on delivery, please see our terms and conditions.
