Chauvin Arnoux CA6292 200A Digital Micro Ohmmeter

Chauvin Arnoux
SKU: CHAUCA6292
  • Resistance measurement up to 1Ω and a micro-resolution of 0.1µΩ
  • Fully adjustable test current range from 20A to 200A
  • Waterproof outer casing and internal cooling system for safe operation
More Info
Typically ships in 5-7 working days

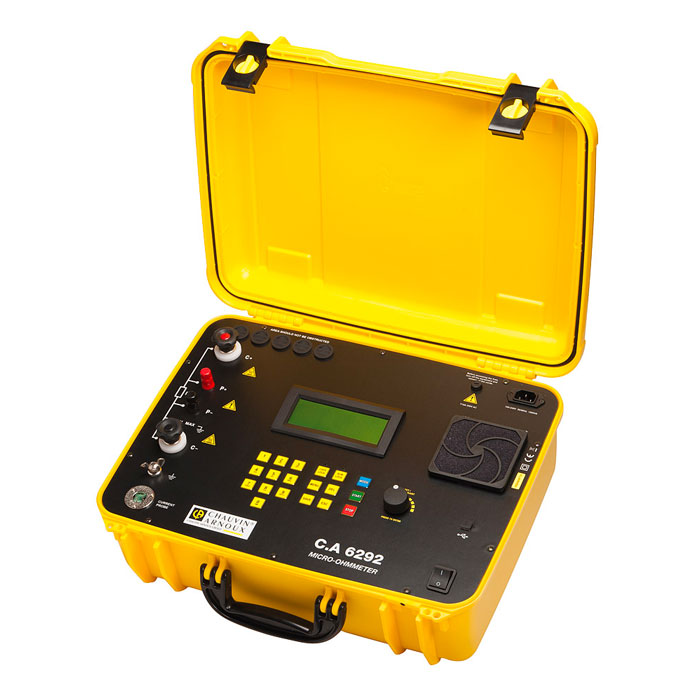

Chauvin Arnoux CA6292 200A Digital Micro Ohmmeter

The Chauvin Arnoux CA6292 200A Digital Micro Ohmmeter can safely test resistance up to 1Ω with a maximum resolution of just 0.1µΩ thanks to a fully adjustable test current from 20A to 200A. Tests at up to 100A can have an unlimited duration for comprehensive testing. There are also automatic test currents of 50A, 100A, 150A and 200A for speedy testing. The micro ohmmeter can be used in a range of industries and has multiple applications across rail, maintenance, metallurgy and manufacturing.

Measuring resistance with the Chauvin Arnoux CA6292 is very safe thanks to its ‘both sides grounded’ (BSG) testing method which has earths on both sides of the circuit or object under test (requires optional MR 6292 current clamp). This negates any inductive phenomena and the optional clamp can also measure current between 1 and 50A DC. Reliability is enhanced by the four-wire measurement method which produces accuracy of ±1%.

Results are shown on the four-line, backlit display and up to 8,000 measurements can be stored in the Chauvin Arnoux CA6292’s internal memory. Measurement information can then be downloaded to a PC via the supplied USB cable. From there, Chauvin Arnoux DataView® software can be used for analysis and reporting. Operation is undertaken via a simple dial and push-button interface or through a PC.

The Chauvin Arnoux CA6292 comes supplied with a full range of accessories and the manufacturer provides a 12-month warranty. The waterproof casing and an internal cooling system on the instrument make sure it is suitable for a wide range of challenging environments and further protect the user.

Chauvin Arnoux part number: P01143300

Key Features

  • Resistance resolution: 0.1µΩ, 10µΩ, 1mΩ
  • Resistance range: 0.1µΩ to 1Ω
  • Test current: Adjustable from 20A to 200A
  • Pre-set test currents: 50A, 100A, 150A, 250A
  • Accuracy: ±1%
  • ‘Both sides grounded’ earthing (requires current clamp)
  • Four-wire test method
  • Internal memory for 8,000 readings
  • Backlit LCD screen
  • Data transfer via USB
  • DataView® software included
  • 12-month warranty

What's In The Box?

  • Chauvin Arnoux CA6292 200A Digital Micro Ohmmeter
  • 1 mains power cable
  • 1 set of 2 Kelvin leads 6m long (red / black) with adjustable-clamp connections
  • 1 green earth/ground lead 3m long terminated by a crocodile clip
  • 1 USB A/B cable 1.5 m long
  • 1 user manual on CD-ROM (1 file per language)
  • 1 multilingual Quick Start Guide
  • 1 CD-ROM containing the MOT and DataView® software
  • 1 multilingual safety datasheet
  • 1 carry case
  • 1 accessory case
Specification
  • Test current: Programmable from approx. 20 A to 200 A
  • Resistance: 0.1 μΩ to 2 mΩ / 2 to 200 mΩ / 200 mΩ to 1 Ω
  • Resolution: 0.1 μΩ (200 A max) / 10 μΩ (25 A max to 200 mΩ) / 1 mΩ (5 A max to 1 Ω)
  • Accuracy: ± 1% from 50 µΩ to 1 Ω
  • Output voltage: 110 Vac: 4.2 V @ 200 A / 220 Vac: 8.6 V @ 200 A
  • Maximum load resistance: 110 Vac: 20 mΩ @ 200 A / 220 Vac: 42 mΩ @ 200 A
  • Measurement method: 4 Kelvin-type connection terminals
  • Test mode: Normal or BSG (Both Sides Grounded)
  • Test duration: Adjustable from 5 to 120s @200 A / unlimited up to 100 A
  • Data storage: Up to 8,000 measurement results
  • Interface: USB 2.0
  • Software: DataView®
  • Power supply: 100 to 240 Vac – 50/60 Hz
  • Dimensions: 502 x 394 x 190 mm
  • Weight: 13 kg approx. (excluding accessories)
  • Operating temperature: 0 °C to +55 °C
  • Storage temperature: -10 °C to +70 °C
  • Humidity: 95% RH
  • Protection: Protected against voltage surges, short-circuits, overheating and overvoltages on the output terminals
  • Ingress protection: IP54
  • Electrical safety: IEC 61010-1

CURRENT MEASUREMENT WITH THE OPTIONAL MR6292 CLAMP (BSG MODE)

  • Measurement range: 1.0 - 50.0 Adc
  • Resolution: 0.1 mA
  • Intrinsic uncertainty: ± (1,5% + 2 Digit)
  • Output signal: 10 mV / Adc
  • Load impedance: > 100 kΩ // 100 pF
  • Influence of conductor position in jaws: 0.50 %
