Chauvin Arnoux CA6505 HV Insulation Tester

Be the first to review this product

  • Enormous insulation resistance measurement range of 10kΩ to 10TΩ
  • Simple ‘Go/No go’ indication plus qualitative PI / DAR ratio analysis
  • Measures voltage (5100V), capacitance (49.99F) and leakage current (3000A)

rrp £1,975.00

now £1,649.00 (Ex. VAT) £1,978.80 (Inc. VAT)

rrp £1,975.00

Please select a free gift below.

"A simple 'Go/No go' indication of insulation quality"

  • Description

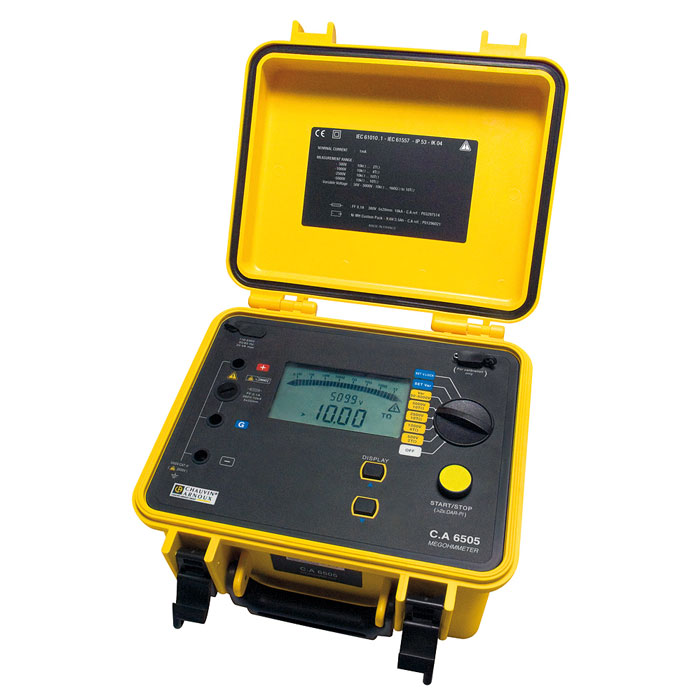

    Chauvin Arnoux CA6505 HV Insulation Tester

    The Chauvin Arnoux CA6505 HV Insulation Tester is suitable for use in the field thanks to its site-proof casing. It has fully adjustable test voltage between 40V and 5100V as well as pre-set test voltages of 500V, 1000V, 2500V and 5000V which allow insulation resistance measurement between 10kΩ and 10TΩ. Other measurement functions include voltage measurement, capacitance and leakage current, all with extremely large ranges and high accuracy.

    Advanced measurement features like polarisation index and dielectric absorption ratio allow the user to accurately assess insulation quality whilst allowing for changes in temperature and humidity. Furthermore, adjustable duration tests perform a similar empirical function by adjusting for disturbance currents.

    Results are shown on the Chauvin Arnoux CA6505’s huge, backlit, LCD screen which also has an analogue bar graph for showing readings dynamically. A simplified analysis process can give a ‘Go/No go’ indication of insulation status or provide more detailed qualitative information on PI, DAR and resistance values. Operation is undertaken via a surprisingly straightforward dial and push-button interface whilst locking the test voltages helps prevent mistakes from inexperienced users.

    A low weight of just 4kg means that it is easy to transport around large sites and there are ergonomic handles as well as protective casing which gives the Chauvin Arnoux CA6505 an ingress protection rating of IP53. One charge of the rechargeable NiMh battery powers the instrument for roughly 30 days and there is an AC charging point built in to the tester’s body. All necessary accessories are supplied as standard and the tester is rated as Cat III 1000V.

    Chauvin Arnoux part number: P01139704

    Key Features

    • Insulation resistance range: 10kΩ to 10TΩ
    • Voltage range: 1 to 5100V
    • Capacitance range: 0.0001 to 49.99F
    • Leakage current range: 0 to 3000A
    • Test voltage adjustable from 40V to 5100V
    • Pre-set test voltages: 500V, 1000V, 2500V, 5000V
    • PI / DAR ratio measurement
    • Programmable, timed insulation tests
    • ‘Go/No go’ indication OR qualitative analysis
    • Enormous, backlit, LCD display
    • Rechargeable battery
    • Light and portable
    • Cat III 1000V, Cat I 2500V
    • 12-month warranty
  • Specification


    • Fixed test voltages: 500 / 1,000 / 2,500 / 5,000 V
    • Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments
    • Range (500 V): 10 kΩ to 2 TΩ
    • Range (1,000 V): 10 kΩ to 4 TΩ
    • Range (2,500 V): 10 kΩ to 10 TΩ
    • Range (5,000 V): 10 kΩ to 10 TΩ

    Other measurements

    • Voltage: 1 to 5,100 V (15 Hz to 500 Hz or DC)
    • Capacitance: 0.001 to 49.99 F
    • Leakage current: 0.000 nA to 3,000 A


    • Display: Giant LCD
    • Backlighting: YES
    • Prog. test duration: YES
    • Calculation of ratios: DAR - PI
    • Locking of test voltage: YES
    • Power supply: Rechargeable NiMH battery
    • Battery life: 30 days with 10 DARs and 5 PIs / day
    • Electrical safety: IEC 61010-1 (Cat. III 1,000 V or Cat. I 2,500 V) and 61557
    • Dimensions: 270 x 250 x 180 mm
    • Weight: 4.3 kg
    • Warranty: 12 months
  • Supplied Accessories

    • Chauvin Arnoux CA6505 Megohmmeter
    • 1 carrying bag
    • 2 simplified measurement leads 2 m long, equipped with an HV plug at each end (red / blue)
    • 1 guarded safety lead 2 m long, equipped with an HV plug at one end and an HV plug with rear connection at the other end (black)
    • 1 guarded safety lead 0.35 m long, equipped with an HV plug at one end and an HV plug with rear connection at the other end (blue)
    • 3 crocodile clips (red, blue and black)
    • 1 mains power cable 1.80 m long
    • 1 operating manual in 5 languages
