Chauvin Arnoux CA6524 Insulation Tester

Be the first to review this product

  • Extremely wide insulation resistance measurement range of 0 to 200GΩ
  • Test voltages of 50V, 100V, 250V, 500V and 1000V
  • Multimeter functions such as frequency, voltage, and resistance measurement

rrp £480.00

now £396.95 (Ex. VAT) £476.34 (Inc. VAT)

rrp £480.00

Please select a free gift below.

"Suitable for work on industrial insulation"

  • Description

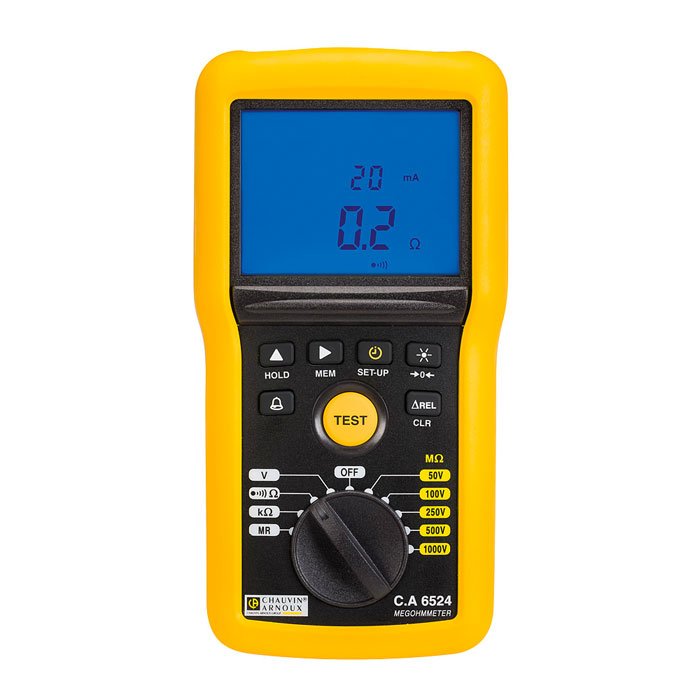

    Chauvin Arnoux CA6524 Insulation Tester

    Suited to insulation testing on industrial installations, the Chauvin Arnoux CA6524 Insulation Tester has an extremely high resistance measurement range (200GΩ) and multiple test voltages (50V, 100V, 250V, 500V, 1000V) which gives the user flexibility when measuring degradation or ageing in industrial insulation. Continuity tests are possible with this megohmmeter whilst the instrument also boasts multimeter functions such as voltage measurement (700V), frequency measurement (800Hz), and regular resistance measurement (1kΩ).

    A timer can be set to measure insulation resistance over a certain period and record the results to the Chauvin Arnoux CA6524’s internal memory which has space for up to 300 readings. Other advanced measurement functions include PI / DAR ratios which prevents temperature affecting assessment of insulation quality whilst relative measurement provides a more in-depth picture insulation performance. An adjustable alarm can be set to sound when resistance is too low and I leakage testing is also possible.

    The Chauvin Arnoux CA6524 is a very practical megohhmeter. It has a magnetic mount for hands-free use and the backlit screen shows figures very clearly as well as displaying an analogue bar graph. Operation is performed via a simple dial and push-button interface and the tester is supplied with test leads, crocodile clips, a carry case and a remote control probe. The safety rating is Cat IV 600V and there is a 24-month warranty from the manufacturer.

    Chauvin Arnoux part number: P01140824

    Key Features

    • Insulation resistance range: 200GΩ
    • Multiple test voltages: 50V, 100V, 250V, 500V, 1000V
    • Voltage range: 700V
    • Frequency range: 800Hz
    • Resistance range: 1kHz
    • Relative measurement mode
    • Timed tests at adjustable intervals
    • Continuity testing
    • Cat IV 600V
    • 24-month warranty
  • Specification

    Voltage

    • Measurement range / Resolution: 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V
    • Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
    • Operating frequency DC: 15.3-800 Hz

    Frequency

    • Measurement range / Resolution / Accuracy: 15.3 Hz-399.9 Hz / 0.1 Hz / ± (1 % + 2 cts); 400-800 Hz / 1 Hz / ± (1 % + 1 ct)

    Insulation

    • Test voltage: 50 - 100 - 250 - 500 - 1,000 V
    • Range at maximum test voltage: 200 GΩ
    • Compliance with IEC 61557-2 standard: 2 GΩ
    • Measurement range at 50V: 10 kΩ-10 GΩ
    • Measurement range at 100V: 20 kΩ-20 GΩ
    • Measurement range at 250V: 50 kΩ-50 GΩ
    • Measurement range at 500V: 100 kΩ-100 GΩ
    • Measurement range at 1000V: 200 kΩ-200 GΩ
    • Measurement range / Resolution: 10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ
    • Accuracy: ± (3 % + 2 cts)
    • Test voltage (I < 1 mA): -0 % + 20 %
    • Display of test voltage: ± (3 % + 3 cts)
    • Display of test current / resolution: 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA
    • Accuracy of test current: ± (10 % + 3 cts)
    • PI/DAR ratios: 10 min / 1 min - 1 min / 30 s
    • Timer (min:s): 0:00 - 39:59
    • Discharge time (at 25V): < 2 s/µF
    • Alarms: 2 fixed thresholds + 1 programmable threshold

    Continuity

    • Range for continuity measurement: 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA)
    • Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / ≥ 6 V
    • Measurement current: 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA
    • Continuity thresholds (quick beep): 2 Ω, 1 Ω, programmable threshold
    • Compensation of cables: Up to 9.99 Ω

    Resistance

    • Measurement range / Resolution / Accuracy: 0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts); 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts)

    General specifications

    • Display: 2 x 4,000 cts + logarithmic bargraph
    • Storage: 300 measurements
    • Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min, deactivatable
    • Battery life: 1,500/2,500/6,000 measurements: UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF)
    • Dimensions (h x w x d) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
    • EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV
    • Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
    • Warranty: 2 years
  • Supplied Accessories

    • Chauvin Arnoux CA6524 Insulation Tester
    • Multi-lingual instruction CD for CA6524 Insulation Tester
    • Remote control probe
    • Test lead
    • Crocodile clip
    • 6 x AA batteries
    • Carry case
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux CA652X/CA653X Datasheet    Size: (761.35 KB)
