Chauvin Arnoux CA6532 Telecommunications Insulation Tester

Be the first to review this product

  • Designed for testing insulation on telecommunications/telephone lines
  • Test voltages of 50V and 100V for resistance measurement up to 20GΩ
  • Linear capacitance measurement and cable length calculation

rrp £650.00

now £545.00 (Ex. VAT) £654.00 (Inc. VAT)

rrp £650.00

Please select a free gift below.

"Ideal for insulation testing in the telecommunications industry"

  • Description

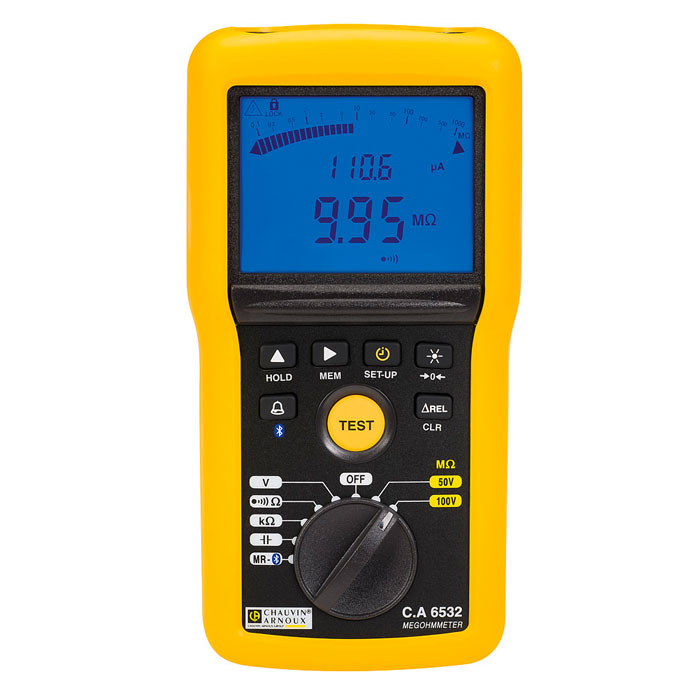

    Chauvin Arnoux CA6532 Telecommunications Insulation Tester

    The Chauvin Arnoux CA6532 Telecommunications Insulation Tester has been specifically designed for the telecom industry and is therefore ideal for measuring insulation on telephone lines. Test voltages can be of either 50V or 100V which allows high-resolution insulation resistance measurement of up to 20GΩ. Tests can be set to a timer and leakage current measurement is an important aspect of the tester. Furthermore, calculation of PI / DAR ratio allows assessment of resistance quality without temperature-related inaccuracy.

    Numerous advanced measurement features make the Chauvin Arnoux CA6532 ideal for inspecting telephone cables. Multimeter-type functionality includes measurement of voltage, regular resistance, capacitance and frequency as well as continuity testing at 20mA and 200mA. Relative mode allows the user to compare the resistance of two wires whilst linear capacitance can indicate the length of cable under inspection plus give a reading for nF/km.

    Operating the Chauvin Arnoux CA6532 is very simple despite its many capabilities because of a simple dial and push-button interface in addition to a magnetic mount. The bright, backlit screen displays results clearly and simply and also has an analogue bar graph for added depth. Up to 1300 readings can be saved to the megohmmeter’s internal memory and then downloaded to a smart device via Bluetooth connectivity. From there, analysis can be undertaken through optional Chauvin Arnoux DataView software.

    Several accessories are supplied with the Chauvin Arnoux CA6532 and the robust construction is ideally suited to field use. The instrument is safety rated Cat IV 600V and is covered by a two-year warranty.

    Chauvin Arnoux part number: P01140832

    Key Features

    • Insulation resistance range: 20GΩ
    • Test voltages: 50V and 100V
    • Continuity and resistance testing
    • PI/DAR ratio and leakage current measurement
    • Alarms and adjustable times tests
    • Voltage, frequency, capacitance measurement
    • Linear capacitance measurement
    • Cable length calculation
    • Relative mode for comparing wires
    • Internal storage for up to 1300 results
    • Connectivity via Bluetooth
    • Cat IV 600V
    • Two-year warranty
  • Specification

    Voltage

    • Measurement range / Resolution: 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V
    • Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
    • Operating frequency DC: 15.3-800 Hz

    Frequency

    • Measurement range / Resolution / Accuracy: 15.3 Hz-399.9 Hz / 0.1 Hz / ± (1 % + 2 cts); 400-800 Hz / 1 Hz / ± (1 % + 1 ct)

    Insulation

    • Test voltage: 50 - 100 V
    • Range at maximum test voltage: 20 GΩ
    • Compliance with IEC 61557-2 standard: 2 GΩ
    • Measurement range at 50V: 10 kΩ-10 GΩ
    • Measurement range at 100V: 20 kΩ-20 GΩ
    • Measurement range / Resolution: 10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ
    • Accuracy: ± (3 % + 2 cts)
    • Test voltage (I < 1 mA): -0 % + 20 %
    • Display of test voltage: ± (3 % + 3 cts)
    • Display of test current / resolution: 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA
    • Accuracy of test current: ± (10 % + 3 cts)
    • PI/DAR ratios: 10 min / 1 min - 1 min / 30 s
    • Timer (min:s): 0:00 - 39:59
    • Discharge time (at 25V): < 2 s/µF
    • Alarms: 2 fixed thresholds + 1 programmable threshold

    Continuity

    • Range for continuity measurement: 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA)
    • Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / ≥ 6 V
    • Measurement current: 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA
    • Continuity thresholds (quick beep): 2 Ω, 1 Ω, programmable threshold
    • Compensation of cables: Up to 9.99 Ω

    Resistance

    • Measurement range / Resolution / Accuracy: 0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts); 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts)

    Capacitance

    • Measurement range / Resolution: 0.1 nF -399.9 nF / 0.1 nF; 400 nF -3,999 nF / 1 nF; 4.00 µF -10.0 µF / 10 nF
    • Accuracy: ± (3 % + 2 cts)
    • Line length: 0 -100 km

    General specifications

    • Display: 2 x 4,000 cts + logarithmic bargraph
    • Storage: 300 measurements
    • Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min, deactivatable
    • Battery life: 1,500/2,500/6,000 measurements: UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF)
    • Dimensions (h x w x d) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
    • EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV
    • Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
    • Warranty: 2 years
  • Supplied Accessories

    • Chauvin Arnoux CA6532 Telecommunications Insulation Tester
    • Multi-lingual instruction CD for CA6532 Insulation Tester
    • Remote control probe
    • Test lead
    • Crocodile clip
    • 6 x AA batteries
    • Carry case
    • Data transfer software
    • Wire grips
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux CA652X/CA653X Datasheet    Size: (761.35 KB)
