Chauvin Arnoux CA6534 Electronics Insulation Tester

Be the first to review this product

  • Specially designed for testing electronics e.g. power phase and low current
  • Test voltages of 10V to 500V with maximum resistance of 50GΩ
  • Acts as tester on electrostatic discharge applications with correct electrodes

rrp £610.00

now £530.00 (Ex. VAT) £636.00 (Inc. VAT)

rrp £610.00

Please select a free gift below.

"Specifically designed for use on electronics"

  • Description

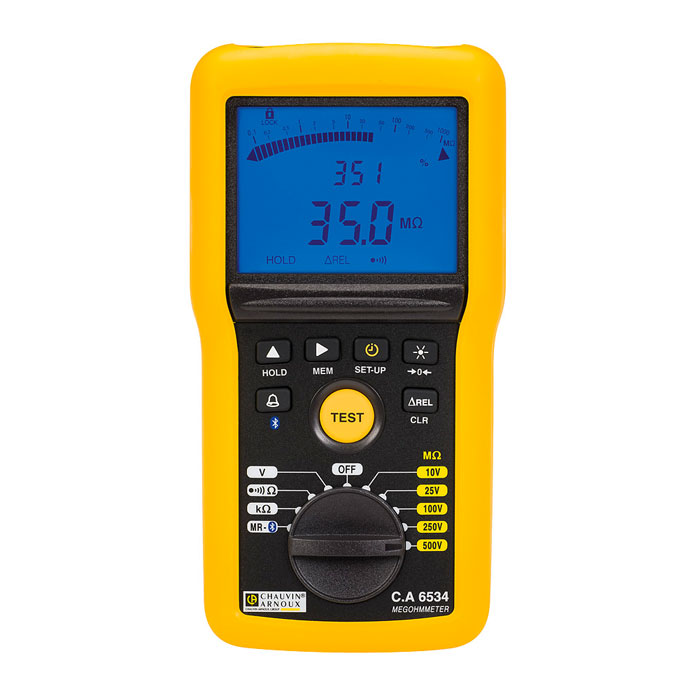

    Chauvin Arnoux CA6534 Electronics Insulation Tester

    The Chauvin Arnoux CA6534 Electronics Insulation Tester is a specialist megohmmeter designed for use with electronics. Test voltages of 10V, 25V, 100V, 250V and 500V allow the user to accurately test insulation on both low current applications and power stages from 2kΩ to 50GΩ. Additional electrodes can also be used to convert the tester for use in electrostatic discharge applications.

    Other advanced measurement features on the Chauvin Arnoux CA6534 include leakage current and adjustable alarms whilst relative measurement mode allows comparison of separate cables. The tester can measure AC voltage up to 700V as well as performing continuity and resistance tests whilst there are also three alarms (2 fixed, 1 adjustable).

    A magnetic mount allows the Chauvin Arnoux CA6534 to be used hands-free and clearly labelled push buttons compliment simple dial operation. Readings are clearly shown on the backlit display via a digital readout and an analogue bar graph and the internal memory can store up to 1300 results. Bluetooth connectivity allows data transfer to the user’s smart device where optional DataView software can be employed to carry out detailed analysis.

    Several accessories are included with the Chauvin Arnoux CA6534 so it is ready to use straight out of the box. A two-year warranty covers this sturdy insulation tester against breakdown and it is safety rated as Cat IV 600V.

    Chauvin Arnoux part number: P01140834

    Key Features

    • Test voltages: 10V, 25V, 100V, 250V, 500V
    • Insulation resistance range: 2kΩ to 50GΩ
    • Adapts to electrostatic discharge applications
    • AC voltage and regular resistance measurement
    • Leakage current measurement
    • Relative mode
    • Bright, LCD display with bar graph
    • Internal memory with 1300 reading capacity
    • Bluetooth data transfer
    • Fixed and adjustable alarms
    • Cat IV 600V
    • Two-year warranty
  • Specification

    Voltage

    • Measurement range / Resolution: 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V
    • Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
    • Operating frequency DC: 15.3-800 Hz

    Insulation

    • Test voltage: 10 - 25 - 100 - 250 - 500V
    • Range at maximum test voltage: 50 GΩ
    • Compliance with IEC 61557-2 standard: 2 GΩ
    • Measurement range at 10V: 2kΩ - 1GΩ
    • Measurement range at 25V: 5kΩ - 2GΩ
    • Measurement range at 100V: 20 kΩ-20 GΩ
    • Measurement range at 250V: 50 kΩ-50 GΩ
    • Measurement range at 500V: 100 kΩ-100 GΩ
    • Measurement range / Resolution: 10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ
    • Accuracy: ± (3 % + 2 cts)
    • Test voltage (I < 1 mA): -0 % + 20 %
    • Display of test voltage: ± (3 % + 3 cts)
    • Display of test current / resolution: 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA
    • Accuracy of test current: ± (10 % + 3 cts)
    • PI/DAR ratios: 10 min / 1 min - 1 min / 30 s
    • Timer (min:s): 0:00 - 39:59
    • Discharge time (at 25V): < 2 s/µF
    • Alarms: 2 fixed thresholds + 1 programmable threshold

    Continuity

    • Range for continuity measurement: 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA)
    • Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / ≥ 6 V
    • Measurement current: 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA
    • Continuity thresholds (quick beep): 2 Ω, 1 Ω, programmable threshold
    • Compensation of cables: Up to 9.99 Ω

    Resistance

    • Measurement range / Resolution / Accuracy: 0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts); 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts)

    General specifications

    • Display: 2 x 4,000 cts + logarithmic bargraph
    • Storage: 300 measurements
    • Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min, deactivatable
    • Battery life: 1,500/2,500/6,000 measurements: UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF)
    • Dimensions (h x w x d) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
    • EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV
    • Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
    • Warranty: 2 years
  • Supplied Accessories

    • Chauvin Arnoux CA6534 Electronics Insulation Tester
    • Multi-lingual instruction CD for CA6534 Insulation Tester
    • Remote control probe
    • Test lead
    • Crocodile clip
    • 6 x AA batteries
    • Carry case
    • Data transfer software
    • Wire grips
