Chauvin Arnoux CA6536 Insulation Tester

Be the first to review this product

  • Test voltage completely adjustable between 10V and 100V
  • Insulation resistance measurement from 2kΩ to 20GΩ
  • AC voltage measurement, resistance testing, and continuity testing

rrp £595.00

now £491.30 (Ex. VAT) £589.56 (Inc. VAT)

rrp £595.00

Please select a free gift below.

"Fully adjustable test voltage range from 10V to 100V"

  • Description

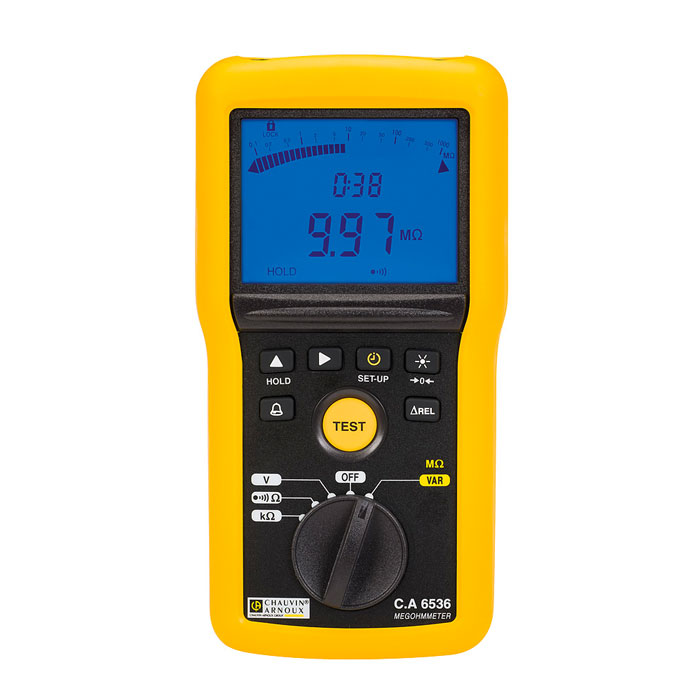

    Chauvin Arnoux CA6536 Insulation Tester

    The Chauvin Arnoux CA6536 Insulation Tester’s completely adjustable test voltage from 10V to 100V makes it suitable for specialist sectors such as aviation, space and defence where insulation needs to be tested with specific low voltages. Accuracy with the test voltage is just ±0.5V. With an insulation resistance measurement range of 2kΩ up to 20GΩ, the tester can accurately test all sorts of insulation whilst continuity and regular resistance testing constitute useful additional features. It is also possible to measure AC voltage up to 700V with this megohmmeter.

    Timed, programmable insulation testing and adjustable alarms make the Chauvin Arnoux CA6536 very adaptable and operation is very straightforward thanks to the instrument’s simple interface. Results are displayed on a backlit digital screen (with analogue bar graph) and the tester also has relative mode to compare different results.

    A remote control probe with a torch is supplied as standard and the magnetic mount makes the tester easy to use hands-free. It is rated as Cat IV 600V and has a two-year warranty. Other supplied accessories include test leads, a crocodile clip, a carry case and wire grips.

    Chauvin Arnoux part number: P01140836

    Key Features

    • Adjustable test voltage from 10V to 100V
    • Suitable for highly specialist testing
    • Continuity and resistance tests
    • Insulation resistance up to 20GΩ
    • AC voltage measurement up to 700V
    • Programmable timed insulation tests
    • Adjustable and fixed alarms
    • Relative measurement mode
    • Remote control probe with torch
    • Cat IV 600V
    • Two-year warranty
  • Specification

    Voltage

    • Measurement range / Resolution: 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V
    • Accuracy / Input impedance: ± (3 % + 2 cts) / 400 kΩ
    • Operating frequency DC: 15.3-800 Hz

    Insulation

    • Test voltage: 10 to 100V in 1V increments
    • Range at maximum test voltage: 20 GΩ
    • Compliance with IEC 61557-2 standard: 2 GΩ
    • Measurement range at 10V: 2kΩ - 1GΩ
    • Measurement range at 25V: (UN/5) kΩ - (UN/5) GΩ
    • Measurement range at 50V: (UN/5) kΩ - (UN/5) GΩ
    • Measurement range at 100V: 20 kΩ-20 GΩ
    • Variable test voltage: 10V to 100V
    • Measurement range / Resolution: 10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ
    • Accuracy: ± (3 % + 2 cts)
    • Test voltage (I < 1 mA): ±0.5V
    • Display of test voltage: ± (3 % + 3 cts)
    • Display of test current / resolution: 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA
    • Accuracy of test current: ± (10 % + 3 cts)
    • Timer (min:s): 0:00 - 39:59
    • Discharge time (at 25V): < 2 s/µF
    • Alarms: 2 fixed thresholds + 1 programmable threshold

    Continuity

    • Range for continuity measurement: 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA)
    • Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / ≥ 6 V
    • Measurement current: 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA
    • Continuity thresholds (quick beep): 2 Ω, 1 Ω, programmable threshold
    • Compensation of cables: Up to 9.99 Ω

    Resistance

    • Measurement range / Resolution / Accuracy: 0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts); 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts)

    General specifications

    • Display: 2 x 4,000 cts + logarithmic bargraph
    • Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min, deactivatable
    • Battery life: 1,500/2,500/6,000 measurements: UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF)
    • Dimensions (h x w x d) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
    • EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV
    • Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
    • Warranty: 2 years
  • Supplied Accessories

    • Chauvin Arnoux CA6536 Insulation Tester
    • Multi-lingual instruction CD for CA6536 Insulation Tester
    • Remote control probe
    • Test leads
    • Crocodile clip
    • 6 x AA batteries
    • Carry case
    • Wire grips
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux CA652X/CA653X Datasheet    Size: (761.35 KB)
