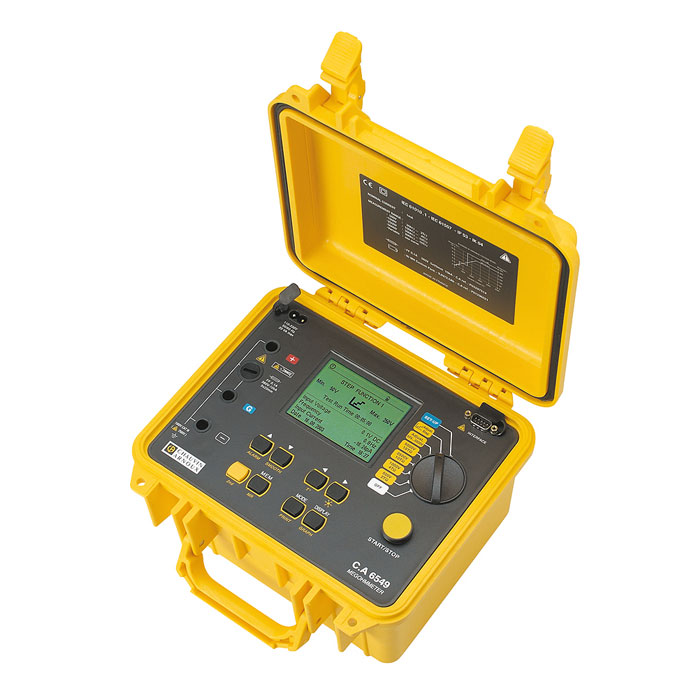

Chauvin Arnoux CA6549 5kV HV Insulation Tester

Be the first to review this product

  • Capable of PI, DAR ratio, and dielectric discharge index calculation
  • Real-time projection of R(t) graph on large, graphical display
  • Measures resistance (10TΩ), leakage current, capacitance and voltage

rrp £3,238.00

now £2,725.00 (Ex. VAT) £3,270.00 (Inc. VAT)

rrp £3,238.00

Please select a free gift below.

  • Description

    Chauvin Arnoux CA6549 5kV HV Insulation Tester

    The Chauvin Arnoux CA6549 HV Insulation Tester is a highly sophisticated megohmmeter with several advanced features in addition to insulation resistance measurement between 10kΩ and 10TΩ. Pre-set test voltages of 500V, 1000V, 2500V and 5000V are available whilst it is also possible to manually set the voltage between 40V and 5100V. Other measurements include capacitance (49.99F), voltage (5100V), and leakage current (3000A). Step voltage mode allows quantitive assessment of faulty insulation through a rising test voltage.

    Several additional options allow the user to make the most out of the Chauvin Arnoux CA6549’s expansive measurement capabilities. Adjustable alarms can be set by the user and the readout has a smoothing function for producing stable readings from fluctuating outputs. To help ensure accuracy, tests can be carried out with a programmable duration which negates problems related to stray transient current.

    Results are aided by polarisation index and dielectric absorption ratio which give a true picture of insulation quality whilst dielectric discharge measurement can detect faults in multi-layer or composite insulation. Aside from advanced, qualitative readings, a simple ‘Go/No go’ indication is also available.

    A major feature of the Chauvin Arnoux CA6549 is its large, graphic display. This can project a real-time R(t) graph on screen as well as providing clear, concise analytics across a wide range of different assessment criteria. A reference temperature can be set at the push of a button and internal memory allows storage of several thousand results.

    Readings can be transferred to a computer using the included RS-232 cable. From there, Chauvin Arnoux DataView software serves to map trends, print test protocols and create spreadsheet reports. Printing via a parallel or series printer is possible for instant hard copies whilst the hard casing and ergonomic, lightweight design make the Chauvin Arnoux CA6549 perfect for use on site. It has an IP53 ingression rating and is safety-rated as Cat III 1000V.

    Chauvin Arnoux part number: P01139703

    Key Features

    • Insulation resistance range: 10kΩ to 10TΩ
    • Fully adjustable test voltage from 40V to 5100V
    • Pre-set test voltages of 500V, 1000V, 2500V, 5000V
    • Programmable, timed tests
    • ‘Go/no go’ indication
    • PI / DAR ratio tests insulation quality
    • Dielectric discharge index for composite insulation
    • Large, graphical display
    • R(t) projection on screen
    • Smoothing function for fluctuating readings
    • Programmable alarms
    • RS232 communication cable
    • Internal memory for thousands of readings
    • 30-hour rechargeable battery life
  • Specification

    Insulation

    • Fixed test voltages: 500 / 1,000 / 2,500 / 5,000 V
    • Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments
    • Range (500 V): 10 kΩ to 2 TΩ
    • Range (1,000 V): 10 kΩ to 4 TΩ
    • Range (2,500 V): 10 kΩ to 10 TΩ
    • Range (5,000 V): 10 kΩ to 10 TΩ

    Other measurements

    • Voltage: 1 to 5,100 V (15 Hz to 500 Hz or DC)
    • Capacitance: 0.001 to 49.99 F
    • Leakage current: 0.000 nA to 3,000 A

    Functions

    • Display: Graphic
    • Backlighting: YES
    • Programmable alarms: YES
    • Smoothing of display: YES
    • Prog. test duration: YES
    • Calculation of ratios: DAR - PI and DD
    • Step voltage mode: 5 steps
    • Calc. of R at reference T°: YES
    • Locking of test voltage: YES
    • R(t): Directly on the display
    • Storage: 128 kB
    • RS 232: Two-way
    • Printing of measurements: Serial or parallel printer
    • PC software: DataView®
    • Power supply: Rechargeable NiMH battery
    • Battery life: 30 days with 10 DARs and 5 PIs / day
    • Electrical safety: IEC 61010-1 (Cat. III 1,000 V or Cat. I 2,500 V) and 61557
    • Dimensions: 270 x 250 x 180 mm
    • Weight: 4.3 kg
    • Warranty: 12 months
  • Supplied Accessories

    • Chauvin Arnoux CA6549 Megohmmeter
    • 1 carry bag
    • 2 safety leads 3 m long with HV plug and HV crocodile clip (red/blue)
    • 1 guarded safety plug 3 m long with an HV plug with rear connection and an HV crocodile clip (black)
    • 1 lead with rear connection (blue) 0.35 m long
    • 1 mains power cable 2 m long,
    • 1 communication lead,
    • 1 simplified operating manual
    • 1 operating manual in 5 languages
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux 5kV Insulation Tester Datasheet    Size: (718.99 KB)
