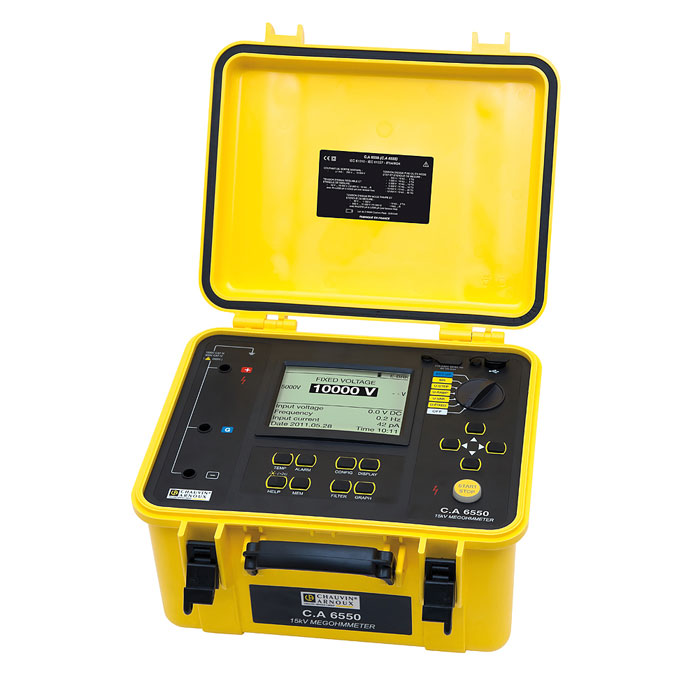

Chauvin Arnoux CA6550 10kV HV Insulation Tester

Be the first to review this product

  • Test voltages up to 10kV for measuring insulation resistance up to 25TΩ
  • PI, DAR ratio, DD index calculation, and relative mode analysis
  • Multiple graphs shown on screen including R(t)+u(t), i(t) and i(u)

rrp £3,410.00

now £2,875.00 (Ex. VAT) £3,450.00 (Inc. VAT)

rrp £3,410.00

Please select a free gift below.

"Advanced analysis with a 25TΩ resistance range"

  • Description

    Chauvin Arnoux CA6550 10kV HV Insulation Tester

    The Chauvin Arnoux CA6550 HV Insulation Tester is a powerful megohmmeter with a maximum test voltage of 10kV and an insulation resistance range of 10kΩ to 25TΩ. Fixed voltages are available from a minimum of 500V but a specific voltage between 40V and 10kV can be programmed according to the user’s needs. Voltage, capacitance and leakage current measurement add more depth to insulation inspection whilst voltage ramp and voltage step insulation testing (burning, early break, i-limits modes) help reveal drops in resistance at increased voltages. These capabilities make the instrument suitable for a range of sectors including electricity transmission and distribution.

    Several advanced features on the Chauvin Arnoux CA6550 make insulation analysis even more detailed. Polarisation index (PI) and dielectric absorption ratio (DAR) calculation negate reading variations related to temperature and humidity whilst programmable-duration testing prevents corrupt results due to transient current. Dielectric discharge calculation permits fault-finding on heterogenous insulation and relative mode can compare ppm/V ratios. Several graphs can be plotted using readings from the tester including R(t)+u(t), i(t) or i(u).

    Aside from complex analysis, the Chauvin Arnoux CA6550 also offers a ‘Go/No go’ indication of insulation condition via its graphic LCD display. A filter mode helps smooth fluctuating readings and a reference temperature allows the tester to calculate resistance at the specific temperature. Excessive damage to insulation can be avoided by setting the tester to stop testing once a fault is detected whilst a burning mode allows destructive testing on samples.

    The Chauvin Arnoux CA6550’s large internal memory has space for up to 80,000 readings and these can be transferred to a PC via the supplied USB lead. DataView software is provided as standard to enable data transfer and analysis as well as reporting and trend mapping. Time stamps can be saved with files thanks to a real-time clock.

    A full set of accessories mean that the Chauvin Arnoux CA6550 is ready to use straight out of the box and it has a 12-month manufacturer’s warranty. A Cat IV 1000V rating certifies that is very safe to use whilst the light weight of just 6kg makes it easy to transport.

    Chauvin Arnoux part number: P01139705

    Key Features

    • Insulation resistance range: 10kΩ to 25TΩ
    • Voltage measurement: 0 to 2500V AC / 4000V DC
    • Capacitance measurement: 0 to 49.99µF
    • Leakage current measurement: 0 to 8mA
    • ‘Go/No go’ indication
    • PI / DAR ratio / DD calculation
    • Multiple graphs displayed on-screen
    • ‘Burning’ mode for samples
    • Automatic test step on finding fault
    • Large graphic LCD display
    • 80,000-measurement internal memory
    • USB connectivity
    • DataView software provided as standard
  • Specification

    Insulation Testing

    • Range (500 V): 10 kΩ to 2 TΩ
    • Range (1,000 V): 10 kΩ to 4 TΩ
    • Range (2,500 V): 10 kΩ to 10 TΩ
    • Range (5,000 V): 10 kΩ to 15 TΩ
    • Range (10,000 V): 10 kΩ to 25 TΩ
    • Fixed test voltages: 500 / 1,000 / 2,500 / 5,000 / 10,000 V
    • Variable test voltages: 40 V - 10,000 V; 3 presettable voltage values
    • Adjustment increment for variable voltages: Variable 40-10 kV step : 40 V-1 kV: 10 V; 1 kV-10 kV: 100 V
    • Ramp mode: 3 presettable ramps: start voltage / end voltage / duration
    • Ramp configuration range: 40-1,100 V / 500-10,000 V
    • Step mode: Up to 10 steps (value and duration configurable for each step)

    Other measurements

    • Voltage measurement after test: AC: 0 – 2,500 V / DC: 0 – 4,000 V
    • Capacitance measurement: 0.001-9.999 µF / 10.00-49.99 µF
    • Leakage current measurement: 0 - 8 mA

    Additional test modes

    • I-limit Programmable: 0.2-5 mA
    • Early-break: di/dt
    • Timer: Up to 99 minutes 59 seconds
    • Burning mode: Constant testing

    Functions

    • Discharge after test: Yes / Automatic
    • Ratio calculation: PI, DAR, DD
    • Calculation of R at ref. T°: Yes
    • Measurement display: 3 filters with 3 possible time-constant
    • Graphs on display: R(t)+u(t); i(t); i(u);
    • Storage: 256 recordings, 80,000 points : R, U, I and date
    • Communication: Optically-isolated port for USB and RS232 links
    • PC software: DataView®
    • Power supply: NiMH rechargeable batteries, 8x 1.2 V / 4,000 mAh charging by external voltage: 90-260 V 50/60 Hz
    • Battery charging: Battery charging possible while performing insulation measurements
    • Electrical safety: 1,000 V CAT IV - IEC 61010-1 and IEC 61557
    • EMC, mechanical protection, altitude: EN 61326-1 , IP54 , 3,000 m
    • Dimensions and weight: (LxWxH) 340 x 300 x 200 mm, 6.2 kg approx. (excluding accessories)
  • Supplied Accessories

    • Chauvin Arnoux CA 6550 HV Insulation Tester
    • 1 x carry case
    • 2 x 3m safety leads equipped with an HV plug at each end (red / blue)
    • 1 x guard test lead 3 m long equipped with an HV plug at one end and an HV plug with rear
    • connection at the other end (black)
    • 3 x crocodiles clips (red, blue, black),
    • 2 x CAT IV 1,000 V test probes (red/black) for voltage measurements,
    • 1 x blue lead with rear connection
    • 1 x mains power cable 2 m long,
    • DataView® software
    • 1 x optical / USB communication lead
    • 1 x operating manual in 5 languages on CD-ROM
    • 5 x specification labels(1 per language)
  • Product Documents

    Product Attachments

    View FileChauvin Arnoux CA6550 / CA6555 Datasheet    Size: (862.24 KB)
