Chauvin Arnoux F401 True RMS Clamp Meter

Be the first to review this product

  • Measures current up to 1000A with True RMS non-linear functionality
  • Frequency, resistance, temperature, AC/DC voltage, and Inrush measurement
  • 48mm jaw opening and handy ergonomic design

rrp £260.00

now £205.00 (Ex. VAT) £246.00 (Inc. VAT)

rrp £260.00

Please select a free gift below.

"A large True RMS AC current range"

  • Description

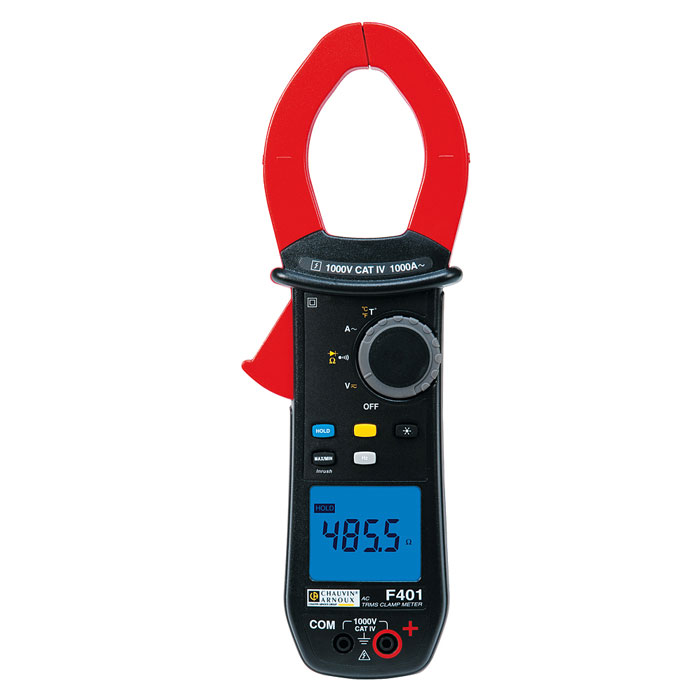

    Chauvin Arnoux F401 True RMS Clamp Meter

    The Chauvin Arnoux F401 True RMS Clamp Meter is a basic clamp meter which is designed for use on most mains-connected installations. It can measure AC voltage (1000V), DC voltage (1400V), and AC current (1000A) as well as frequency, resistance, and temperature. Basic accuracy is just ±1% and measurements are taken via supplied test leads and the F401’s 48mm jaw clamp. It is also possible to carry out diode and continuity testing with this meter. True RMS measurement aids accuracy on non-linear wave forms and the True Inrush function captures current spikes during start-up phases for single and multiple motors.

    Excellent ergonomics are a prominent feature of the Chauvin Arnoux F401 as it has been designed for one-handed use, even when the user is wearing thick protective gloves. For example, the operator dial is grooved for an easy grip and the interface works on a clear one-button, one-function basis. Results are displayed on the clear, backlit LCD screen which features data hold for when the screen is facing away from the user when taking readings. These features add together to form an extremely practical clamp meter.

    The sturdy build of the Chauvin Arnoux F401 means it can withstand a fall of up to 2m and high ingress protection (IP54) makes it resistant to dust, thus safeguarding performance and safety for the long term. The meter is rated as Cat III 1000V and Cat IV 1000V so it is very safe for work on installations. It comes supplied with test leads, a thermocouple and a case whilst a three-year warranty provides peace of mind.

    Key Features

    • AC voltage range: 1000V
    • DC voltage range: 1400V
    • AC current range: 1000A
    • Frequency range: 2000Hz (Current) / 20kHz (Voltage)
    • Resistance range: 99.99kΩ
    • Temperature range: -60˚C to 1000˚C
    • Continuity and diode test
    • 48mm jaw opening
    • True RMS measurement
    • Inrush current measurement
    • Simple one-handed operation
    • Clear, backlit, digital screen
    • IP54 ingress protection
    • Cat III 1000V, Cat IV 1000V
    • Three-year warranty
  • Specification

    • Clamping diameter: 48 mm
    • Display: Backlit LCD
    • Resolution: 10,000 counts
    • Number of values displayed: 1
    • Type of acquisition TRMS [AC]
    • Autorange: Yes
    • A AC: 0.15 to 1,000 A (1,500A peak)
    • Best accuracy: 1% reading + 3 cts
    • V AC: 0.15 to 1,000 V (1,400 V peak)
    • V DC: 0.15 to 1,400 V
    • HZ Current: (Current) 5.0 Hz to 2,000 Hz  / (Voltage) 5.0 Hz to 20.00 kHz
    • Ohm: 0.1 Ω to 99.99 kΩ
    • Open-circuit voltage: ≤ 8 V
    • Measurement current: ≤ 680 µA
    • Audible continuity: Yes
    • Continuity threshold: Adjustable from 1 to 999 Ω
    • Diode test: (semiconductor junction) Yes
    • Temperature (K type): -60.0ºC to +1,000.0°C / -76.0ºF to +1,832 °F
    • Single-phase and total three-phase power values: Yes
    • True InRush (Overcurrent measurement): Yes
    • Motor inrush: Yes
    • Load change: Yes
    • Hold: Yes
    • Min. / Max: Yes
    • Auto Power Off: Yes
    • Electrical safety as per IEC 61010: 1000V CAT IV & CAT III
    • Power supply: 4 x 1.5 V AA
    • Dimensions & weight: 92 x 272 x 41 mm / 600 g
  • Supplied Accessories

    • Chauvin Arnoux F401 True RMS Clamp Meter
    • Multi-language instructions for Chauvin Arnoux F401
    • Test leads
    • Test probes
    • 9V battery
    • Case
