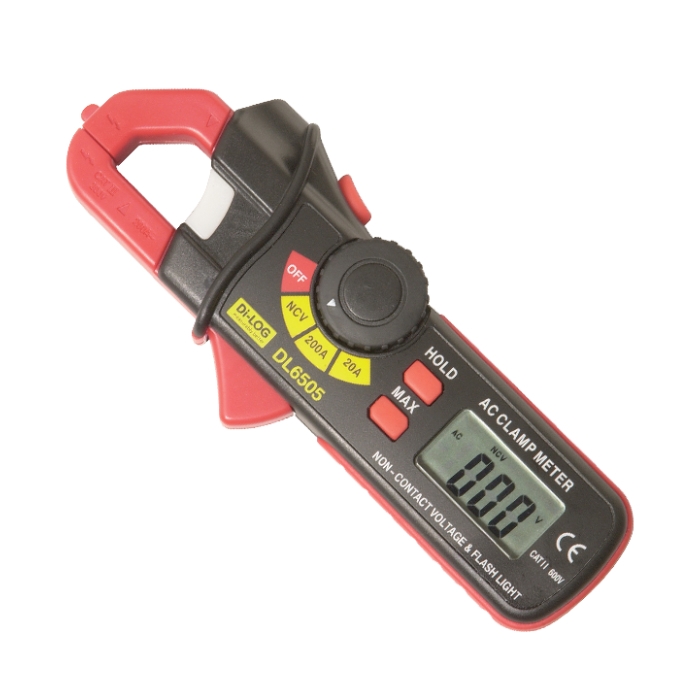

Dilog DL6505 Mini 200 Amp AC Clamp Meter

Be the first to review this product

  • Compact design capable of measuring AC Current up to 200A
  • High resolution to 10mA AC & maximum jaw width of 18mm
  • Includes non-contact voltage indicator & bright LED torch
In Stock
Returns Guarantee

rrp £84.99

now £59.00 (Ex. VAT) £70.80 (Inc. VAT)

rrp £84.99

OR

Please select a free gift below.

  • Description

    Dilog DL6505 Mini 200 Amp AC Clamp Meter

    The Dilog DL6505 Mini 200 Amp AC Clamp Meter is a handheld instrument, compact enough for tasks concerning even the most difficult to access cables. Despite its small size, the DL6505 can measure AC current between 10mA to 200A with an accuracy of 3% ±8 digits. Whilst being small enough to fit in the palm of a hand, this clamp meter also contains a built-in non-contact voltage indicator for AC currents 100 to 600V.

    Featuring a high resolution up to 10mA AC, this lightweight Dilog Mini Clamp Meter utilises a rigid jaw with an opening of 18mm. Battery powered and with a bright LED torch incorporated, the DL6505 boasts a 2000 count display, an auto off feature and includes both data hold & max current capture functions.

    Key Features

    • Measure current between 10mA to 200A AC
    • Basic accuracy of 3% ±8 digits
    • Included non-contact voltage meter
    • Non-contact voltage measurements between 100V AC to 600V AC
    • Max. clamp width of 18 mm
    • Bright LED Torch Light built-in
    • 2000 Count LCD Display
    • Data hold function
    • Max current capture function
    • Auto power off feature
    • AA Battery powered

    Dilog part number: DL6505

  • Specification

    • AC Current: 10mA – 200A
    • Accuracy: 3% ±8 digits
    • Non contact voltage: 100V AC to 600V AC
    • Power supply: 2 x 1.5V AAA battery
    • Dimensions: 164 x 65 x 32 mm
    • Weight: 175g
  • Product Documents

    Product Attachments

    View FileDilog DL6505 Datasheet    Size: (757.98 KB)
    View FileDilog DL6505 User Manual    Size: (1.51 MB)
