DiLOG DL6780-LOC1 Combivolt Lockout Kit

Di-LOG
SKU: DILOGDL6780LOC1
  • Two-pole voltage tester with clear LED bar graph
  • Set of safe isolation locks and tags
  • Suitable for a safe isolation process
More Info
Typically ships in 2-4 working days

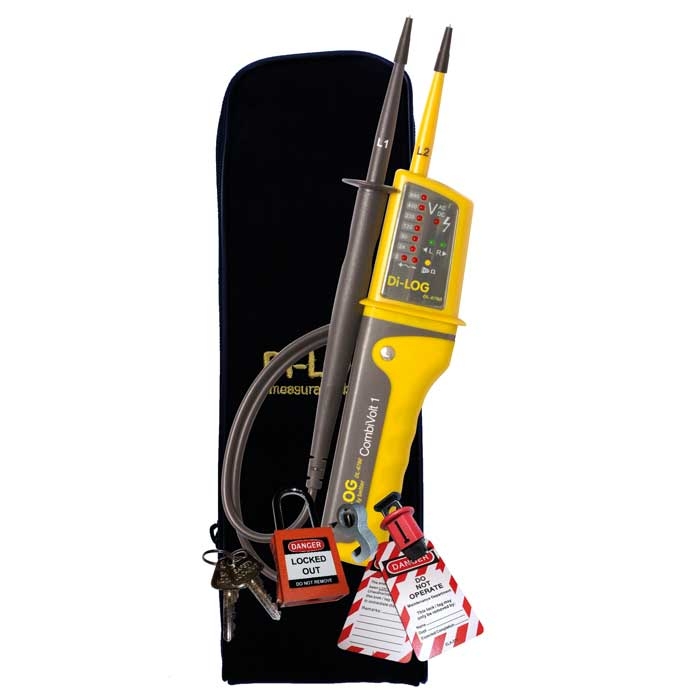

DiLOG DL6780-LOC1 Combivolt Lockout Kit

The DiLOG DL6780-LOC1 Combivolt Lockout Kit features a two-pole voltage tester and a number of safe isolation accessories that allow the user to carry out a safe isolation procedure when working on electrical installations in line with the Electricity at Work Regulations 1989.

DiLOG DL6780 Two-Pole Voltage Tester

The DiLOG DL6780 Two-Pole Voltage Tester is suitable for testing for live conductors via two-pole voltage testing or single-pole voltage indication. It has a two-pole detection range of 12V to 690V AC/DC and can automatically switch between voltage and continuity testing. The single-range goes up to 100V AC and there is also a three-phase rotation test.

When voltage is detected, the DiLOG DL6780’s LED bar graph is illuminated up to the appropriate voltage level and a buzzer sounds to warn the user. The tester has an inbuilt torch and is ruggedly built for use in challenging environments. The tester is covered by a two-year warranty.

DiLOG DLLOC1 Locking Out Kit

The DiLOG DLLOC1 Locking Out Kit allows the user to securely lock out an electrical installation and warn passers-by against re-energising the system. There are accessories including a 38mm steel safety padlock, a universal MCB lockout device, an MCB pins-out (standard) lockout device and a lockout tag.

DiLOG part number: DL6780-LOC1

Kit Contents

  • DiLOG DL6780 Two-Pole Voltage Tester
  • DiLOG DL8101 38mm Steel Safety Padlock
  • DiLOG DL8105 Universal MCB Lockout Device
  • DiLOG DL8106 MCB Pins-Out (Standard) Lockout Device
  • DiLOG DL8130 Lockout Tag

What's In The Box?

  • Dilog DL6780 Two-Pole Voltage Tester
  • Dilog DL8101 38mm Steel Safety Padlock
  • Dilog DL8105 Universal MCB Lockout Device
  • Dilog DL8106 MCB Pins-Out (Standard) Lockout Device
  • Dilog DL8130 Lockout Tag
Specification

Voltage

  • Voltage Display: 12-690 V AC/DC
  • LED resolution: 12, 24, 50, 120, 230, 400, 690V
  • Voltage detection: Automatic
  • Acoustic signal: AC voltage - DC voltage
  • Polarity Detection: Full range
  • Response Time: LED less than 0.1 secs
  • Frequency Range: 0 to 400 Hz
  • Operation time: 30 secs
  • Recovery Time: 10 mins
  • Auto powering on: Less than 12V AC/DC

Single Pole Voltage Indication

  • Voltage Range: 100-690 V AC
  • Frequency Range: 50-400Hz

Continuity

  • Continuity Measuring Range: 0-400Kohm

Phase Rotation Test

  • Voltage range : 100 to 690 V
  • Frequency: 45-65 Hz
  • Over voltage protection : 690 V AC/DC
  • Power supply : 2 x AAA (LR03) Batteries
  • Dimensions: 255 x 70 x 28mm
  • Weight: 210g
