Dilog DL6799 CombiVolt 5 True RMS Electrical Tester

Be the first to review this product

  • Measure AC/DC current from 0 to 200A via fixed jaw clamp
  • Contact AC/DC voltage measurement and non-contact detection
  • Performs other tests including single pole, continuity and capacitance
In Stock
Returns Guarantee

rrp £129.99

now £79.90 (Ex. VAT) £95.88 (Inc. VAT)

rrp £129.99

OR

Please select a free gift below.

Choose Your Free Gift (please tick below)
  • Description

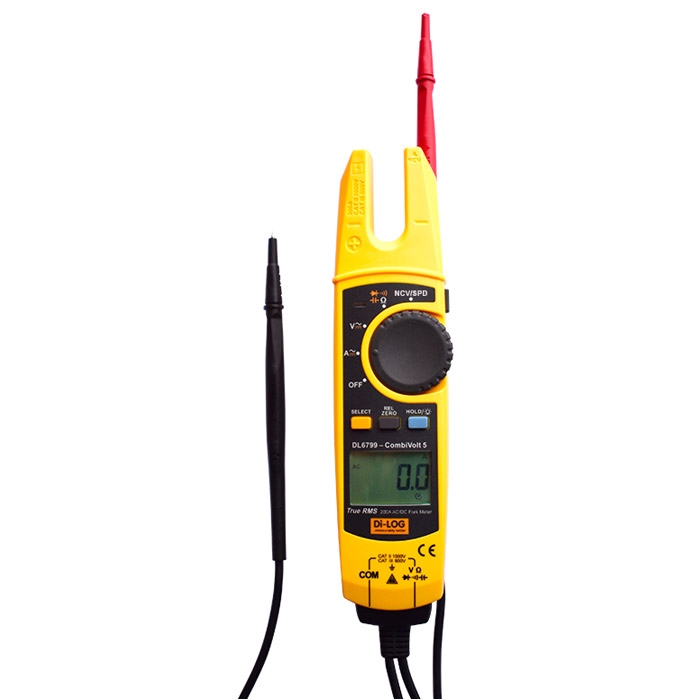

    Dilog DL6799 CombiVolt 5 True RMS Electrical Tester

    The Dilog DL6799 CombiVolt 5 Electrical Tester is a useful instrument that can perform a range of different measurements. It has a fixed jaw clamp that can measure AC/DC current from 0 to 200A whilst the two pole voltage test function can detect AC voltages from 1mV to 750V and DC voltages from 1mV to 1000V. The tester is also capable of performing non-contact and single-pole phase testing in addition to continuity testing, phase rotation testing, capacitance measurement up to 60mF and resistance measurement up to 60MΩ.

    The function is selected using the Dilog DL6799’s clearly labelled dial whilst other aspects are controlled though push buttons. Readings are shown on the tester’s backlit digital display and there is a relative mode as well as data hold which freezes a reading on screen.

    The Dilog DL6799 has an ergonomic design which means it is easy to use with just one hand. Additionally, a bright LED torch is incorporated into the clamp so the user can illuminate the measurement area whenever necessary. The tester has GS38 shrouded probe tips and is rated as Cat II 1000V and Cat III 600V.

    Dilog part number: DL6799

    Key Features

    • Current range: 0 to 200A AC/DC
    • AC voltage range: 0 to 750V
    • DC voltage range: 0 to 1000V
    • Single pole voltage test
    • Non-contact voltage detection
    • Resistance range: 0 to 60MΩ
    • Continuity testing
    • Capacitance range: 0 to 60mF
    • True RMS
    • Integrated LED torch
  • Specification

    • AC Voltage True RMS: 0-750V AC
    • Typical Accuracy: +/- 1.2 % + 3 digits
    • Frequency: 45 - 400Hz
    • DC Voltage: 0 - 1000V DC
    • Typical Accuracy: +/- 0.8 % + 3 digits
    • Single Pole Indication: >100Vrms
    • Non-contact Voltage Detection: >100Vrms Distance <10mm
    • AC Current: 200A
    • Typical Accuracy: +/- 2.5 % + 5 digits
    • Frequency: 50 - 60Hz
    • DC Current: 200A
    • Typical Accuracy: +/- 1.0 % + 2 digits
    • Continuity: 0-600Ω Audible <100Ohms
    • Resistance: 0.1 - 60MΩ
    • Typical Accuracy: Typical Accuracy
    • Capacitance: 60.00nF - 60.00mF
    • Diode: 6.000V
    • Power supply: 2 x 1.5 V (AA) LR06 batteries
    • Dimensions: 210 x 53 x 35 mm
    • Weight: 164g (batteries Included)
  • Supplied Accessories

    • Dilog DL6799 CombiVolt 5 True RMS Electrical Tester
    • Test probes
    • Test leads
    • Soft carry case
