Dilog EKB001 Electrician’s Test Kit Bundle

Be the first to review this product

  • Essential accessories for any electrician
  • Combivolt 2 fully compliant with BS EN 61243:2010
  • Comes with handy, durable carry case
In Stock
Returns Guarantee

rrp £149.99

now £74.99 (Ex. VAT) £89.99 (Inc. VAT)

rrp £149.99


Please select a free gift below.

  • Description

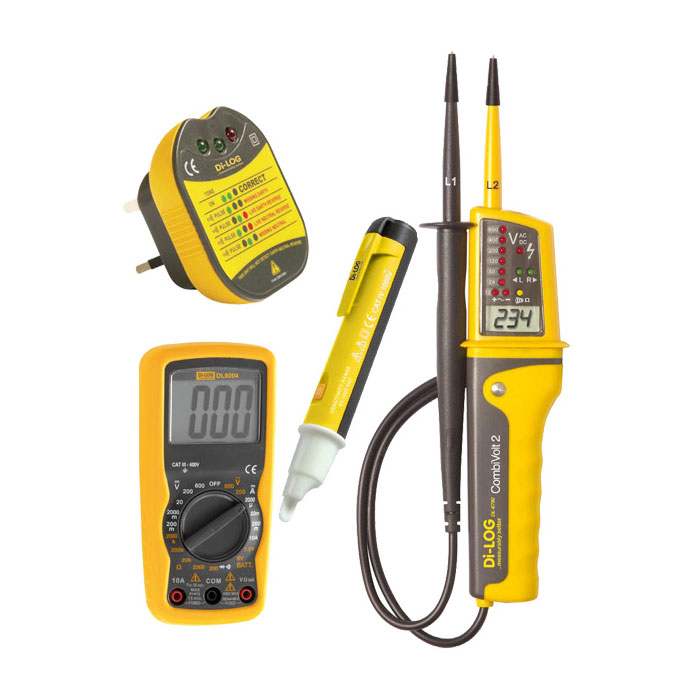

    Dilog EKB001 Electrician’s Test Kit Bundle

    For a limited period this great value kit is available combining Dilog’s great value products in one handy kit, making testing, inspection and fault finding much easier.

    The kit is includes the latest Combivolt 2 Digital Voltage & Continuity Tester, DL9204 Double Moulded Compact Multimeter, PL107N Non-Contact Voltage Indicator, DL1090 Socket Tester, and the CCDL001 Durable Nylon Carry Case.

    All Dilog products are covered by a 24 month warranty.

    Combivolt 2 DL6790 Digital Voltage & Continuity Tester

    The Dilog CombiVolt 2 - Model DL6790 is a voltage & continuity tester with a digital display and LED indication. It also has a single probe voltage indication built into this rugged unit which complies with the latest two-pole tester regulations BS EN 61243:2010.

    The CombiVolt 2 even has a built in torch function and continuity buzzer, both are great features if the light levels are low and you cannot see the display. The Dilog CombiVolt 2 Model DL6790 is fully compliant with GS38 safety notice and it has a rugged hand held casing with a 24 month warranty, making it great in everyday day use for electricians, technicians and maintenance staff.

    The Di-Log DL6790 can indicate voltages even when the batteries are flat or missing.

    Dilog Combivolt 2 Key Features:

    • Testing voltages from 6 to 690V AC and DC
    • Automatic switching between voltage and continuity
    • Continuity testing with audible and visual indications
    • Three Phase Rotation Test
    • Single pole voltage indication up to or equal to 100V AC
    • Fully compliant with GS38 including probe tips
    • 24 month warranty

    DL9204 Double Moulded Compact Multimeter

    The Dilog DL9204 is a compact manual ranging multimeter packed with great features . Manufactured with a tough case to withstand knocks the DL9204 has a 2000 count LCD display with full protection on all ranges and the unit is approved to CATIII 600V.

    DL9204 Key Features:

    • Measures up to 600V AC & DC
    • Maximum DC Current of 10A
    • Resistance range of 0.1Ω to 2000 KΩ
    • Battery and Diode Test

    DL1090 13A Socket Tester

    The DL1090 is a safe and easy to use 13A socket tester giving LED and audible buzzer indication of socket wiring.

    DL1090 Key Featrues:

    • Reliable and easy to use
    • Clear indication of wiring status
    • Audible notification of wiring condition
    • Modern, ergonomic design with unique soft finger grip
    • Meets BS61010 safety standards
    • Vivid LEDs indicate a range of wiring conditions
    • Please Note: This unit will not indicate earth / neutral reverse

    PL107N Non-Contact Voltage Indicator

    The Dilog PL107N allows contact free, audible and visual indication of live cables between 90 – 1000V AC making detection of broken cables, blown fuses and phase detection in sockets quicker and easier than ever.

    CCDL001 Durable Nylon Carry Case with Shoulder Strap

    The resilient case provided with the kit will keep all of your equipment together and in good condition, with the shoulder strap making it easy to carry all your equipment around site.

  • Specification

    Combivolt 2 DL6790 Digital Voltage & Continuity Tester

    • Voltage Display: 6-690 V AC/DC
    • LED resolution: 12, 24, 50, 120, 230, 400, 690V
    • LCD resolution: 1V +/- 3% + 8 digits
    • Voltage detection: Automatic
    • Acoustic signal: AC voltage - DC voltage
    • Polarity Detection: Full range
    • Response Time: LED less than 0.1 secs : LCD less than 2 secs
    • Frequency Range: 0 to 400 Hz
    • Operation time: 30 secs
    • Recovery Time: 10 mins
    • Auto powering on: Less than 12V AC/DC
    • Single Pole Voltage Indication
    • Voltage Range: 100-690 V AC
    • Frequency Range: 50-400Hz
    • Continuity Measuring Range: 0-400Kohm
    • Phase Rotation Test
    • Voltage range : 100 to 690 V
    • Frequency: 45-65 Hz
    • Over voltage protection : 690 V AC/DC
    • Power supply: 2 x AAA (LR03) Batteries
    • Dimensions: 255 x 70 x 28mm
    • Weight: 210g



    DL9204 Double Moulded Compact Multimeter


    • DC Voltage up to 600 Volts
    • AC Voltage up to 600 Volts
    • DC Current up to 10 Amps
    • Resistance up to 2000 K ohm
    • Battery Test 1.5v and 9 volt
    • Diode Test
    • Continuity test with buzzer
    • Auto Power off
    • Data Hold
    • CAT III 600V, EN61010-1
    • 2 year Warranty
    • Dimensions: 150 x 70 x 48mm
    • Weight: 255g



    PL107N Non-Contact Voltage Indicator

    • Indication: 1 LED, buzzer
    • Voltage range: 90 – 1000 V AC
    • Operating temperature: -10° to 50°C
    • Overvoltage category: Cat 111 / 600 V
    • Power supply: 2 x 1.5 V AAA batteries
    • Dimensions: 150 x 22 x 21 mm
    • Weight: 60 g
  • Supplied Accessories

    • Dilog Combivolt 2 Voltage & Continuity Tester
    • Dilog PL107N Volt Detector
    • Dilog DL1090 Socket Tester
    • Dilog DL9204 Digital Multimeter
    • Dilog CCDL001 Carry Bag
