Drummond MTL15 Test Lamp

Be the first to review this product

  • Cat IV 1000V, therefore suitable for supply-side applications
  • Nominal indications at 50V, 230V, 400V, and 690V
  • Clear LED bar graph display, legible from 360˚
(Ex. VAT) £99.00 (Inc. VAT) £118.80
OR

Please select a free gift below.

  • Description

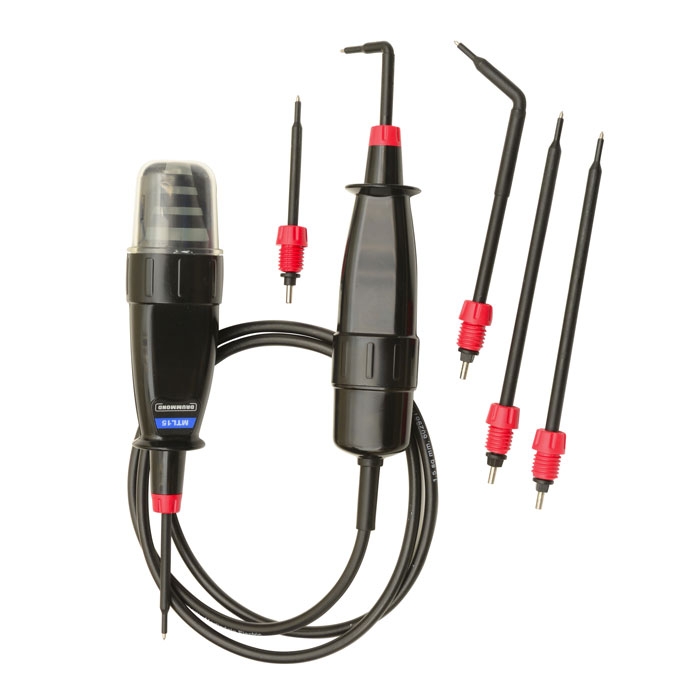

    Drummond MTL15 Test Lamp

    The Drummond MTL15 Test Lamp is a professional voltage detection instrument that can detect voltages up to 1000V DC/AC, offering nominal voltage indications at 50V, 230V, 400V, and 690V AC/DC RMS via a very clear LED bar graph, easily legible from 360˚. The lamp can be used for all supply-side applications thanks to a Cat IV 1000V rating according to BS EN 61010 and it also meets HSE (GS38) guidelines.

    A finger shield and insulated probe tip help protect the fingers from potentially hazardous live conductors and general dual-layered insulation with a white inner layer that highlights any damage. The Drummond MTL15 runs totally from the conductor under test and therefore requires no batteries.

    The Drummond MTL15 comes supplied with six interchangeable test probes including both interchangeable and right-angled test probes. The lamp is ideal for use with high-power applications such as proving dead in wind turbines installations, energy intensive process industries, high-power variable speed drives and UPS systems.

    Drummond part number: DRUMTL15

    Key Features

    • AC/DC voltage detection up to 1000V
    • Nominal indication at 50V, 230V, 400V, 690V RMS
    • Clear LED bar graph legible from 360˚
    • Cat IV 1000V according to BS EN61010
    • Finger protection and insulated tip
    • Suitable for high-power applications
  • Specification

    Maximum Working Voltage

    • 500V AC, 750V DC

    Voltage Ranges

    • 50, 100, 200, 400V AC / DC

    Range Detection

    • Automatic

    Response Time

    • <0.1s

    Frequency Range

    • DC, 0-65Hz

    Test Current (500V AC / DC)

    • <3.5mA

    General Specifications

    • Temperature Range: -10°C to +55°C
    • Measurement Category: CAT IV 600V, CAT III 1000V
    • Pollution Degree: 2
    • Protection Degree: IP64
    • Dimensions: 213 x 112 x 72mm
    • Weight: 320g approx
  • Supplied Accessories

    • Drummond MTL15 Test Lamp
    • 2 straight prods
    • 2 long straight prods
    • 1 long angled prod
    • 1 L-shaped prod
    • Instructions for Drummond MTL15
