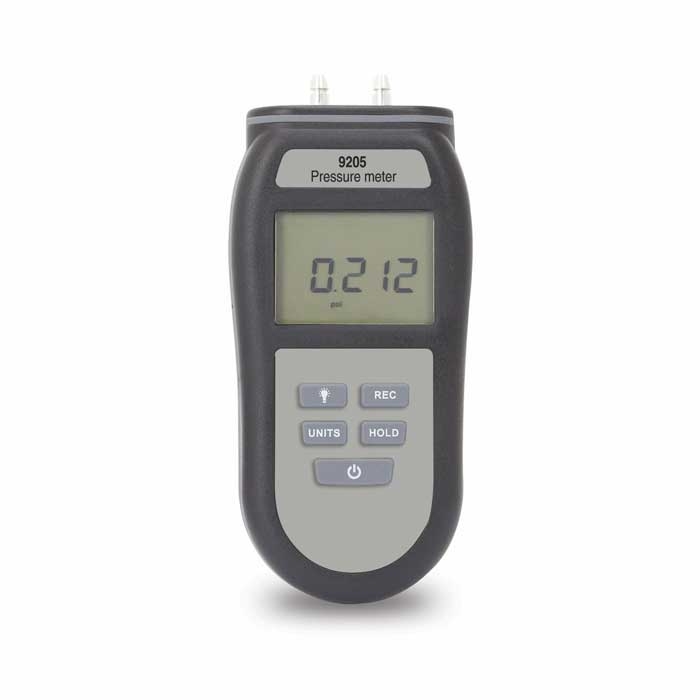

ETI 9205 Differential Manometer

SKU: ETI9205
  • Range of -344mbar to +344mbar with ±0.3% accuracy and 0.1mbar resolution
  • Suitable for gauge or differential pressure measurement in several sectors
  • Strong ABS housing and rubber seal form IP65 rated-casing
More Info
In Stock - Available Next Day

ETI 9205 Differential Manometer

The ETI 9205 Manometer is capable of measuring both positive and negative pressure from -344mbar to +344mbar with accuracy of ±0.3% and resolution of 0.1mbar. This makes it suitable for gauge or differential pressure measurement of air and non-corrosive gases across a wide range of sectors.

A backlit digital screen on the ETI 9205 clearly displays pressures from the first and second hoses as well as differential pressure. The user has a choice of 11 different units of pressure and the manometer also has a display hold feature that freezes a reading on screen as long as necessary. Additionally, there is a min/max recording feature.

The ETI 9205 has tough ABS housing and a rubber seal that mean it is watertight to an IP65 standard. It is supplied with two 500mm hoses and has a 100-hour battery life. The manometer is covered by a two-year warranty.

9200 Series Pressure Meters Comparison table

  ETI 9205 ETI 9215 ETI 9230 ETI 9275
Range & Resolution - psi:

Range: ±5,    Resolution: 0.001

Range: ±15,    Resolution: 0.01

Range: ±30,    Resolution: 0.01

Range: ±75,  Resolution: 0.1

Range & Resolution - inH2O: Range: ±138.4, Resolution: 00.1 Range: ±415.2, Resolution: 0.1 Range: ±830.4, Resolution: 1 Range: ±2076, Resolution: 1
Range & Resolution - mbar: Range: -334.7 to +344.7,          Resolution: 0.1 Range: -1034.2 to +1034.2,          Resolution: 1 Range: -2068.4 to +2068.4,          Resolution: 1 Range: -5171 to +5171,        Resolution: 1
Range & Resolution - kPa: Range: ±34.47, Resolution: 0.01 Range: ±103.4, Resolution: 1 Range: ±206.8, Resolution: 0.1 Range: ±517.1, Resolution: 0.1
Range & Resolution - inHg Range: ±10.18, Resolution: 0.001 Range: ±30.54, Resolution: 0.01 Range: ±61.08, Resolution: 0.01 Range: ±152.7, Resolution: 0.1
Range & Resolution - mmHg: Range: ±258.5, Resolution: 0.1 Range: ±775.7, Resolution: 0.1 Range: ±1551.4, Resolution: 1 Range: ±3879, Resolution: 1
Range & Resolution - ozin2: Range: ±80,      Resolution: 0.01 Range: ±240, Resolution: 0.1 Range: ±480, Resolution: 0.1 Range: ±1200, Resolution: 1
Range & Resolution - ftH2O: Range: ±11.53, Resolution: 0.001 Range: ±34.60, Resolution: 0.01 Range: ±69.20, Resolution: 0.01 Range: ±173.0, Resolution: 0.1
Range & Resolution - cmH2O: Range: ±351.5, Resolution: 0.1 Range: ±1055, Resolution: 1 Range: ±2109, Resolution: 1 Range: ±5273, Resolution: 1
Range & Resolution - kgcm2: Range: ±0.351, Resolution: 0.001 Range: ±1.055, Resolution: 0.001 Range: ±2.109, Resolution: 0.001 Range: ±5.273, Resolution: 0.001
Range & Resolution - bar: Range: ±0.344, Resolution: 0.001 Range: ±1.034, Resolution: 0.001 Range: ±2.068, Resolution: 0.001 Range: ±5.171, Resolution: 0.001
Accuracy ±0.5%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C ±1.0%FS or Better at 25°C
Two 500mm long x 6mm ID connection hoses with batteries
Two 300mm long x 4mm ID hoses with batteries
Specification
  • Range: -344mbar to +344mbar
  • Resolution: 0.1mbar
  • Accuracy: ±0.3% FS (25˚C)
  • Units: psi, inH2O, mbar, kPa, inHg, mmHg, ozin2, ftH2O, cmH2O, kgcm2, bar
  • Repeatability: ±0.2% (Max. 0.5% FS)
  • Battery: 3 x 1.5V AAA
  • Battery life: 100 hours
  • Display: Custom LCD
  • Dimensions: 32mm x 71mm x 141mm
  • Weight: 220g
